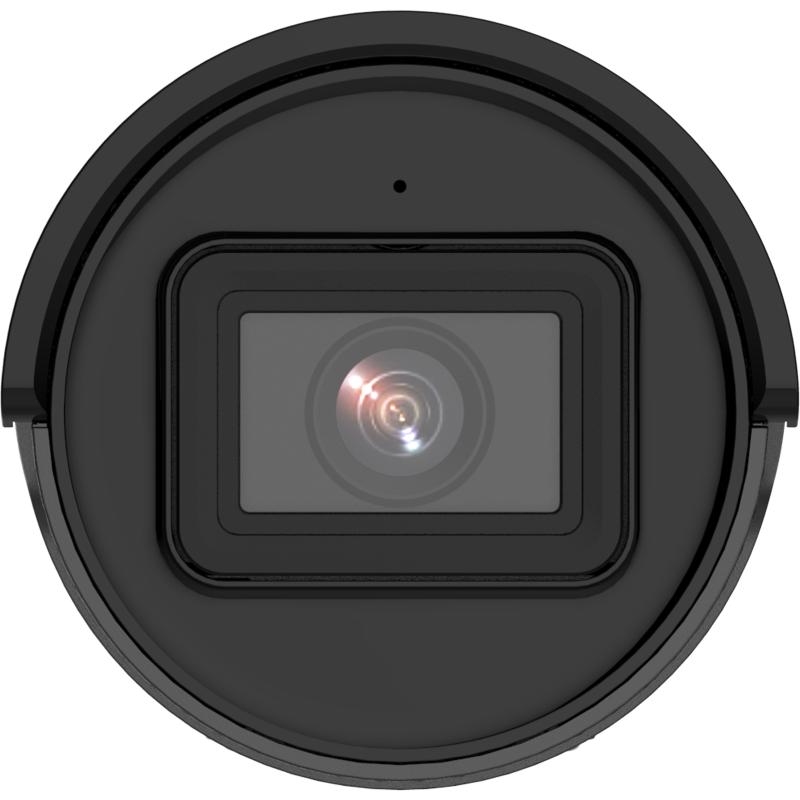

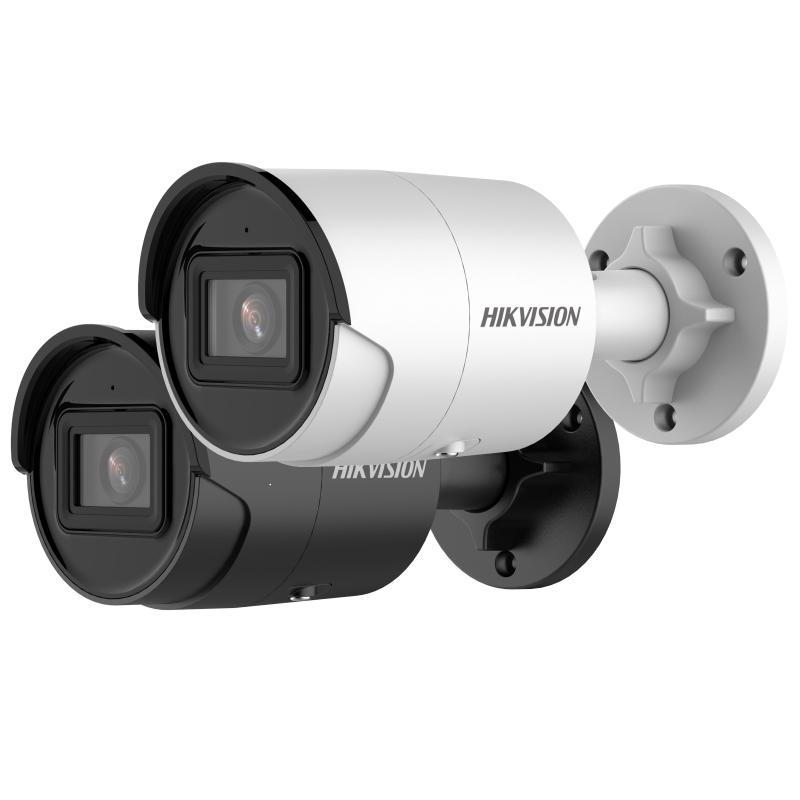

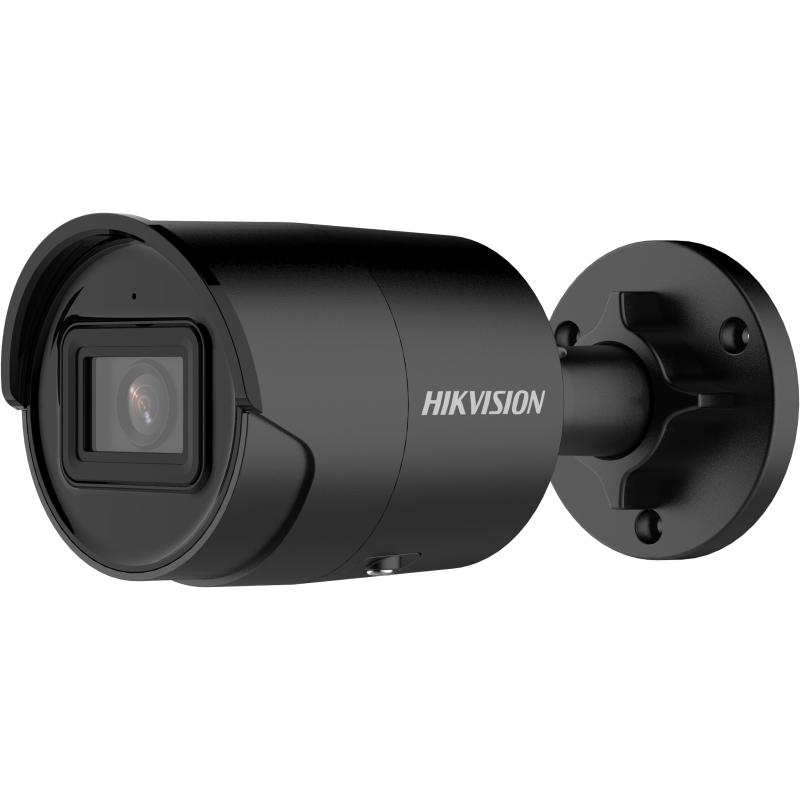

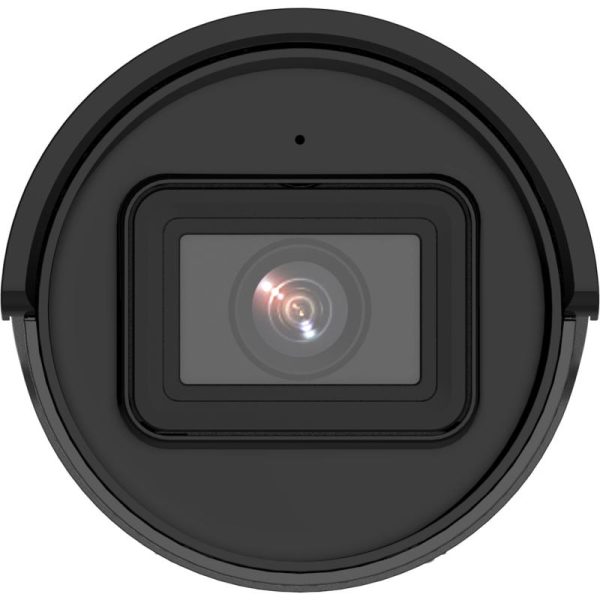

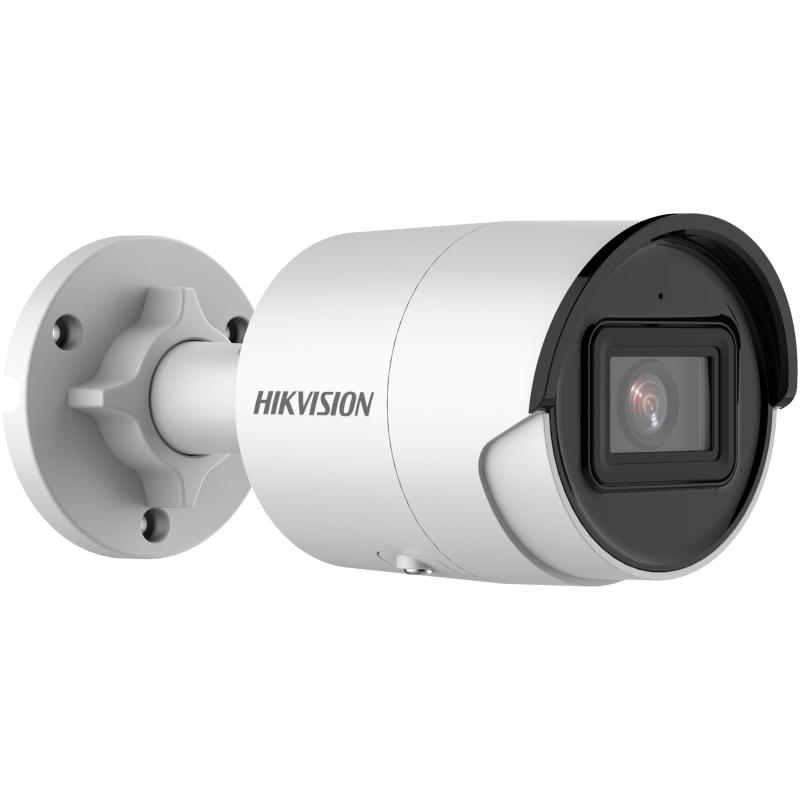

Hikvision DS-2CD2043G2
4 MP AcuSense Fixed Bullet Camera (Built-in Microphone)
Kategori | Spesifikasi |
---|---|
Sensor & Kamera | Sensor: 1/3″ Progressive Scan CMOS Resolusi maks: 2688 × 1520 Min iluminasi: 0.005 Lux (warna, F1.6, AGC ON); 0 Lux (IR aktif) WDR: 120 dB; Day/Night: ICR; Shutter: 1/3 s – 1/100,000 s; Sudut: Pan 0–360°, Tilt 0–90°, Rotate 0–360° :contentReference[oaicite:1]{index=1} |
Lensa & DORI | Pilihan: 2.8 mm (FOV H103° V55° D122°), 4 mm, 6 mm (FOV H52° V28° D61°) DORI (2.8/4/6 mm): Deteksi 67/80/120 m • Observasi 26/31/47 m • Rekognisi 13/16/24 m • Identifikasi 6/8/12 m :contentReference[oaicite:2]{index=2} |
Pencahayaan | EXIR IR hingga 40 m dengan Smart IR :contentReference[oaicite:3]{index=3} |
Video & Kompresi | Kompresi: H.265+/H.265/H.264+/H.264/MJPEG Frame rate: hingga 25/30 fps (berdasarkan regional) :contentReference[oaicite:4]{index=4} |
Audio | Built-in Microphone; codec komunikasi audio tersedia :contentReference[oaicite:5]{index=5} |
Jaringan & Penyimpanan | ONVIF (S/T/G), RTSP, TCP/IP, DHCP, DNS, NTP, HTTP, FTP, SMTP, UPnP, SNMP, SSL/TLS, dan lainnya; Slot microSD hingga 512 GB :contentReference[oaicite:6]{index=6} |
Fitur AcuSense | Deteksi manusia & kendaraan (Deep learning), anti-tampering, privacy mask, heartbeat, anti-banding :contentReference[oaicite:7]{index=7} |
Daya & Interface | DC 12 V (~6 W) atau PoE 802.3af Class 3 (~7 W); RJ45 (10/100 Mbps) :contentReference[oaicite:8]{index=8} |
Dimensi & Berat | Ø 70 mm × 161.7 mm; Berat: ≈ 490 g / 724 g dengan kemasan; Proteksi: IP67; Suhu operasi –30 °C hingga +60 °C :contentReference[oaicite:9]{index=9} |
Lainnya | Tersedia layanan cloud Hik-Connect, fitur reset e-mail, anti-flicker, multi-bahasa (33 bahasa) :contentReference[oaicite:10]{index=10} |
