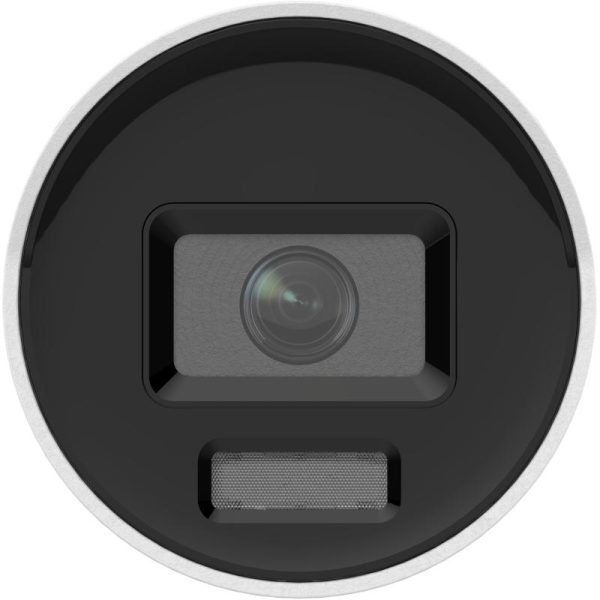

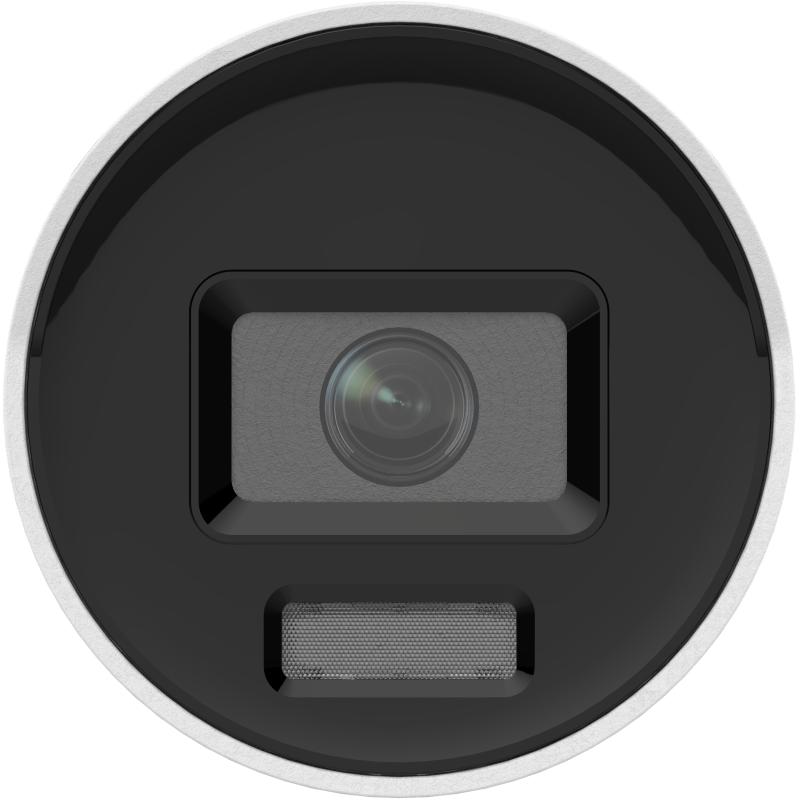

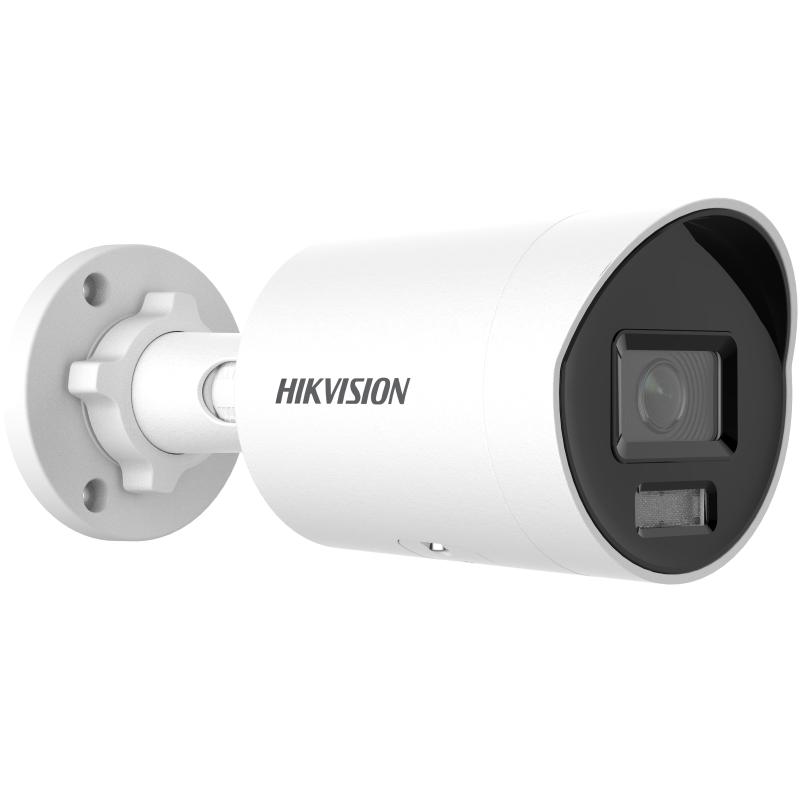

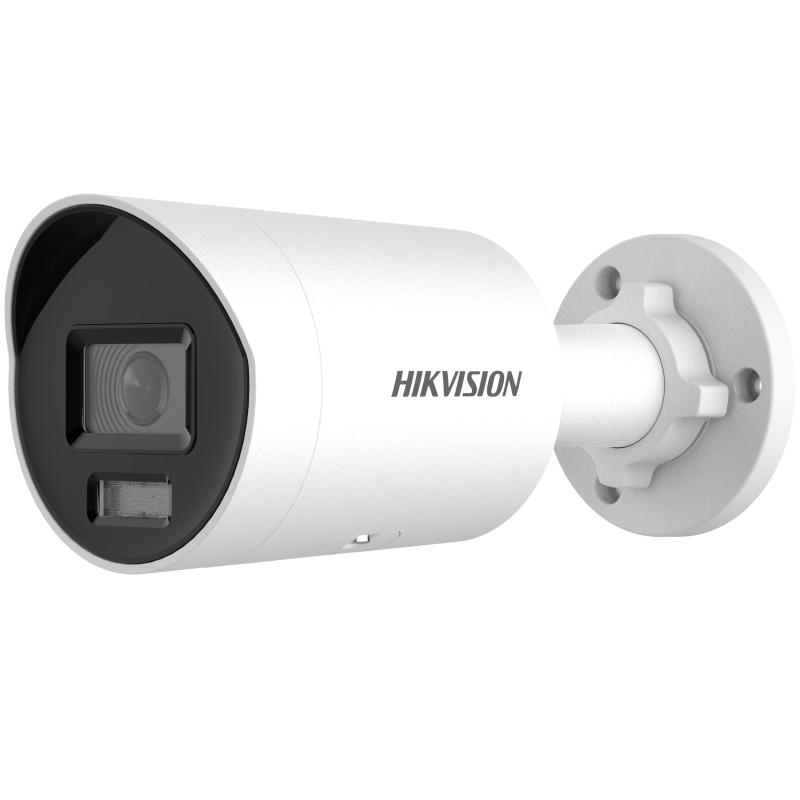

Hikvision DS-2CD2047G2H-LI/LIU
4 MP Smart Hybrid Light ColorVu Bullet Network Camera (Built-in Mic)
| Kategori | Detail |
|---|---|
| Sensor & Gambar | Sensor: 1/1.8″ Progressive-Scan CMOS Resolusi: 2688 × 1520 (4 MP) Min. Illuminasi: 0.0005 Lux (warna), 0 Lux (dengan cahaya) Shutter: 1/3 s – 1/100 000 s WDR: 130 dB Smart Hybrid Light Day/Night: ICR (IR cut filter) Sudut adjustment: Pan 0–360°, Tilt 0–90°, Rotate 0–360° |
| Lensa & Pencahayaan | Lensa tetap 2.8 mm atau 4 mm (F1.0 super-aperture) Smart Hybrid Light: kombinasi lampu putih & IR pintar, hingga 40 m |
| DORI | Wide: Deteksi 89 m • Observasi 35 m • Rekognisi 17 m • Identifikasi 8 m |
| Video & Kompresi | Kompresi: H.265+, H.265, H.264+, H.264, MJPEG Mendukung hingga 3 stream; Bitrate 32 kbps – 16 Mbps; ROI 1 zona |
| Audio & Alarm | Codec audio: G.711, G.726, MP2L2, MP3, AAC-LC (16–320 kbps) Built-in microphone + Speaker (0.8 W) Alarm: Input/output tersedia |
| AI & Perimeter | AI Smart: klasifikasi manusia & kendaraan VCA: Line Crossing, Intrusion, Region Entrance/Exit |
| Jaringan & Penyimpanan | Ethernet: RJ45 10/100 Mbps Penyimpanan: microSD hingga 512 GB, NAS & ANR Platform: iVMS-4200, Hik-Connect, Hik-Central |
| Keamanan & Protokol | Keamanan: HTTPS, TLS, IP filter, audit log, watermark, autentikasi WSSE/HTTP Protokol: ONVIF S/G/T, ISAPI, SDK, RTSP, FTP, SNMP, IPv6, dsb. |
| Imaging Enhancements | Pengaturan: Rotate, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance Fitur: BLC, HLC, 3D DNR, Privacy Mask (4 zona) |
| Fisik & Lingkungan | Dimensi: Ø74.4 × 179.2 mm Berat: ± 525 g Proteksi: IP67 (tahan air/debu) Suhu operasi: –30 °C hingga +60 °C, RH ≤ 95% |
| Power | Daya: 12 V DC atau PoE (802.3af) • Konsumsi rendah |
| Sertifikasi | EMC & safety: CE-EMC, FCC, RCM, IC; UL/IEC 62368-1; Lingkungan: CE-RoHS, WEEE |
