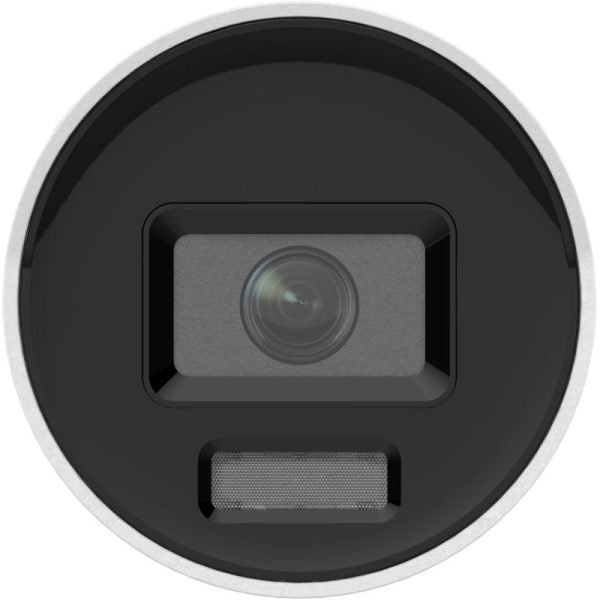

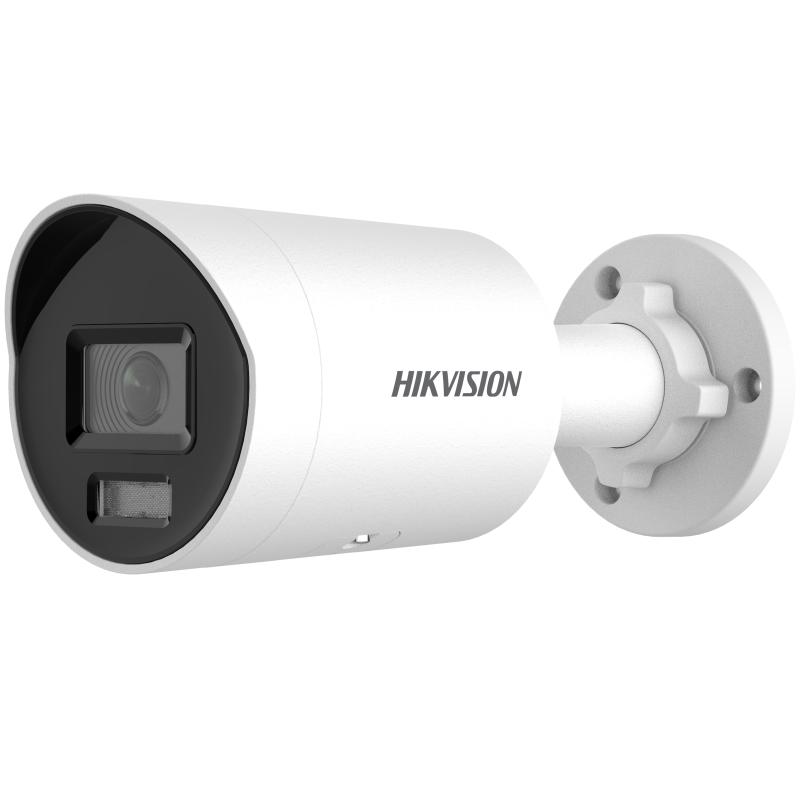

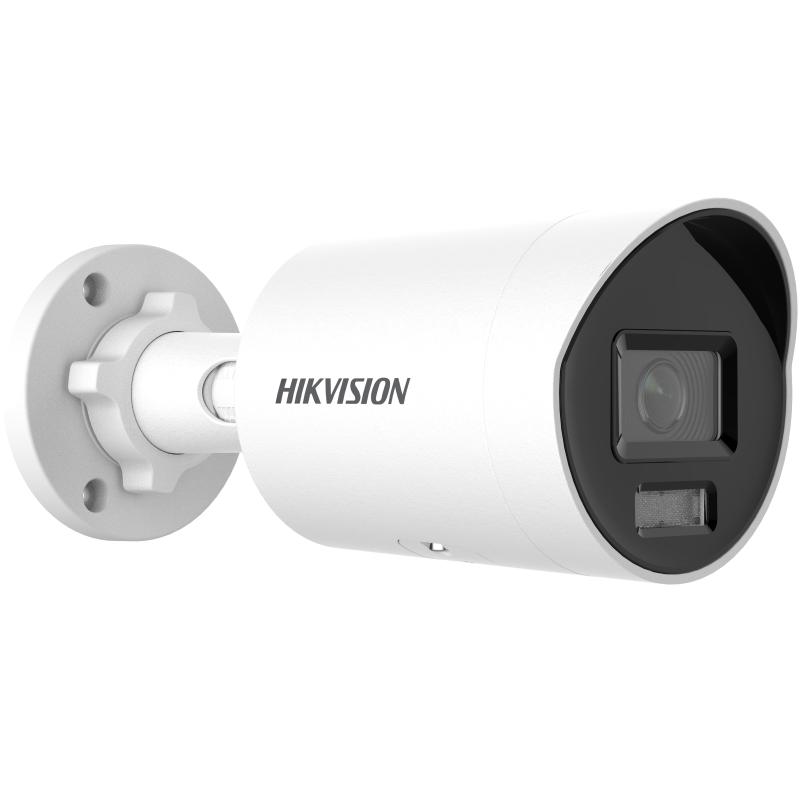

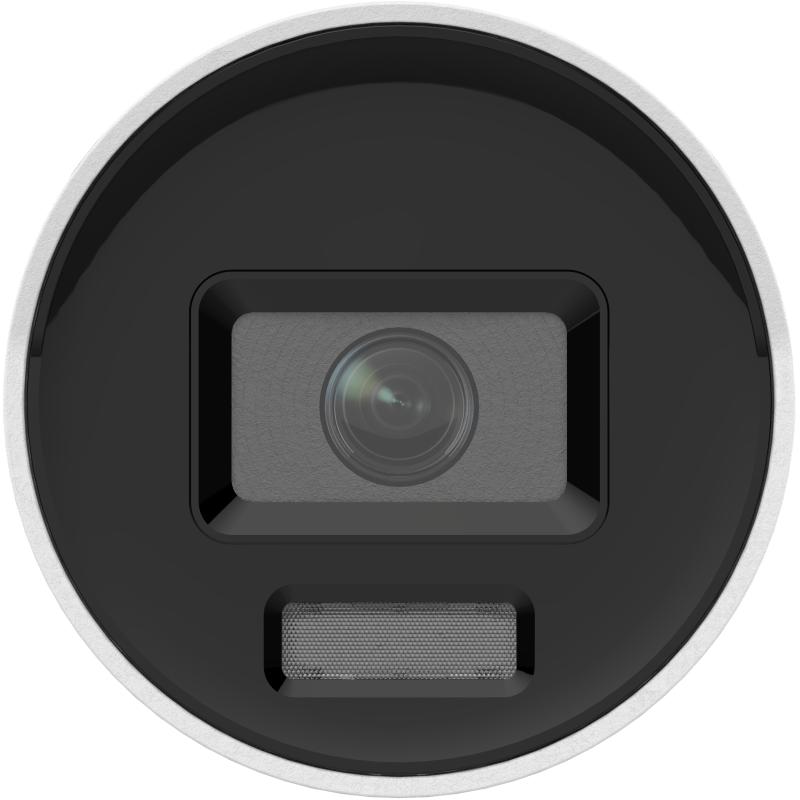

Hikvision DS-2CD2086G2H
8 MP AcuSense Fixed Mini Bullet Network Camera with Built-in Microphone
| Kategori | Detail |
|---|---|
| Kamera & Sensor | Sensor: 1/1.8″ Progressive Scan CMOS Resolusi Maksimal: 3840 × 2160 (8 MP) @ 25 fps Shutter: 1/3 s – 1/100,000 s Day/Night: IR cut filter (ICR) Penyesuaian: Pan 0–360°, Tilt 0–90°, Rotate 0–360° |
| Pencahayaan & Video | Minimum iluminasi: Color 0.0008 Lux @ F1.0 (AGC ON), 0 Lux (IR ON) Kompresi: H.265+, H.265, H.264+, H.264, MJPEG WDR 120 dB • 3D DNR • BLC • ROI Bitrate: 32 Kbps–8 Mbps • Hingga 3 stream simultan |
| IR & Audio | EXIR IR 850 nm hingga 40 m (Smart IR) Audio: Mikrofon internal bawaan (Built-in Mic) |
| Analitik & AcuSense | Deteksi: Line crossing, intrusion, region entrance/exit Human/Vehicle Classification Alarm Event linkage: Rekam ke SD/NAS, upload FTP/Email, snapshot, notifikasi |
| Jaringan & Keamanan | Antarmuka: 1 × RJ45 10/100 Mbps Protokol: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket ONVIF (Profile S/G/T), ISAPI, SDK Keamanan: HTTPS/TLS, IP filter, kata sandi kuat, audit log |
| Penyimpanan | microSD/SDHC/SDXC hingga 256 GB NAS (NFS/SMB) • ANR dengan NVR kompatibel |
| Daya & Proteksi | 12 VDC ±25% (max 6.5 W) • PoE 802.3af Class 3 (max 8 W) Proteksi: IP67 tahan cuaca |
| Dimensi & Lingkungan | Dimensi kamera: 72.9 × 73.3 × 191.1 mm Berat: ± 595 g (netto), ± 810 g (kemasan) Suhu kerja: –30 °C hingga +60 °C • Kelembapan ≤ 95% non-kondensasi |
| Sertifikasi | EMC: FCC, CE-EMC, RCM, KC Safety: UL, CB, CE-LVD Lingkungan: RoHS, WEEE, Reach |
