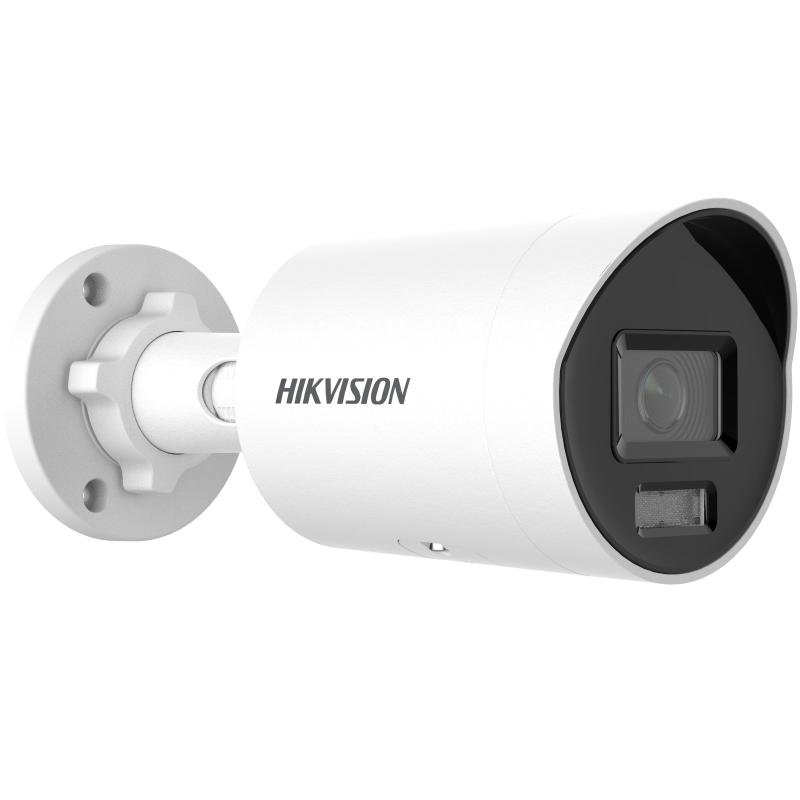

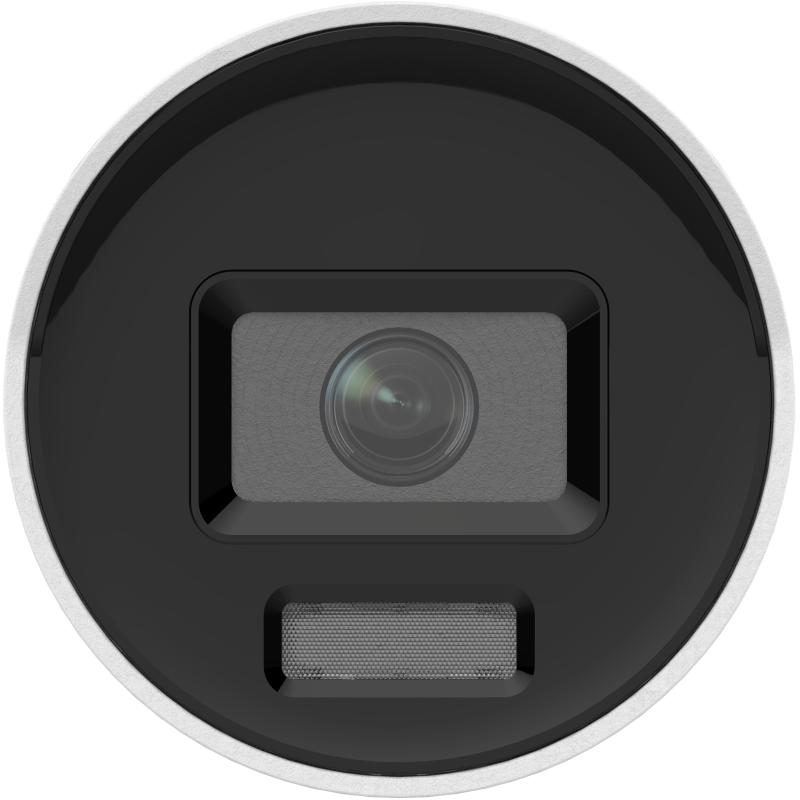

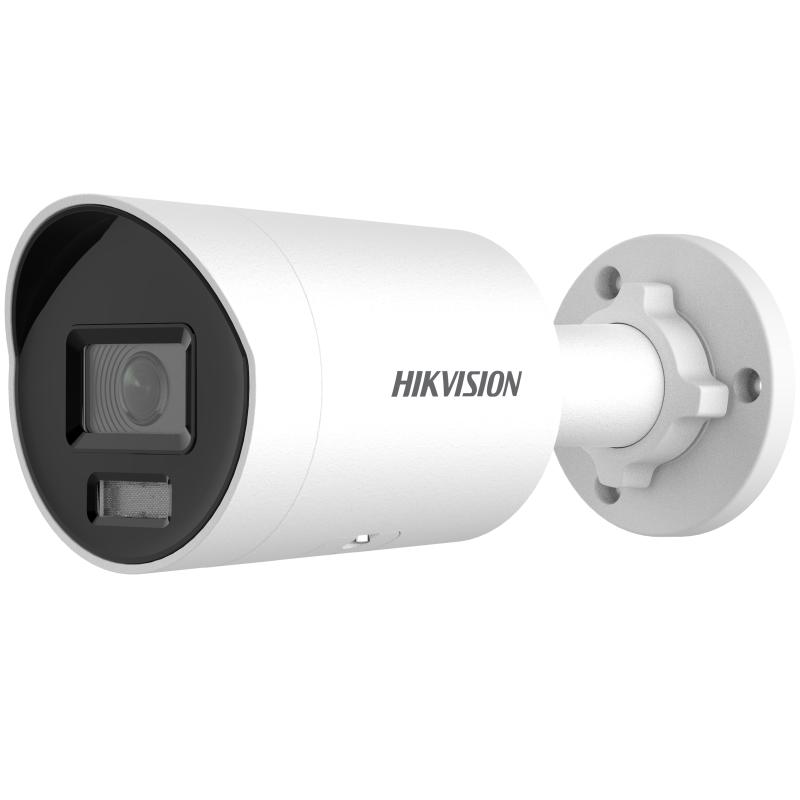

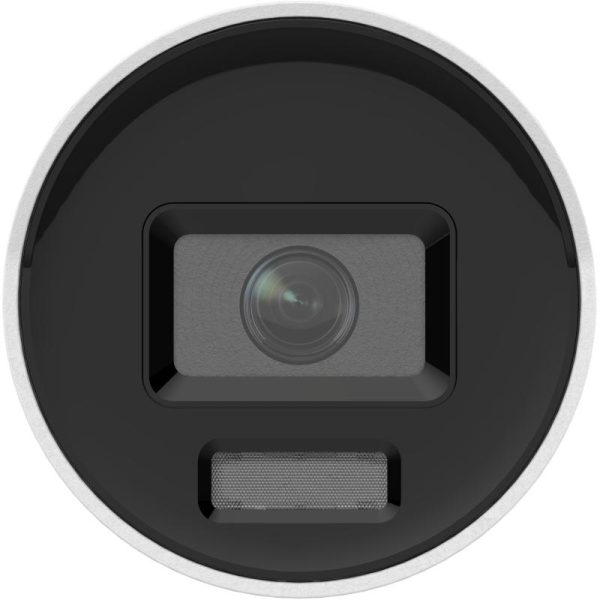

Hikvision DS-2CD2087G2H-LI/LIU
8 MP Smart Hybrid Light ColorVu Bullet Network Camera (Built-in Microphone)
| Kategori | Detail |
|---|---|
| Sensor & Gambar | Sensor: 1/1.8″ Progressive-Scan CMOS Resolusi Maks: 3840 × 2160 (8 MP) Pencahayaan minimum: 0.0005 Lux (warna), 0 Lux dengan lampu Shutter: 1/3 s – 1/100 000 s WDR: 130 dB (Smart Hybrid Light) + Mode hari/malam ICR Sudut penyesuaian: Pan 0–360°, Tilt 0–90°, Rotate 0–360° |
| Lensa & Pencahayaan | Lensa tetap: 2.8 mm atau 4 mm (F1.0 super-aperture) Smart Hybrid Light: kombinasi lampu putih & IR pintar, jangkauan hingga 40 m |
| DORI | Wide: Deteksi 89 m • Observasi 35 m • Rekognisi 17 m • Identifikasi 8 m |
| Video & Kompresi | Kompresi: H.265+, H.265, H.264+, H.264, MJPEG Dukungan hingga 3 stream; Bitrate 32 kbps – 16 Mbps; ROI 1 zona |
| Audio & Alarm | Audio codec: G.711, G.726, MP2L2, MP3, AAC-LC – Bitrate 16–320 kbps Built-in microphone Alarm I/O: 1 input, 1 output |
| AI & Perimeter | Deep Learning: klasifikasi manusia & kendaraan VCA: Line Crossing, Intrusion, Region Entrance/Exit |
| Jaringan & Penyimpanan | Ethernet: RJ45 10/100 Mbps MicroSD slot hingga 512 GB, NAS & ANR supported Platform: iVMS-4200, Hik-Connect, Hik-Central |
| Keamanan & Protokol | Keamanan kuat: HTTPS, TLS, IP filter, audit log, watermark, autentikasi WSSE/HTTP Dukungan protokol lengkap dan ONVIF (S/G/T) |
| Imaging Enhancements | Pengaturan: Rotate, Saturation, Brightness, Contrast, Sharpness, Gain, White balance Fitur: BLC, HLC, 3D DNR, Privacy Mask (4 zona) |
| Fisik & Lingkungan | Dimensi: Ø74.4 × 179.2 mm Berat: ± 525 g Perlindungan: IP67 (anti air/debu) Suhu operasi: –30 °C hingga +60 °C, RH ≤ 95% |
| Daya | Power: 12 V DC atau PoE |
| Standar & Sertifikasi | EMC: CE-EMC, FCC, RCM, IC Safety: UL, IEC 62368-1, CE-LVD Environment: CE-RoHS, WEEE |
