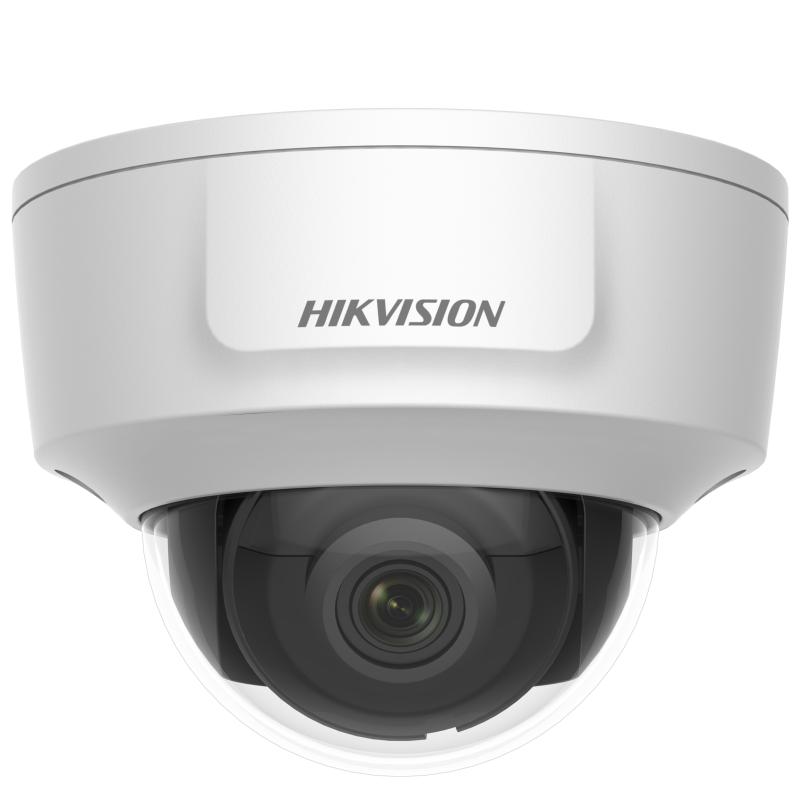

Hikvision DS-2CD2126G2-IMS
2 MP AcuSense HDMI Fixed Dome Network Camera
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 1/2.8″ Progressive Scan CMOS Resolusi: 1920×1080 @ 25/30 fps Kompresi: H.265+/H.265/H.264+/H.264/MJPEG WDR: 120 dB True WDR, 3D DNR, BLC, ICR (Day/Night), DarkFighter low-light HDMI Live Output: 1080p langsung ke layar |
| Lensa & Sudut Pandang | Fixed lens: 2.8 mm FOV: H 106° • V 52° • D 129° DORI: Deteksi 44 m • Observasi 17 m • Rekognisi 8 m • Identifikasi 4 m |
| IR & Penerangan | IR range hingga 30 m (Smart IR), 850 nm |
| Analitik & Streaming | Triple stream: Main, sub, third-stream ROI support, DORI, AcuSense human/vehicle detection (deep learning) |
| Audio & Event | Mono audio, noise filter, audio compression (G.711, dll.) Smart events: line crossing, intrusion, tampering, dll. |
| Jaringan & Keamanan | ONVIF, ISAPI, CGI support Keamanan: HTTPS, 802.1X, TLS 1.3, IP/MAC filter, watermark |
| Daya & Penyimpanan | 12 V DC (≤ 4.8 W) • PoE IEEE 802.3af (≤ 6.4 W) microSD slot (kapasitas tinggi), NAS, ANR |
| Dimensi & Berat | Ø 119 × 90 mm Berat: ≈ 440 g (tanpa bracket), ≈ 720 g (paket) |
| Proteksi & Build | Full metal housing • IK10 vandal proof • IP67 weather-resistant |
| Lingkungan & Umum | Operasi: –10 °C hingga +40 °C, ≤ 95% RH non-condensing Fitur: heartbeat, mirror, password reset (via email), anti-banding, pixel counter, flash log |
| Sertifikasi | CE-EMC, CE-LVD, RCM, IC, KC, CB, RoHS, WEEE, REACH compliance |
