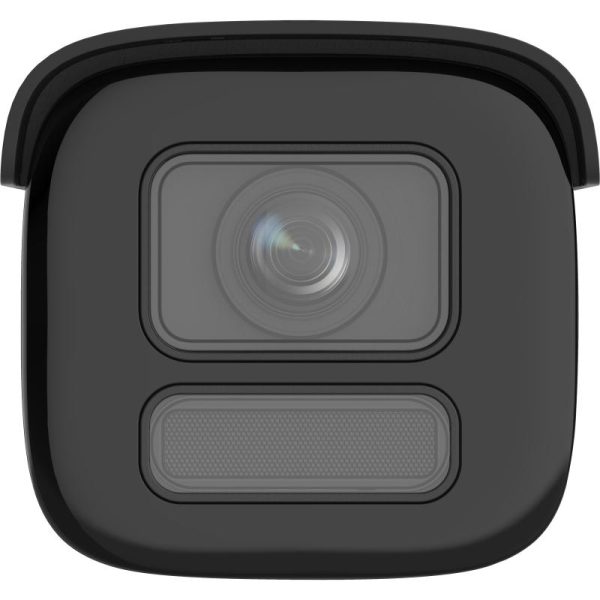

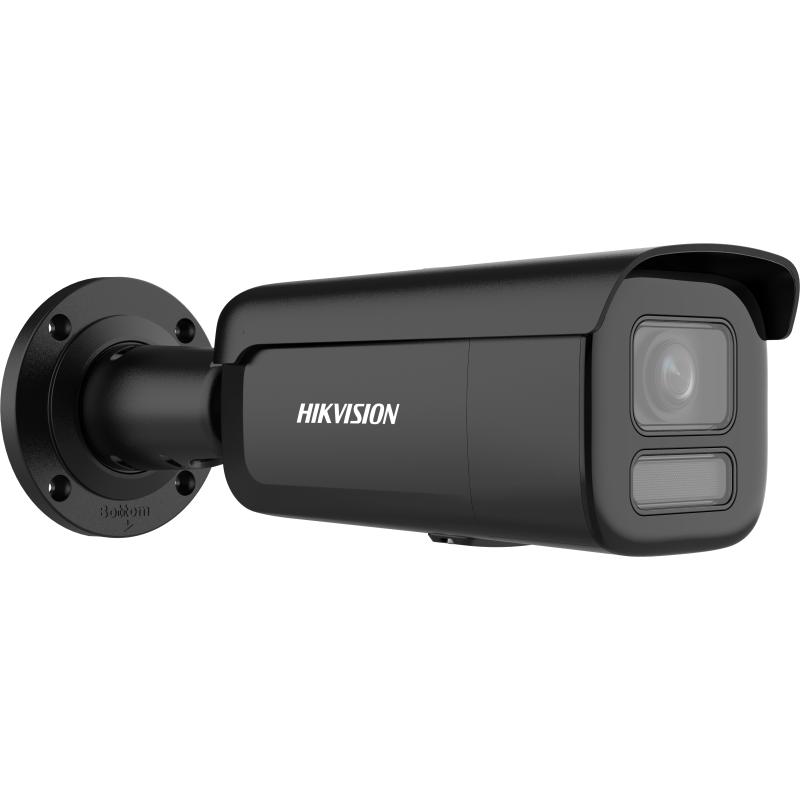

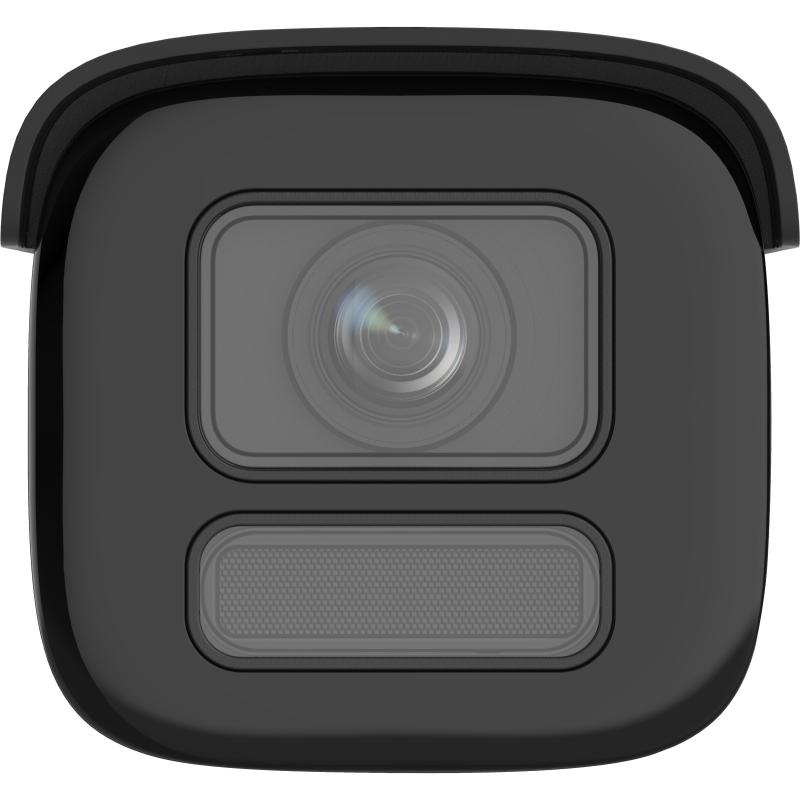

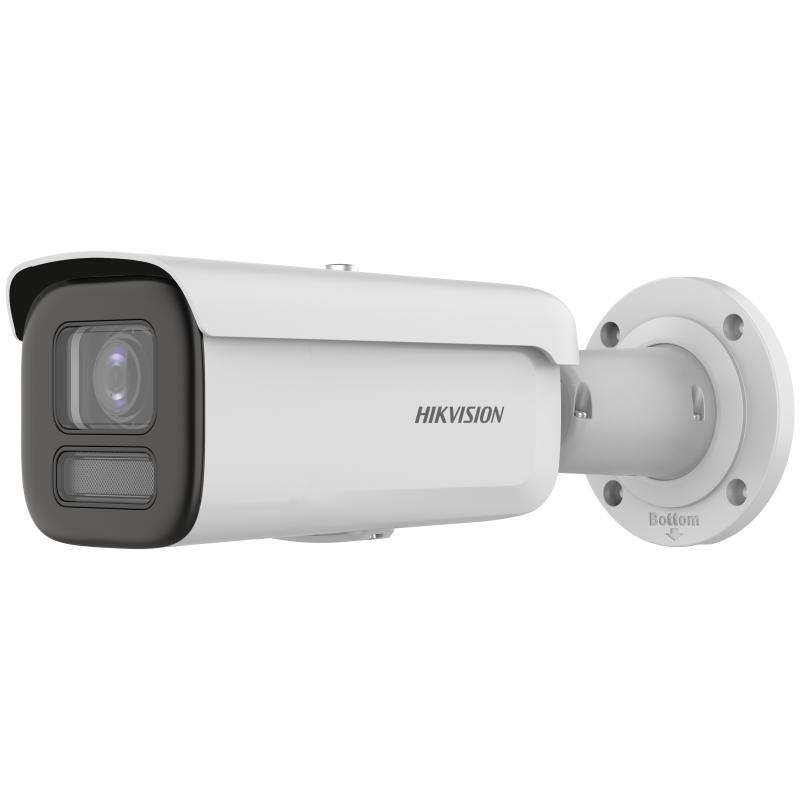

Hikvision DS-2CD2647G2HT-LIZS
4 MP Smart Hybrid Light Motorized Varifocal Bullet Camera with ColorVu
| Kategori | Detail |
|---|---|
| Kamera | Sensor: 1/1.8″ Progressive Scan CMOS Resolusi maks: 2688 × 1520 (4 MP) Min. illuminasi: 0.0008 Lux @ F1.2 (warna) • 0 Lux dengan lampu Shutter: 1/3 s – 1/100 000 s; Day/Night (ICR) |
| Lensa & Sudut Pandang | Varifocal motorized: 2.8–12 mm; Aperture F1.2 Sudut pandang: H: 114.6° – 41.8°; V: 59.3° – 23.6°; D: 141.3° – 48.1° |
| DORI | Wide: Deteksi 60 m • Observasi 23.8 m • Rekognisi 12 m • Identifikasi 6 m Tele: Deteksi 149 m • Observasi 59.1 m • Rekognisi 29.8 m • Identifikasi 14.9 m |
| Pencahayaan Tambahan | Smart Hybrid Light: IR + white light • Jangkauan hingga 60 m • IR 850 nm |
| Video & Kompresi | Main stream: 25 fps (50 Hz) / 30 fps (60 Hz) @ 2688×1520, HD, VGA Sub-stream: 25/30 fps @ HD/VGA/QVGA Third stream: 10 fps @ bebagai resolusi (tergantung setting) Kompresi: H.265+/H.265/H.264+/H.264/MJPEG; Bitrate: 32 Kbps–8 Mbps; ROI 1 area |
| Audio | Kompresi: G.711u/G.711a/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Bitrate bervariasi |
| Jaringan | TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket(s), SRTP, SFTP ONVIF S/G/T, NAS (NFS, SMB/CIFS), ANR; Client: iVMS-4200, Hik-Connect, Hik-Central |
| Pemrosesan Gambar | Rotate, saturasi, brightness, contrast, sharpness, gain, white balance Day/Night/Auto/Schedule • BLC, HLC, 3D DNR, WDR 130 dB; SNR ≥ 52 dB; Privacy mask: 4 polygon |
| Antarmuka & Penyimpanan | 1 × RJ45 10/100 M; microSD slot up to 512 GB; Reset key |
| Event & AI | Basic: Motion (human/vehicle), tampering, exception; Link: upload, notify, record, capture, email, alarm output; Smart event: scene change AI: Face capture; Perimeter protection: line crossing, intrusion, region entering/exiting; Human/vehicle classification |
| Daya & Lingkungan | Power: 12 VDC ±25% or PoE 802.3af; Material: metal body; Operating: −30 °C to 60 °C; Humidity ≤ 95% non-condensing; Protection: IP67, vandal IK10 |
| Umum & Sertifikasi | Heartbeat, mirror, password-reset email, anti-banding; Language: 33 bahasa; EMC and safety certifications per Hikvision standard; IP67 & IK10 rating |
| Model | DS-2CD2647G2HT-LIZS (2.8–12 mm motorized varifocal) |
