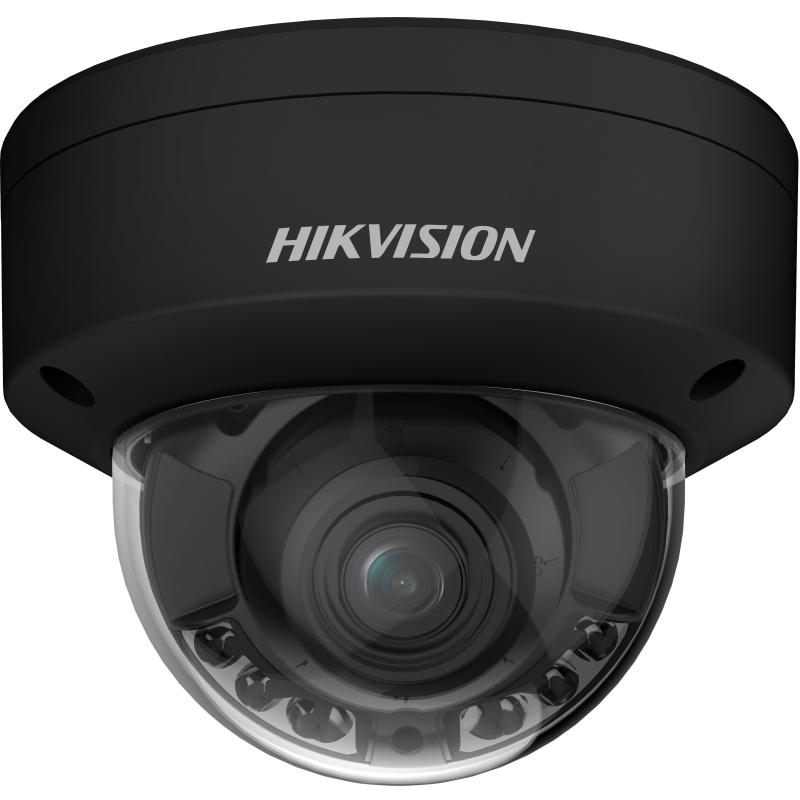

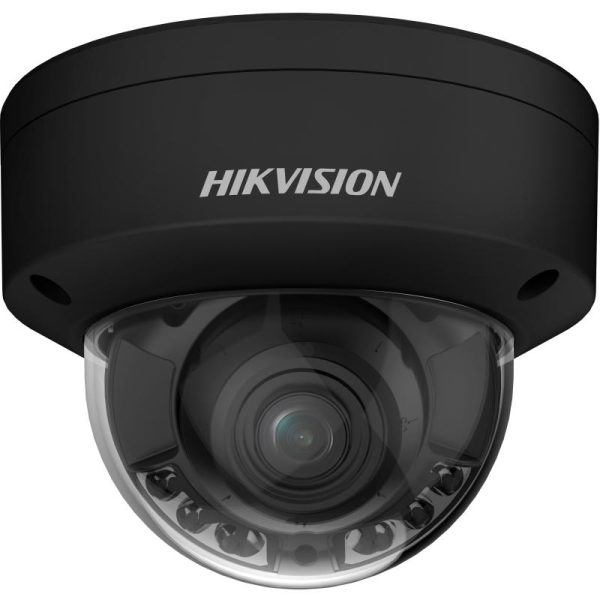

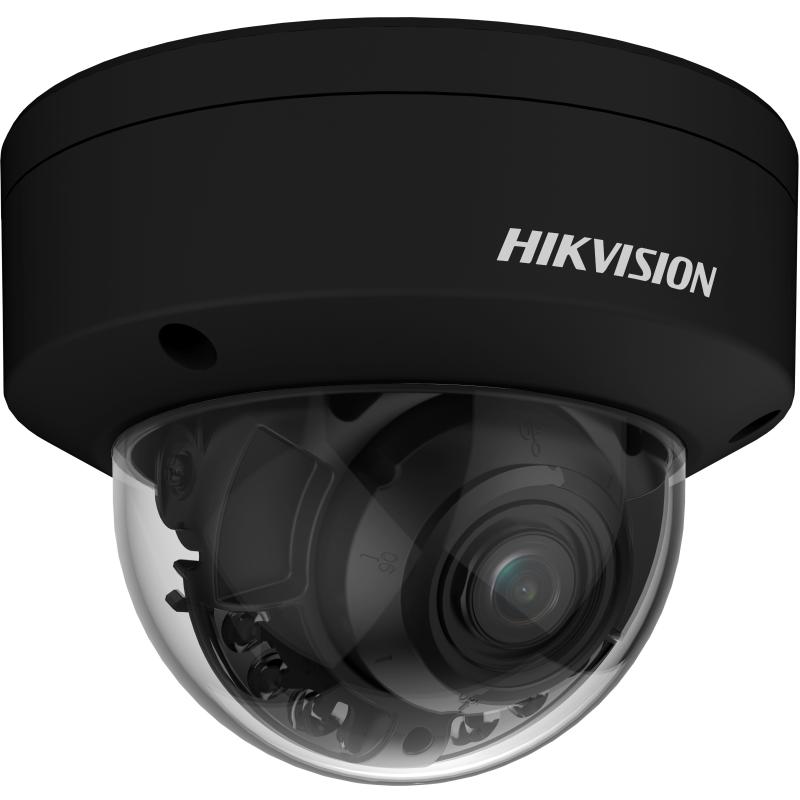

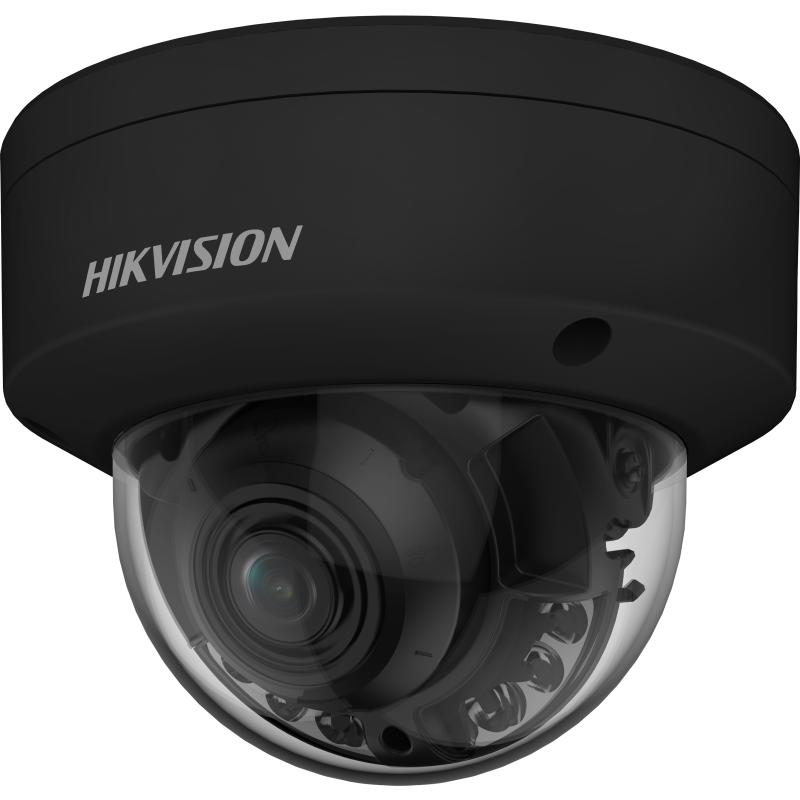

Hikvision DS-2CD2747G2HT-LIZS
4 MP Smart Hybrid Light Varifocal Dome Camera dengan ColorVu
| Kategori | Detail |
|---|---|
| Kamera | Sensor: 1/1.8″ Progressive Scan CMOS Resolusi maks: 2688 × 1520 (4 MP) Frame rate: 25/30 fps @ 2688×1520, 1920×1080, 1280×720 (60 Hz: 24 fps @ 2688×1520; 30 fps @ 1080p/720p) Min. illuminasi: 0.0008 Lux @ F1.2 (warna, AGC ON) • 0 Lux dengan lampu Shutter: 1/3 s – 1/100,000 s • Day/Night: IR-cut filter (ICR) |
| Lensa & Sudut Pandang | Varifocal motorized: 2.8 – 12 mm (autofocus) Aperture: F1.2 • Mount: φ14 FOV (2.8 mm): H 105° • V 55° • D 125° FOV (12 mm): H 33° • V 18° • D 39° |
| DORI | 2.8 mm: Deteksi 89 m • Observasi 35 m • Rekognisi 18 m • Identifikasi 9 m 12 mm: Deteksi 274 m • Observasi 109 m • Rekognisi 55 m • Identifikasi 27 m |
| Pencahayaan Tambahan | Smart Hybrid Light: IR + Warm LED (3000K) Jarak IR hingga 40 m • Panjang gelombang IR: 850 nm |
| Video & Kompresi | Main stream: hingga 25/30 fps @ 4 MP Sub-stream: hingga 25/30 fps @ 1280×720, 640×480, 640×360 Third stream: hingga 10 fps @ 1920×1080, 1280×720, 640×480, 640×360 Kompresi: H.265+/H.265/H.264+/H.264/MJPEG • Bitrate 32 Kbps – 16 Mbps ROI: 1 area (main & sub stream) |
| Jaringan & Protokol | TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket(s), SRTP, SFTP API: ONVIF Profile S/G/T, ISAPI, SDK Penyimpanan jaringan: NAS (NFS, SMB/CIFS), ANR Client: iVMS-4200, Hik-Connect, Hik-Central |
| Pemrosesan Gambar | Pengaturan: rotate, saturasi, brightness, contrast, sharpness, gain, white balance Mode: Day/Night/Auto/Schedule Peningkatan: BLC, HLC, 3D DNR, WDR 130 dB SNR ≥ 52 dB • Privacy mask hingga 4 polygon |
| Antarmuka & Penyimpanan | 1 × RJ45 10/100M Ethernet Slot microSD/SDHC/SDXC hingga 512 GB Tombol reset tersedia |
| Event & AI | Event dasar: Motion (filter manusia/kendaraan), video tampering, exception Smart event: Scene change detection Deep Learning: Face capture • Perimeter Protection (Line crossing, Intrusion, Region entrance/exiting) • Human/Vehicle Classification alarm |
| Daya, Lingkungan & Dimensi | Daya: 12 VDC ±25% (maks 9.5 W) • PoE 802.3af Class 3 (maks 10.5 W) Material: metal housing (dome + bracket) • Proteksi: IP67, IK10 Suhu operasi: −30 °C s/d 60 °C • RH ≤ 95% (non-kondensasi) Dimensi kamera: Ø141 mm × 112 mm • Berat bersih ≈ 820 g • Berat kotor ≈ 1200 g |
| Model Tersedia | DS-2CD2747G2HT-LIZS (2.8–12 mm, motorized varifocal dome) |
