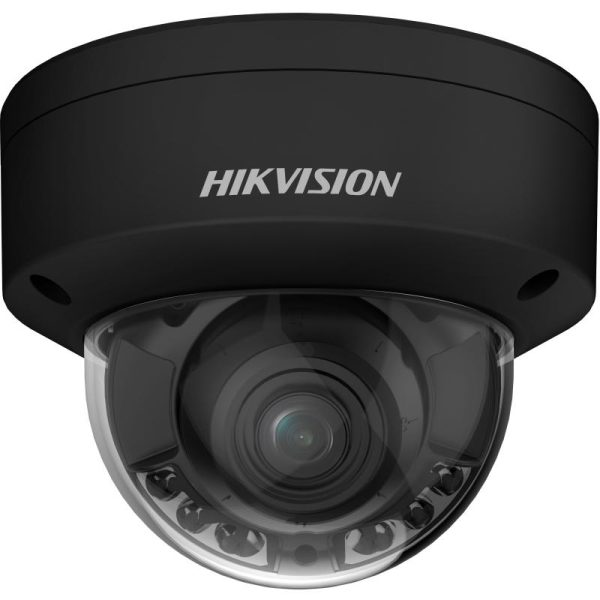

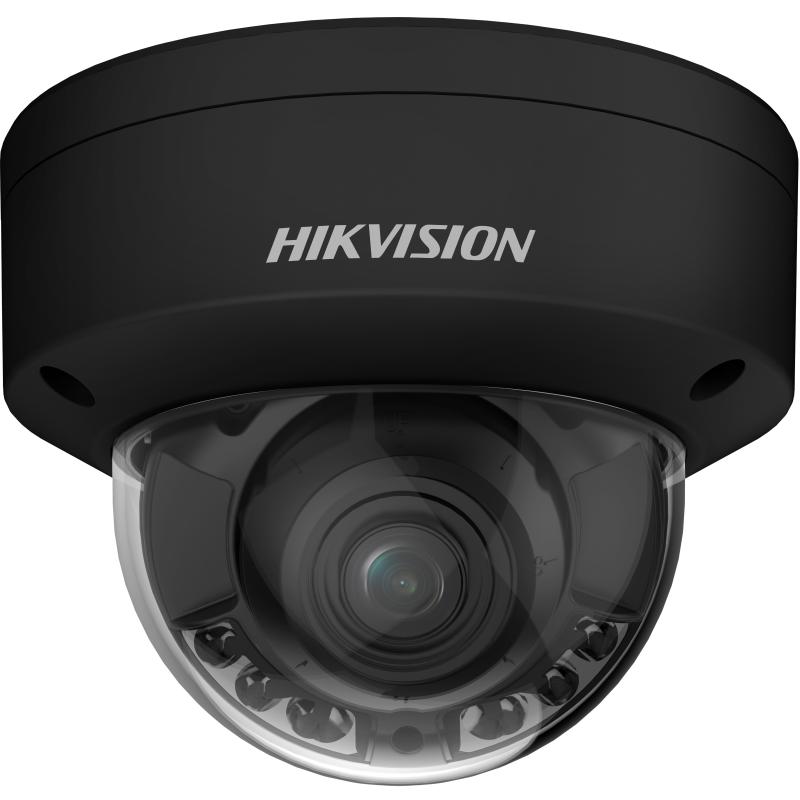

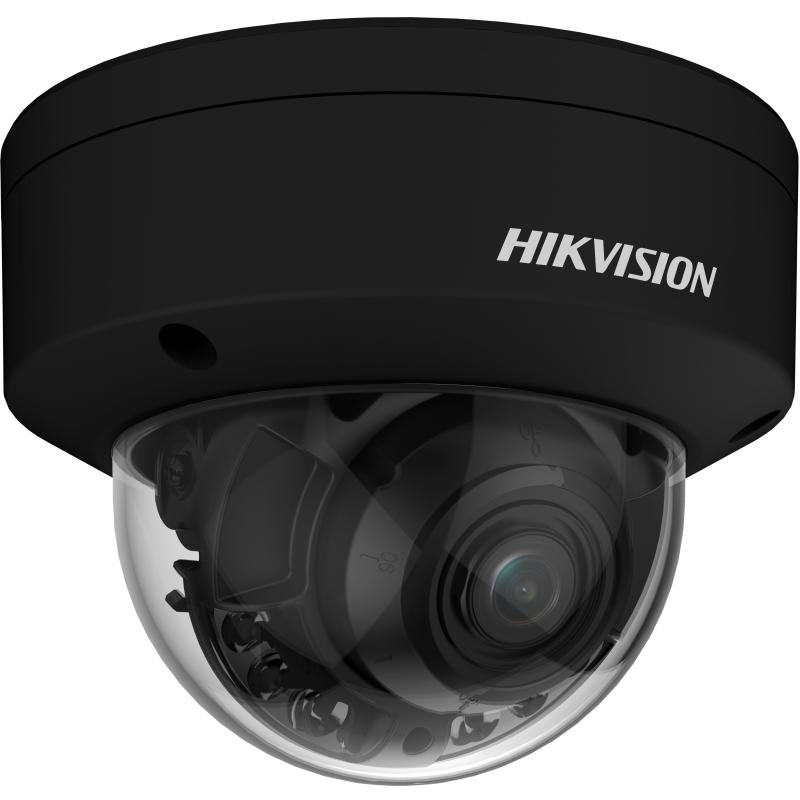

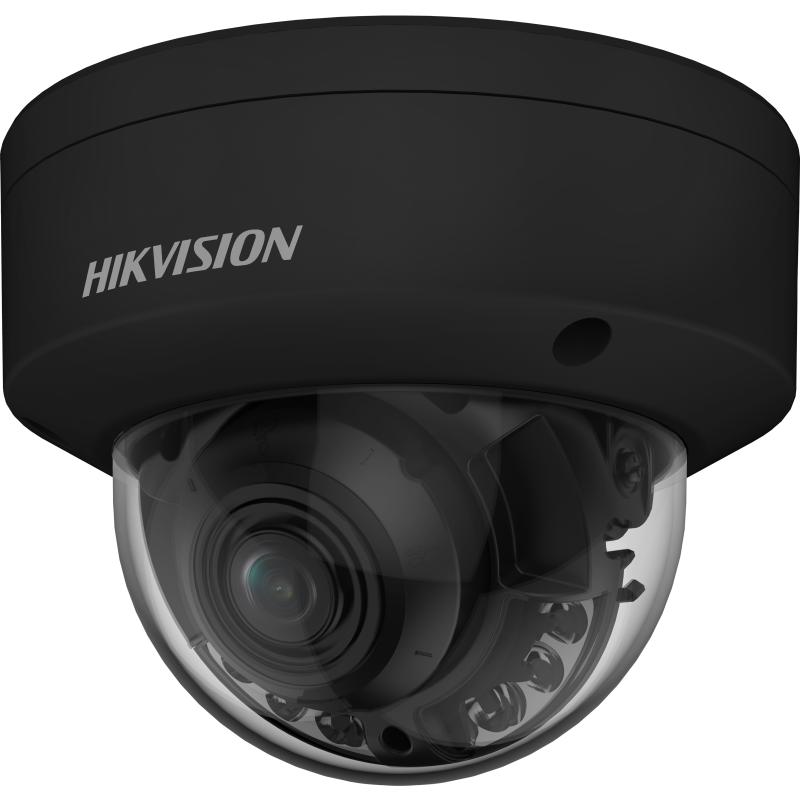

Hikvision DS-2CD2767G2HT-LIZS
6 MP Smart Hybrid Light Varifocal Dome Camera dengan ColorVu
| Kategori | Detail |
|---|---|
| Kamera | Sensor: 1/1.8″ Progressive Scan CMOS Resolusi maks: 3200 × 1800 (6 MP) Frame rate: 25/30 fps @ 3200×1800, 2688×1520, 1920×1080, 1280×720 (60 Hz: 24 fps @ 3200×1800; 30 fps @ 2688×1520/1080p/720p) Min. illuminasi: 0.0008 Lux @ F1.2 (warna, AGC ON) • 0 Lux dengan lampu Shutter: 1/3 s – 1/100,000 s • Day/Night: IR-cut filter (ICR) |
| Lensa & Sudut Pandang | Varifocal motorized: 2.8 – 12 mm Aperture: F1.2 • Mount: φ14 FOV (2.8 mm): H 105° • V 55° • D 125° FOV (12 mm): H 33° • V 18° • D 39° Autofocus: didukung |
| DORI | 2.8 mm: Deteksi 89 m • Observasi 35 m • Rekognisi 18 m • Identifikasi 9 m 12 mm: Deteksi 274 m • Observasi 109 m • Rekognisi 55 m • Identifikasi 27 m |
| Pencahayaan Tambahan | Smart Hybrid Light: IR + Warm LED (3000K) Jarak IR hingga 40 m • IR wavelength: 850 nm |
| Video & Kompresi | Main stream: hingga 25/30 fps @ 6 MP Sub-stream: hingga 25/30 fps @ 1280×720, 640×480, 640×360 Third stream: hingga 10 fps @ 1080p/720p/VGA Kompresi: H.265+/H.265/H.264+/H.264/MJPEG Bitrate video: 32 Kbps – 16 Mbps ROI: 1 area (main & sub stream) |
| Jaringan & Protokol | Protokol: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket(s), SRTP, SFTP API: ONVIF Profile S/G/T, ISAPI, SDK Penyimpanan jaringan: NAS (NFS, SMB/CIFS), ANR Client: iVMS-4200, Hik-Connect, Hik-Central |
| Pemrosesan Gambar | Pengaturan: rotate, saturasi, brightness, contrast, sharpness, gain, white balance Mode: Day/Night/Auto/Schedule Peningkatan: BLC, HLC, 3D DNR, WDR 130 dB SNR ≥ 52 dB Privacy mask hingga 4 polygon |
| Antarmuka & Penyimpanan | 1 × RJ45 10/100M Ethernet Slot microSD/SDHC/SDXC hingga 512 GB Tombol reset tersedia |
| Event & AI | Event dasar: Motion (human/vehicle), video tampering, exception Smart Event: Scene change detection AI: Face capture • Perimeter Protection (Line crossing, Intrusion, Region entrance/exiting) • Human/Vehicle Classification |
| Daya & Lingkungan | Daya: 12 VDC ±25% (maks 9.5 W) • PoE 802.3af Class 3 (maks 10.5 W) Material: Metal housing (dome + bracket) Dimensi kamera: Ø141 mm × 112 mm Berat: kamera ≈ 820 g • dengan kemasan ≈ 1200 g Suhu operasi: −30 °C s/d 60 °C • Kelembapan ≤ 95% non-kondensasi Proteksi: IP67, IK10 |
| Sertifikasi | EMC: CE-EMC, RCM, IC, KC Safety: UL, CB, CE-LVD Environment: CE-RoHS Proteksi: IP67, IK10 |
| Model Tersedia | DS-2CD2767G2HT-LIZS (2.8–12 mm, motorized varifocal dome) |
