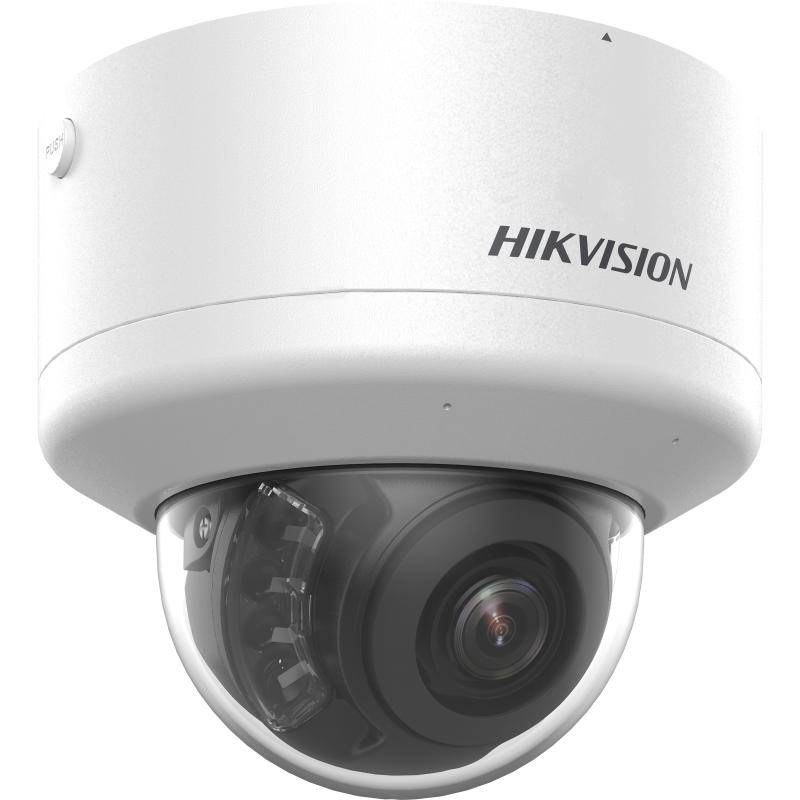

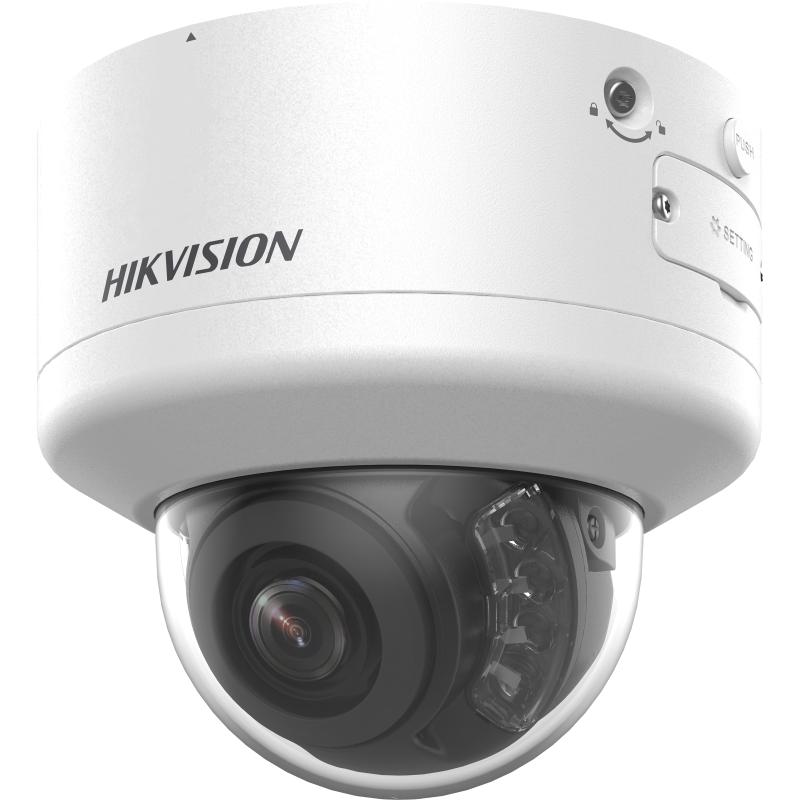

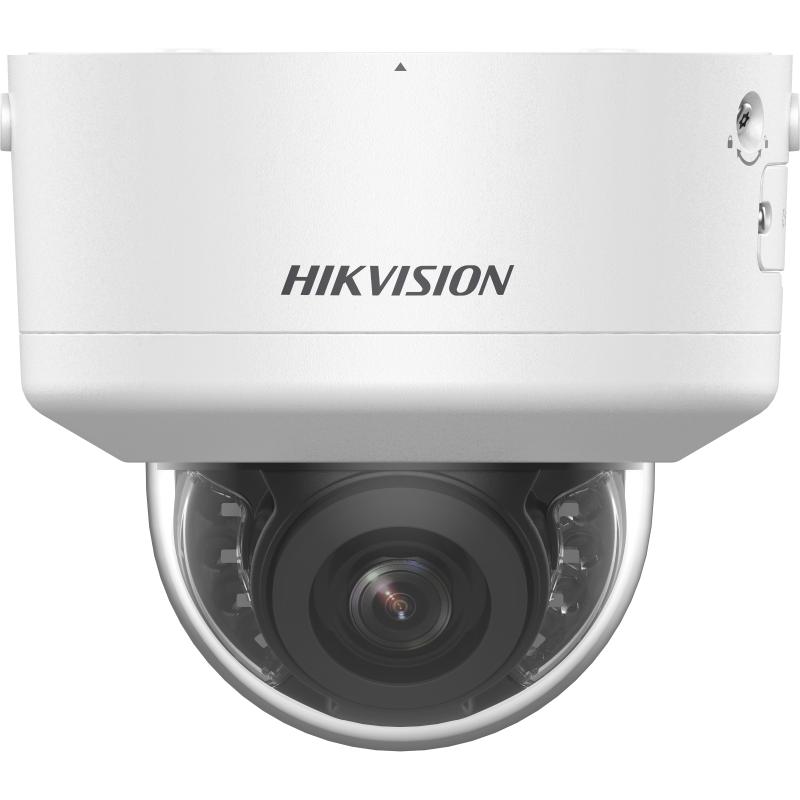

Hikvision DS-2CD2787G2H-LIPTRZS
8 MP Smart Hybrid Light PTRZ Varifocal Dome Camera dengan ColorVu
| Kategori | Detail |
|---|---|
| Kamera | Sensor: 1/1.8″ Progressive Scan CMOS Resolusi maks: 3840 × 2160 (8 MP, 4K) Min. illuminasi: 0.0028 Lux @ F1.2 (warna, AGC ON) • 0 Lux dengan lampu Shutter: 1/3 s – 1/100,000 s • Day/Night: IR-cut filter (ICR) |
| Lensa & PTRZ | Varifocal motorized: 2.8–12 mm Aperture: F1.2 • Mount: integrated Sudut pandang: H 112.3°–41.2°, V 58.1°–23.1°, D 137.4°–47.3° Pan/Tilt/Rotate kontrol: Pan 0–350°, Tilt 0–85°, Rotate 0–350° (remote, max 1000 cycles) |
| DORI | Wide: Deteksi 89 m • Observasi 35 m • Rekognisi 18 m • Identifikasi 9 m Tele: Deteksi 220 m • Observasi 87 m • Rekognisi 44 m • Identifikasi 22 m |
| Pencahayaan Hebat | Hybrid Light: IR + White Light, jangkauan hingga 40 m, Smart Light auto mode, IR λ 850 nm |
| Video & Kompresi | Main stream: hingga 25 fps @ semua resolusi (50 Hz), 24 fps di 4K dan 30 fps di resolusi lainnya (60 Hz) Sub-stream dan Third stream tersedia (hingga 10–30 fps) sesuai konfigurasi Kompresi: H.265+/H.265/H.264+/H.264/MJPEG |
| Audio & Alarm | Dilengkapi mikrofon & speaker built-in, serta port alarm (audio & alarm interface tersedia) |
| Jaringan & Protokol | ONVIF S/G/T, RJ45 10/100M, semua protokol standar Hikvision (TCP/IP, HTTP/S, FTP, RTSP, RTCP, NTP, DHCP, DNS, QoS, IPv4/6, SSL/TLS, dll.) |
| Pemrosesan Gambar | WDR 120 dB, BLC, HLC, 3D DNR, ROI, privacy mask, penyesuaian gambar |
| AI & Event | Deep Learning: human & vehicle classification (Line Crossing, Intrusion, Region Entrance/Exit) serta Face Capture |
| Daya, Lingkungan & Proteksi | Power: 12 VDC atau PoE (Power consumption up to 15 W) Material: robust metal, IP66 (water/dust), IK10 (vandal resistance) Suhu: –30 °C hingga 60 °C • RH ≤ 95% (non-condensing) |
| Dimensi & Berat | Diameter: 155 mm × Tinggi: 140.4 mm • Berat: ≈ 820 g |
| Model Tersedia | DS-2CD2787G2H-LIPTRZS (2.8–12 mm motorized PTRZ Varifocal dome) |
