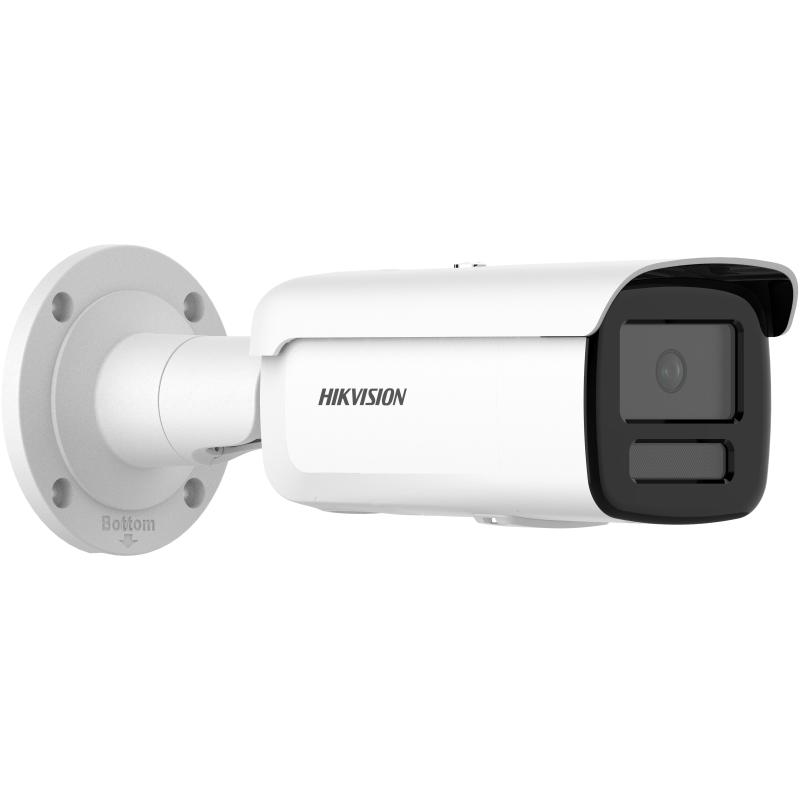

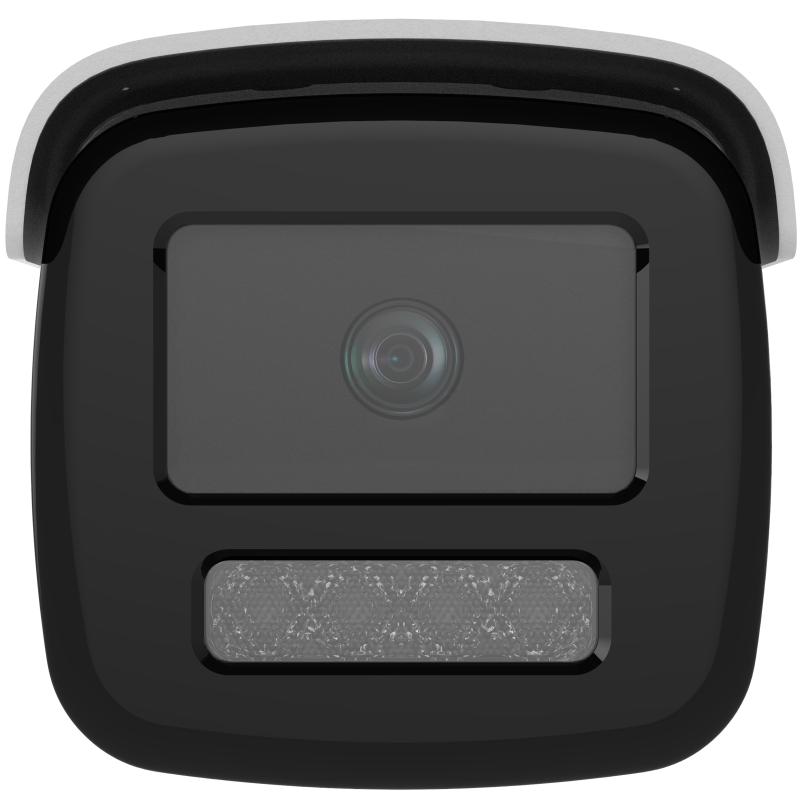

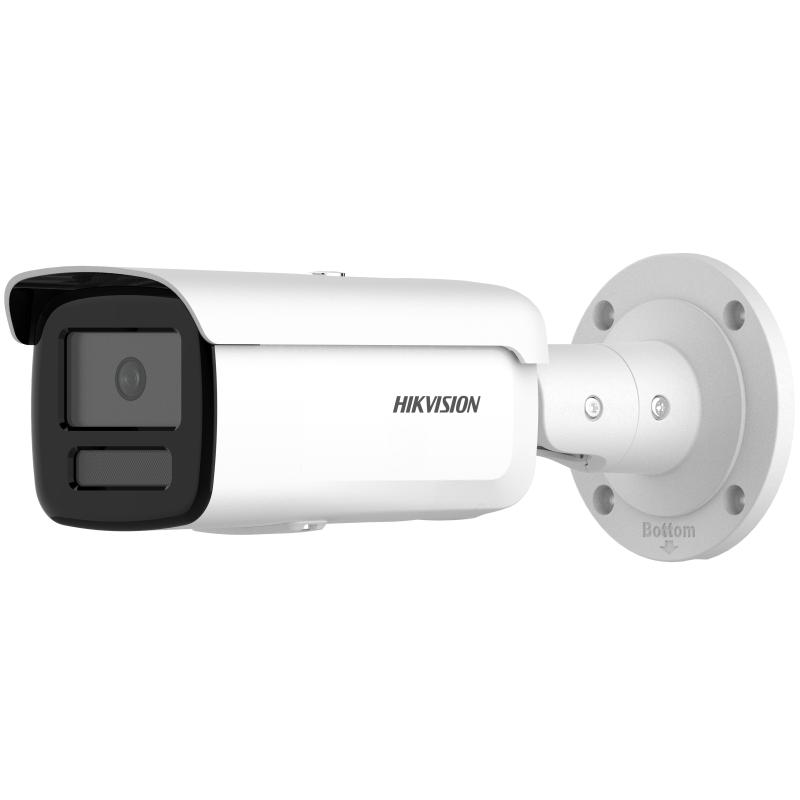

Hikvision DS-2CD2T46G2H-2I/4I
4 MP AcuSense Powered-by-DarkFighter Fixed Bullet Network Camera
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 1/3″ Progressive-Scan CMOS Resolusi Maks: 2688 × 1520 (4 MP) Min. Illuminasi: Warna 0.001 Lux @ (F1.0, AGC ON), B/W 0 Lux (IR ON) Shutter: 1/3 s – 1/100 000 s Day/Night: IR cut filter WDR: 120 dB, S/N ≥ 52 dB Fitur gambar: BLC, HLC, 3D DNR |
| Lensa & Sudut Pandang | Lensa tetap 2.8 mm, 4 mm, atau 6 mm • Mount M12 FOV: – 2.8 mm: H 103°, V 55°, D 123° – 4 mm: H 83°, V 45°, D 98° – 6 mm: H 53°, V 28°, D 62° DORI: – 2.8 mm: 60 m / 23.8 m / 12 m / 6 m – 4 mm: 80 m / 31.7 m / 16 m / 8 m – 6 mm: 120 m / 47.6 m / 24 m / 12 m |
| IR & Audio | Smart IR: model -2I hingga 60 m • model -4I hingga 80 m (850 nm) Audio: (tidak ada mic bawaan) |
| Kompresi & Streaming | Kompresi: H.265 / H.264 / H.265+ / H.264+ Sub-stream: H.265 / H.264 / MJPEG Frame rate: hingga 25/30 fps @ 4 MP Bitrate: 32 kbps – 8 Mbps, CBR/VBR, ROI (1 area) |
| Fitur Analitik | AcuSense: klasifikasi manusia & kendaraan Event pintar: line crossing, intrusion, area entrance/exit Event dasar: motion detection, tampering, scene change |
| Jaringan & Penyimpanan | Antarmuka: 1 × RJ45 10/100 Mbps Protokol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS, SMTP, Bonjour, PPPoE, UPnP, NFS, iSCSI, ONVIF (S/G/T) Penyimpanan on-board: microSD hingga 512 GB |
| Keamanan & Akses | Multi-level user (admin/operator/user) Keamanan: HTTPS, TLS, password kompleks, IP filter, log audit Klien: iVMS-4200, Hik-Connect, Hik-Central |
| Daya & Bahan | Model -2I: 12 V DC ±25% (max 7.2 W) / PoE 802.3af (max 9 W) Model -4I: 12 V DC ±25% (max 10 W) / PoE 802.3af (max 12 W) Material: logam (cover, body, bracket) |
| Lingkungan & Proteksi | Suhu kerja: –30 °C hingga +60 °C, RH ≤ 95% non-kondensasi Proteksi: IP67 |
| Dimensi & Berat | Dimensi kamera: 286.7 × 93.1 × 91.2 mm Dimensi paket: 386 × 156 × 155 mm Berat bersih: ±1085 g Berat kotor: ±1639 g |
