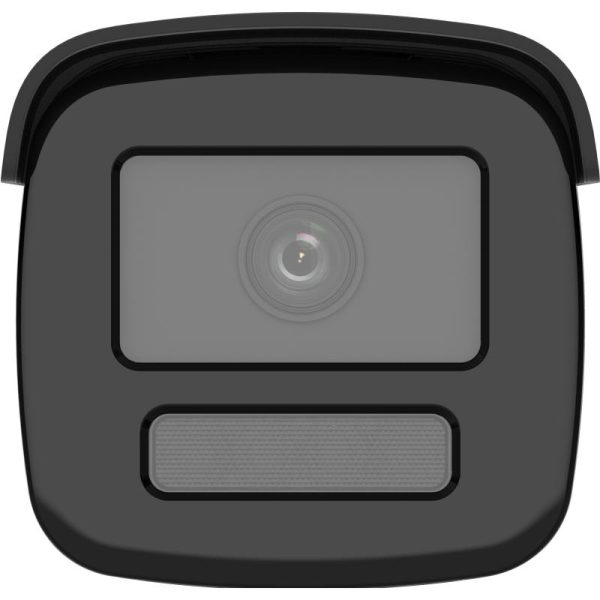

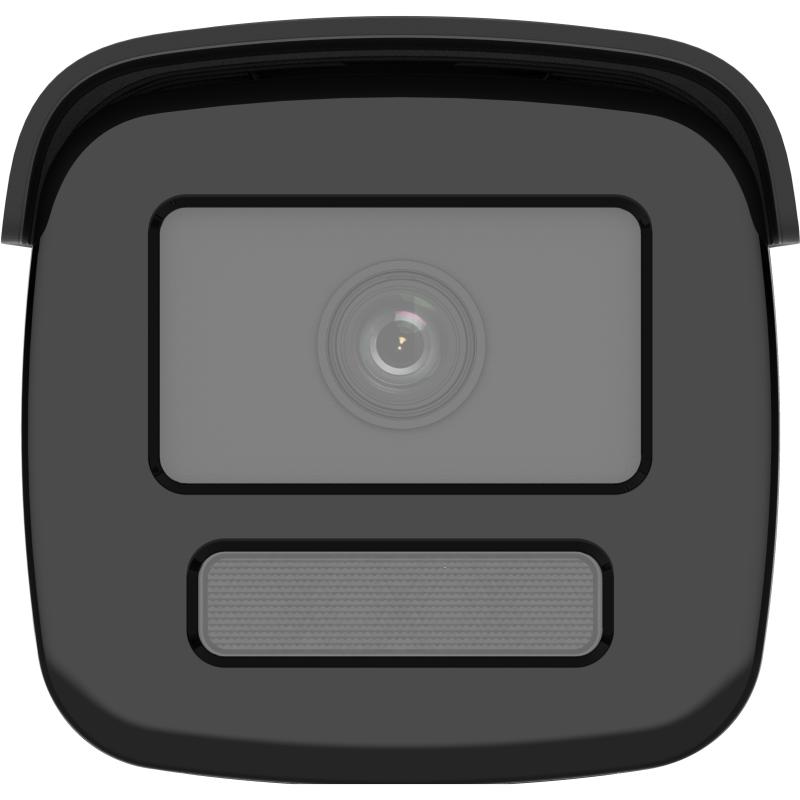

Hikvision DS-2CD2T47G2H-LI
4 MP Smart Hybrid Light Bullet Camera dengan ColorVu
| Kategori | Detail |
|---|---|
| Kamera & Lensa | Sensor: 1/1.8″ Progressive Scan CMOS Resolusi: 2688 × 1520 (4 MP) Min. illuminasi: Warna 0.0005 Lux @ F1.0 (AGC ON), 0 Lux dengan lampu Shutter: 1/3 s – 1/100000 s • Day/Night: IR-cut filter (ICR) Penyesuaian sudut: Pan 0–360°, Tilt 0–90°, Rotate 0–360° Lensa tetap: 2.8 mm atau 4 mm • Mount: M16 • Aperture: F1.0 FOV 2.8 mm: H 104°, V 54.4°, D 126.7° • FOV 4 mm: H 89.2°, V 45.5°, D 108.2° DoF: 2.8 mm 2.5 m – ∞ • 4 mm 3.1 m – ∞ |
| DORI | 2.8 mm: Deteksi 61 m • Observasi 24 m • Rekognisi 12 m • Identifikasi 6 m 4 mm: Deteksi 75 m • Observasi 30 m • Rekognisi 15 m • Identifikasi 7 m |
| Pencahayaan Tambahan | Smart Hybrid Light: IR + white light • Jangkauan hingga 60 m • IR 850 nm |
| Video & Kompresi | Main stream: 25 fps (50 Hz) / 30 fps (60 Hz) @ 2688×1520, 1920×1080, 1280×720 Sub-stream: 25/30 fps @ 1280×720, 640×480, 640×360 Third stream: 10 fps @ 1920×1080, 1280×720, 640×480, 640×360 Kompresi: H.265+/H.265/H.264+/H.264/MJPEG • Bitrate 32 Kbps – 8 Mbps • ROI 1 area |
| Jaringan & Keamanan | Protokol: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket(s), SRTP, SFTP Live view simultan hingga 6 channel • ONVIF Profile S/G/T, ISAPI, SDK, ISUP Keamanan: password, HTTPS, 802.1X, watermark, IP filter, RTP/RTSP over HTTPS, TLS 1.1–1.3, audit log, host authentication |
| Gambar & Pemrosesan | Pengaturan: rotate, saturasi, brightness, contrast, sharpness, gain, white balance Mode: Day/Night/Auto/Schedule • BLC, HLC, 3D DNR • WDR 130 dB • SNR ≥ 52 dB • Privacy mask 4 polygon |
| Antarmuka & Penyimpanan | 1 × RJ45 10/100M • Slot microSD/SDHC/SDXC hingga 512 GB • Tombol reset |
| Event & AI | Event dasar: Motion (filter manusia/kendaraan), video tampering, exception Tautan: upload ke FTP/NAS/kartu, notifikasi, perekaman/capture, email Smart event: scene change detection AI: Face capture • Perimeter protection (Line crossing, Intrusion, Region entrance/exiting) • Klasifikasi alarm manusia/kendaraan |
| Daya, Material & Lingkungan | 12 VDC ±25% (≤ 8 W) • PoE 802.3af Class 3 (≤ 9 W) Material: semua metal (front cover, body, bracket) Dimensi kamera: 286.7 × 93.3 × 91.2 mm • Dimensi kemasan: 386 × 156 × 155 mm Berat: kamera ≈ 1085 g • dengan kemasan ≈ 1639 g Suhu operasi: −30 °C hingga 60 °C • Kelembapan ≤ 95% non-kondensasi • Proteksi: IP67 |

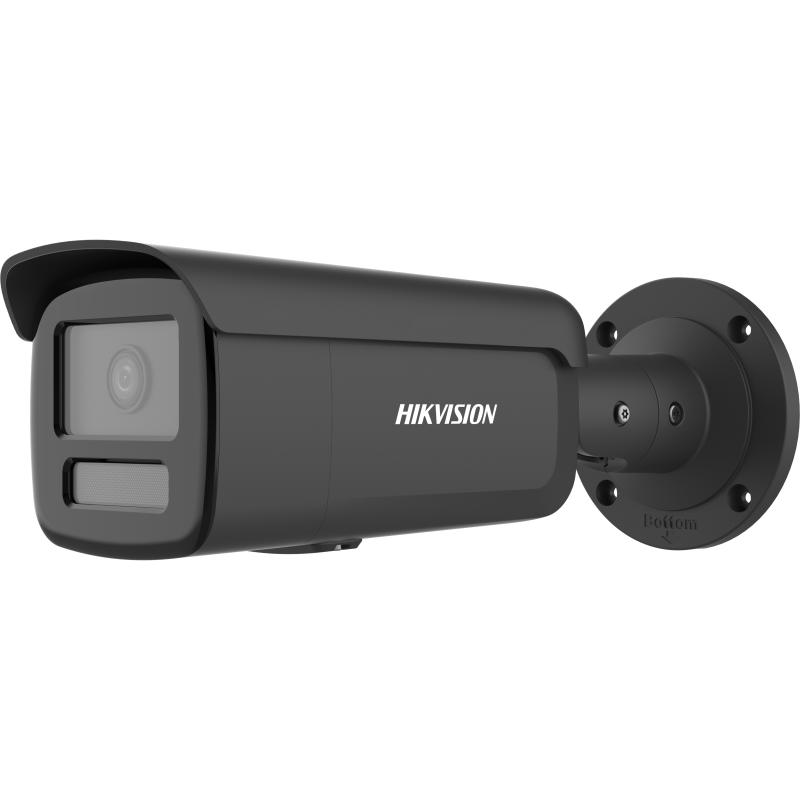

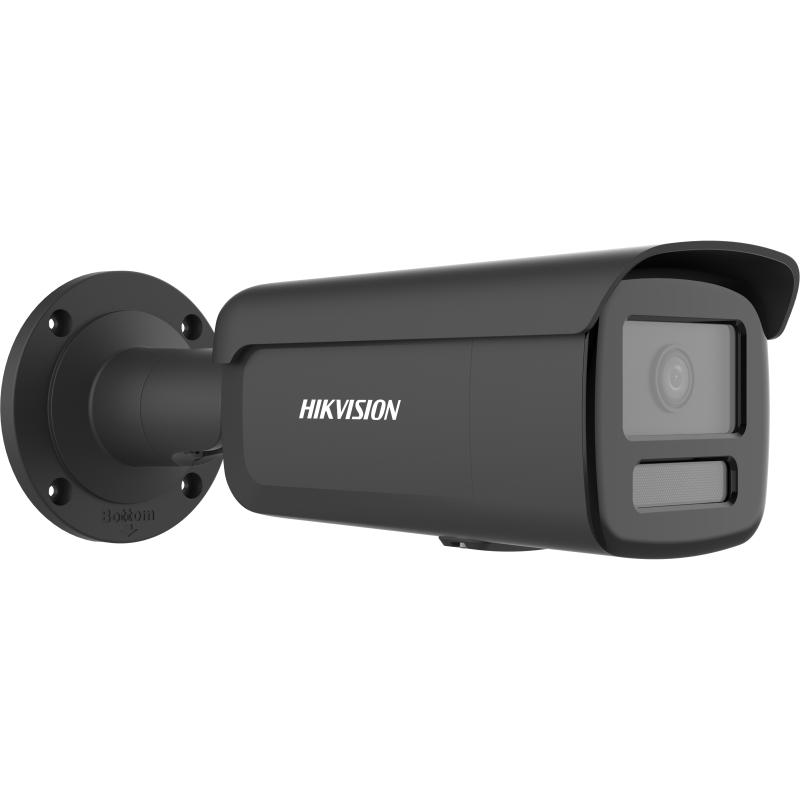

| Model | DS-2CD2T47G2H-LI 2.8 mm (tersedia varian Black) • DS-2CD2T47G2H-LI 4 mm |
