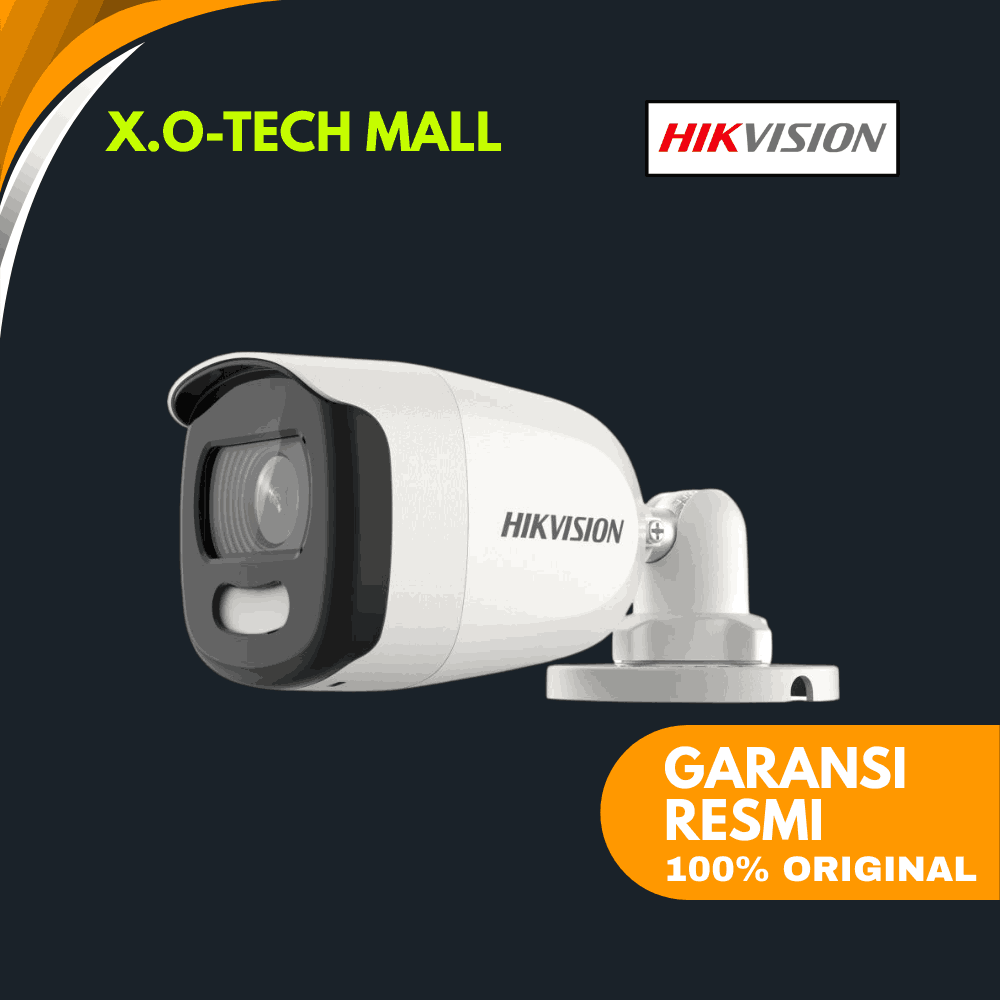

Hikvision DS-2CE10HFT-F
5 MP Full-Time Color Fixed Mini Bullet Camera
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 5 MP CMOS Resolusi Maksimal: 2560 × 1944 (5 MP) Min. Illumination: 0.0005 Lux @ F1.0 (AGC ON); 0 Lux dengan White Light Shutter: PAL 1/25 s–1/50,000 s; NTSC 1/30 s–1/50,000 s; Slow shutter hingga 16× Day/Night: Warna penuh 24/7 |
| Lensa & FOV | Fixed lens: 3.6 mm atau 6 mm, mount M16 FOV 3.6 mm: H 80.1°; FOV 6 mm: H 49.3° |
| Video & Kompresi | Frame rate TVI: 5 MP@20 fps, 4 MP@30/25 fps, 1080p@30/25 fps CVI: 4 MP@30/25 fps AHD: 5 MP@20 fps, 4 MP@30/25 fps CVBS: PAL/NTSC 4-in-1 output (TVI/AHD/CVI/CVBS switchable) |
| Gambar & Fitur | True WDR 130 dB, 3D DNR Mode gambar: STD / HIGH-SAT AE: WDR / BLC / HLC / Global / HLS / Anti-banding White balance: Auto / Manual AGC: Yes Privacy mask (4 area); motion detection (4 area) Pengaturan: Brightness, Sharpness, Mirror, Smart Light |
| Pencahayaan | Smart Light (White Light) hingga 20 m; Auto / Off |
| Lingkungan & Fisik | IP67 (tahan debu & air); Suhu operasi: –40 °C hingga 60 °C; kelembapan ≤ 90 % Dimensi: 68 × 70 × 168.2 mm Berat: ≈ 350 g; Material: Metal |
| Power & Interface | Power: 12 V DC ± 25 % Power consumption: max. 3.5 W Komunikasi: HIKVISION-C |
