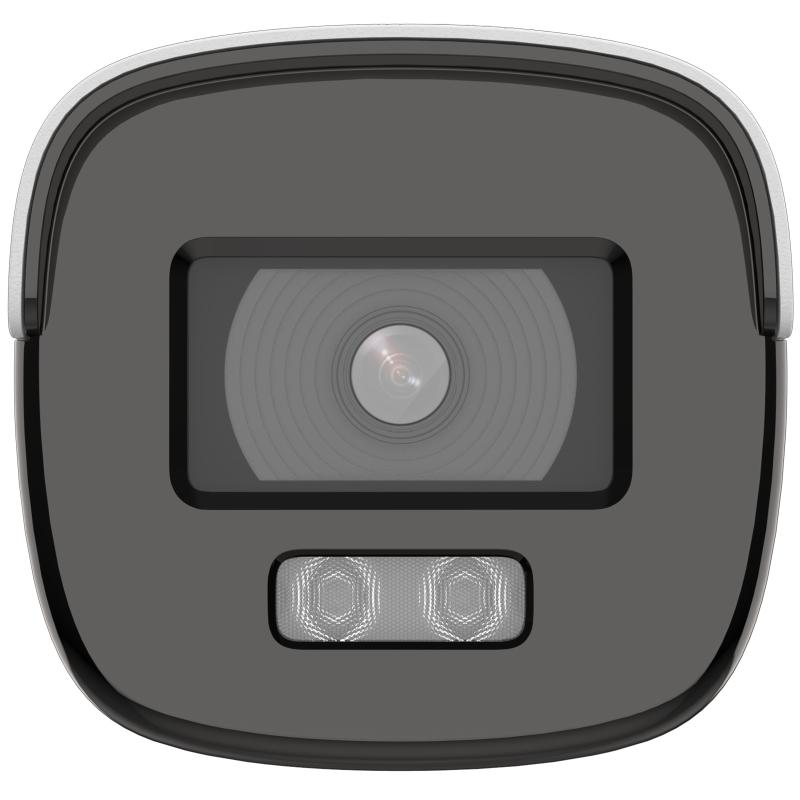

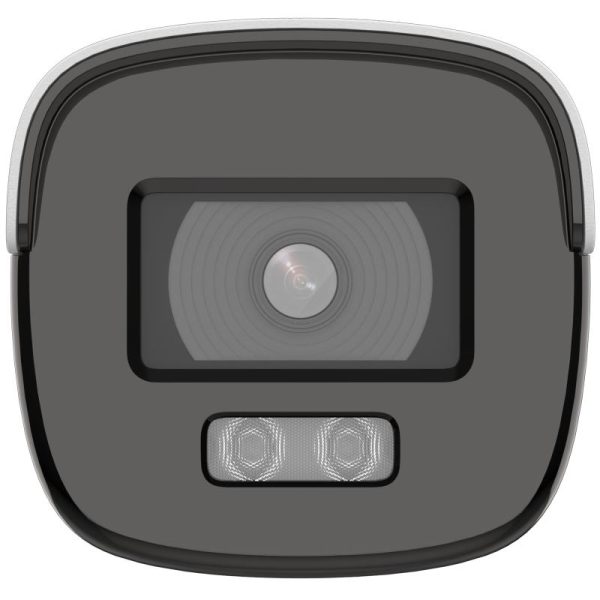

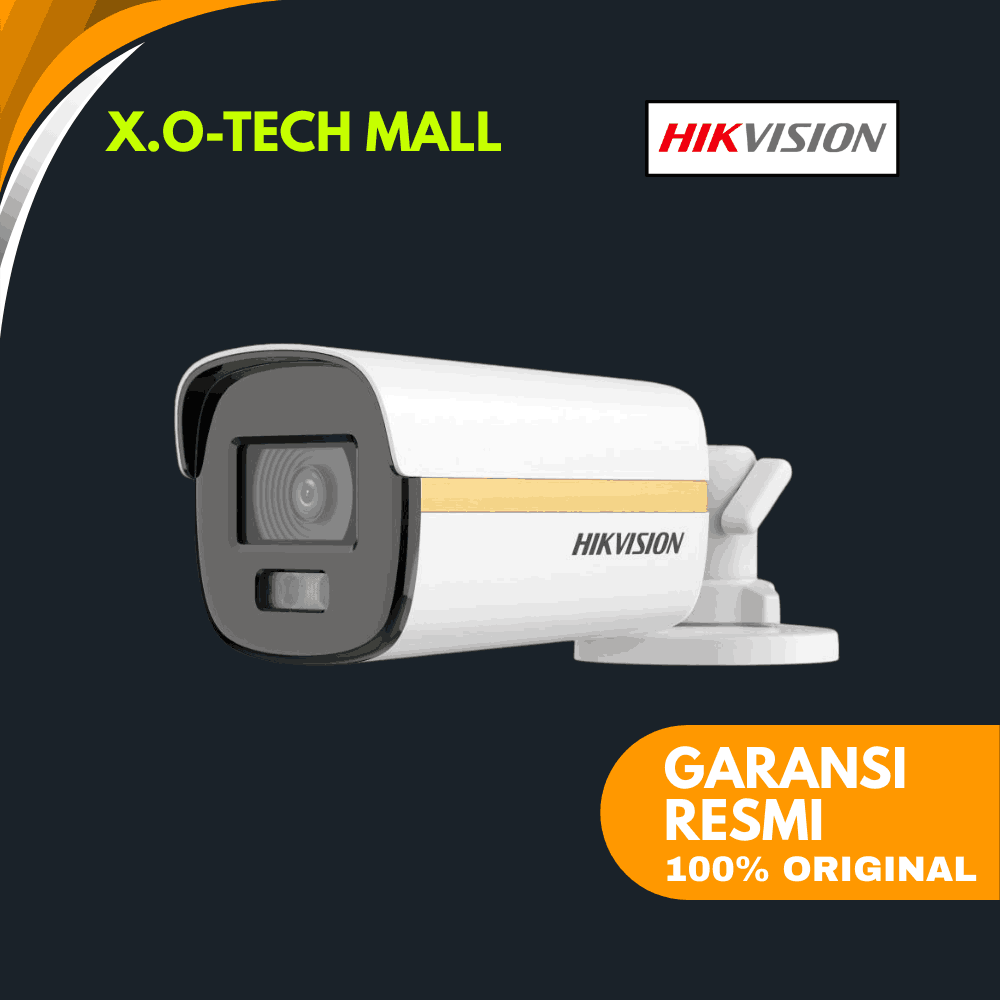

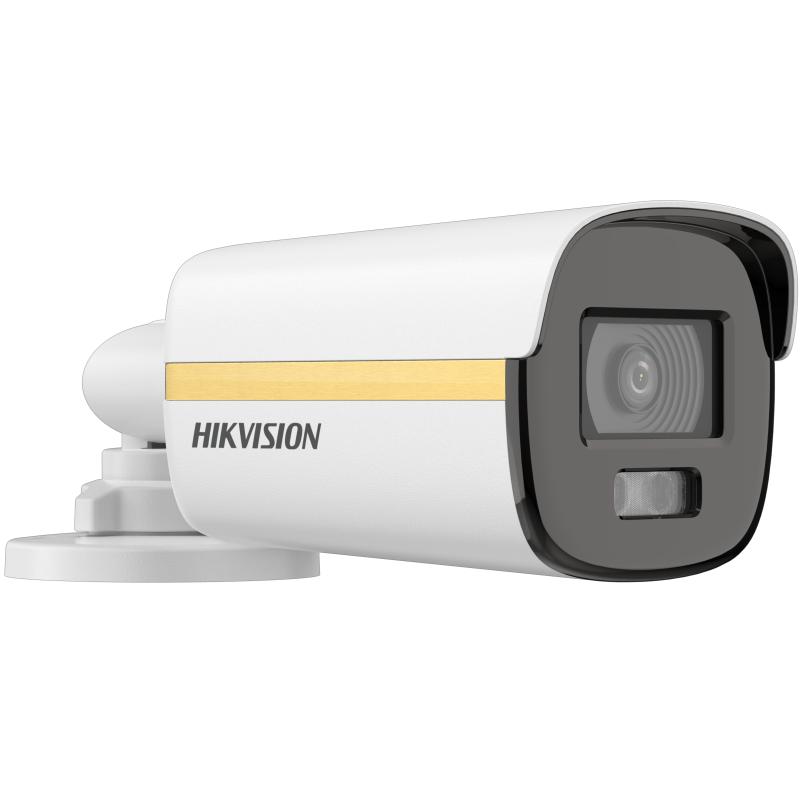

Hikvision DS-2CE12KF3T-L
3K ColorVu Fixed Bullet Camera (Smart-Hybrid Light)
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 3K CMOS Resolusi maks.: 2960 × 1665 (3K, 16:9) Min. iluminasi: 0.0005 Lux @ F1.0 (AGC ON); 0 Lux dengan white light Frame rate: 3K @ 20 fps; 4 MP @ 25/30 fps; 1080p @ 25/30 fps Day/Night: Auto / Color (24/7 Color) Slow shutter: hingga 16× |
| Lensa & FOV | Lensa tetap: 2.8 mm atau 3.6 mm (mount M12) FOV 2.8 mm: H 110° • V 59° • D 139° FOV 3.6 mm: H 90° • V 49° • D 105° |
| Pencahayaan | Smart-Hybrid Light: IR & White Light Jarak: IR hingga 40 m • White Light hingga 40 m |
| Video & Output | Output video: 1 HD analog (coaxial) Komunikasi OSD: HIKVISION-C (Up-the-Coax) |
| Pemrosesan Gambar | True WDR ≥ 130 dB, 3D/2D DNR, BLC, HLC, HLS, Global Mode gambar: STD / HIGH-SAT / HIGHLIGHT White balance: Auto / Outdoor / Global / Manual Pengaturan: Brightness, Contrast, Mirror, Smart Light, Anti-Banding Privacy mask: hingga 4/8 area; Motion detection: 4 area |
| Penyesuaian Sudut | Pan 0–360° • Tilt 0–180° • Rotate 0–360° |
| Daya & Interface | Catu daya: 12 VDC ± 25% • 0.65 A (maks. 7.8 W) Rekomendasi: 1 adaptor per kamera; jika kabel impedansi tinggi (contoh kabel ekstensi 18 m kit), gunakan adaptor 15 VDC |
| Lingkungan & Fisik | Proteksi: IP67 • Operasi: −40 °C ~ 60 °C, ≤ 90% RH non-condensing Material housing: Metal Dimensi: 194.2 × 78 × 74.5 mm (P × L × T) • Berat: ~535 g |
| Model & Aksesori | Model: DS-2CE12KF3T-L (2.8 mm) • DS-2CE12KF3T-L (3.6 mm) Aksesori opsional: DS-1280ZJ-XS (Junction Box), DS-2280ZJ (Wall Mount) |
