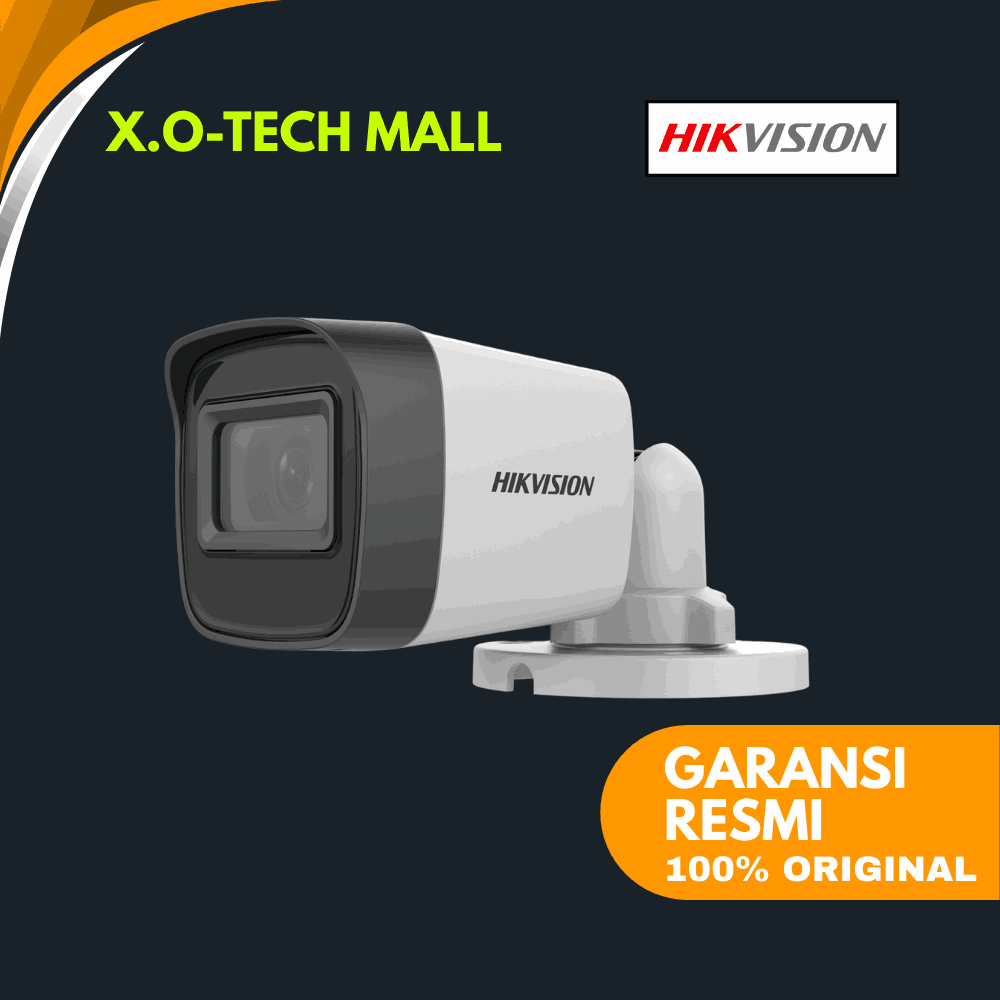

Hikvision DS-2CE16D0T-ITF(C)
2 MP Fixed Mini Bullet • EXIR 30 m • 4-in-1 (TVI/AHD/CVI/CVBS)
| Kategori | Spesifikasi |
|---|---|
| Fitur Utama | Resolusi 2 MP (1920 × 1080) • Smart IR hingga 30 m • Tahan cuaca IP67 • 4-in-1 sinyal video switchable: TVI/AHD/CVI/CVBS |
| Kamera & Gambar | Sensor: 2 MP CMOS; Sistem sinyal: PAL/NTSC Resolusi maks.: 1920(H) × 1080(V) Min. iluminasi: 0.01 Lux @ (F2.0, AGC ON), 0 Lux dengan IR aktif Shutter: PAL 1/25–1/50,000 s; NTSC 1/30–1/50,000 s Day/Night: ICR • Penyesuaian sudut: Pan 0–360° • Tilt 0–90° • Rotate 0–360° |
| Lensa & FOV | Lensa tetap: 2.8 mm • 3.6 mm • 6 mm (mount M12) FOV 2.8 mm: H 101° • V 60° • D 122° FOV 3.6 mm: H 79.6° • V 43.5° • D 93.7° FOV 6 mm: H 51.9° • V 30° • D 58.8° |
| Video & Output | Frame rate: 1080p @ 25/30 fps (TVI/CVI/AHD); CVBS: PAL/NTSC Output video: switchable TVI/AHD/CVI/CVBS via OSD/UTC |
| Pencahayaan & Gambar | EXIR IR: hingga 30 m (Smart IR) • Mode Day/Night: Auto/Color/B/W WDR: Digital WDR • Peningkatan gambar: BLC, HLC Pengaturan gambar: Brightness, Sharpness, Smart IR • Image parameter switch: STD/HIGH-SAT |
| Umum | Material housing: Metal • Proteksi: IP67 Catu daya: 12 VDC ±25% • Konsumsi: ≤ 3 W Dimensi: 57.9 × 60.9 × 138.8 mm • Berat: ≈ 257 g Kondisi kerja: −40 °C hingga 60 °C, RH ≤ 90% (non-condensing) Komunikasi: HIKVISION-C |
