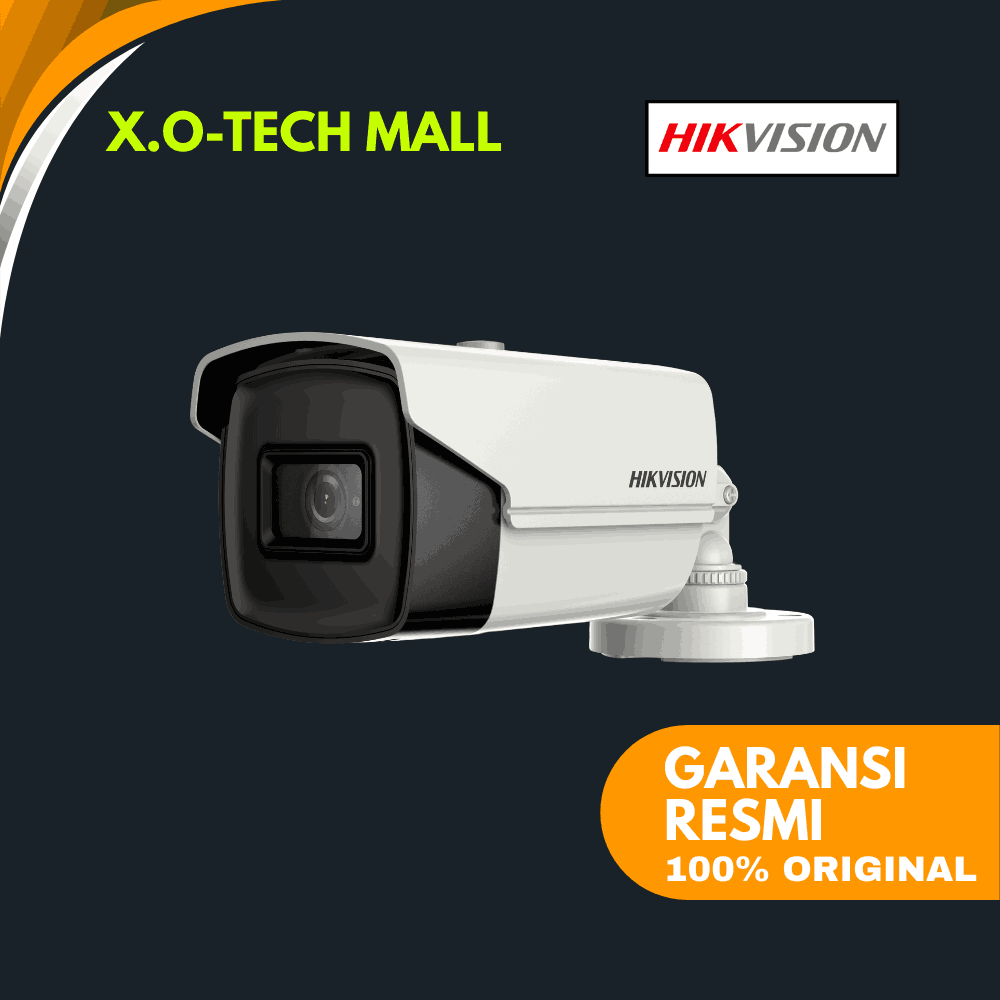

Hikvision DS-2CE16U1T-IT1F / IT3F / IT5F
4K (8 MP) Ultra Low Light Fixed Bullet • EXIR 2.0 • DWDR • 4-in-1 (TVI/AHD/CVI/CVBS)
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 8.29 MP Progressive Scan CMOS • Resolusi maks.: 3840 × 2160 (4K) • Sistem: PAL/NTSC Min. iluminasi: 0.01 Lux @ F2.0 (AGC ON); 0 Lux dengan IR • Shutter: PAL 1/12.5–1/50.000 dtk • NTSC 1/15–1/50.000 dtk Day/Night: IR Cut Filter (ICR) • Penyesuaian sudut: Pan 0–360° • Tilt 0–180° • Rotate 0–360° |
| Lensa & FOV | Mount lensa: M16 • Tipe lensa: Fixed
IT1F
Lensa: 2.8 / 3.6 / 6 mm IT3F
Lensa: 2.8 / 3.6 / 6 / 8 / 12 mm IT5F
Lensa: 3.6 / 6 / 8 / 12 mm |
| Pencahayaan (IR) | Teknologi EXIR 2.0 + Smart IR IT1F: jarak IR hingga 30 m • IT3F: hingga 60 m • IT5F: hingga 80 m |
| Video & Output | Frame rate (semua model): 8MP@12.5/15fps; 4MP@25/30fps; 2MP@25/30fps Mode video: 4-in-1 switchable (TVI/AHD/CVI/CVBS) • CVBS: 960H P/N • OSD via UTC (HIKVISION-C) |
| Pemrosesan Gambar | DWDR (Digital WDR) • 2D DNR • BLC/HLC Pengaturan: Brightness, Sharpness, AGC • Mode D/N: Auto / Color / BW • WB: Auto/Manual |
| Daya & Konsumsi | Catu daya: 12 VDC ±25% Konsumsi maks.: 5.3 W (IT1F, IT3F) • 5.9 W (IT5F) |
| Lingkungan & Fisik | Proteksi: IP67 • Operasi: −40 °C ~ +60 °C • RH ≤ 90% (non-condensing) Material: Front cover: Metal • Main body: Plastic Dimensi (P × L × T): 81.9 × 86.7 × 217.9 mm • Berat: ≈ 435 g |
| Model & Aksesori | Varian resmi: • DS-2CE16U1T-IT1F (2.8/3.6/6 mm) • DS-2CE16U1T-IT3F (2.8/3.6/6/8/12 mm) • DS-2CE16U1T-IT5F (3.6/6/8/12 mm) Aksesori opsional: DS-1280ZJ-XS (IT1F/IT3F) • CBXS (IT5F) – Junction Box |
