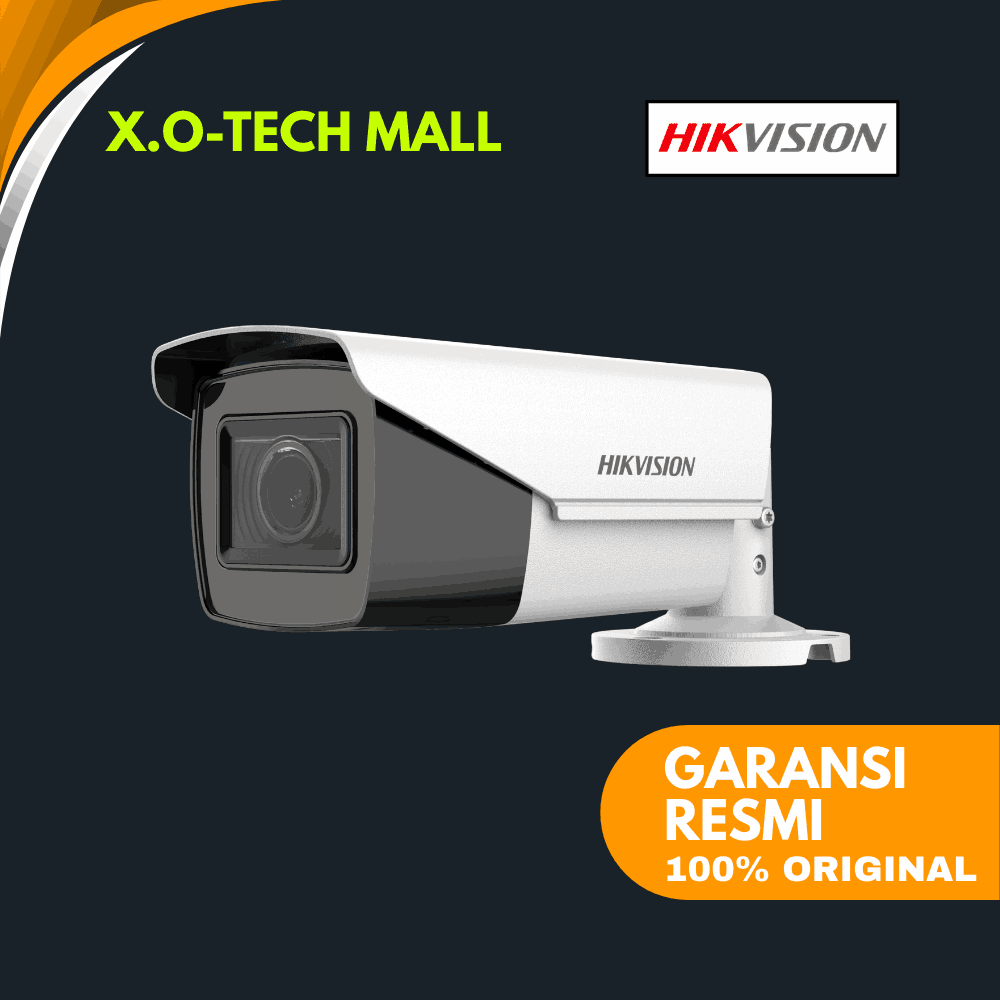

Hikvision DS-2CE19H0T-AIT3ZF
5 MP Motorized Vari-focal EXIR Bullet Camera – 40 m IR, IP67
| Kategori | Spesifikasi |
|---|---|
| Sensor & Resolusi | 1/3″ CMOS, hingga 2560 × 1944 (5 MP) Frame rate: TVI/AHD 5 MP @ 20 fps; 4 MP @ 25/30 fps; CVI 4 MP @ 25/30 fps; CVBS PAL/NTSC |
| Lensa & Sudut Pandang | Motorized vari-focal 2.7–13.5 mm FOV: H 95°–26° • V 72°–20° • D 126°–33° |
| Pencahayaan & IR | EXIR IR hingga 40 m Day/Night: ICR Min. iluminasi: 0.01 Lux @ F1.6 (AGC ON); 0 Lux (dengan IR) |
| Peningkatan Gambar | Digital WDR (DWDR), BLC, HLC, 2D DNR, Smart IR Pengaturan: Brightness, Sharpness, AGC, White Balance (Auto/Manual), AE |
| Video Output | Switchable: TVI / AHD / CVI / CVBS (1× BNC) |
| Penyesuaian Sudut | Pan 0–360° • Tilt 0–90° • Rotate 0–360° |
| Daya & Konsumsi | 12 V DC ±15% atau 24 V AC ±15%; konsumsi maks. ± 8.8 W |
| Lingkungan Operasi | −40 °C hingga +60 °C; RH ≤ 90% (non-condensing) |
| Dimensi & Berat | 84.5 × 92 × 255.1 mm; ± 682 g |
| Material & Proteksi | Cover depan: metal; bodi: plastik; rating IP67 (outdoor) |
