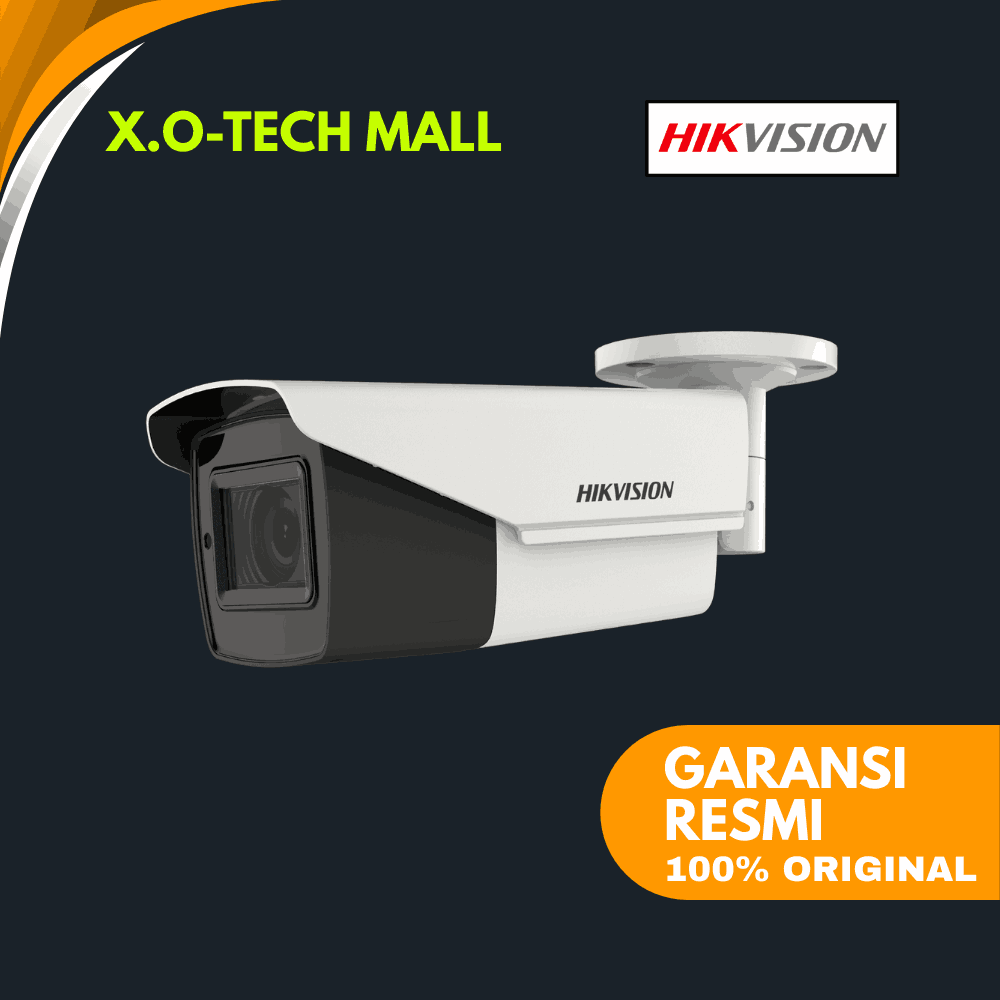

Hikvision DS-2CE19U1T-IT3ZF / DS-2CE19U1T-AIT3ZF
8 MP (4K) Motorized Varifocal Bullet • EXIR 2.0 IR 80 m • 4-in-1 (TVI/AHD/CVI/CVBS) • IP67
| Kategori | DS-2CE19U1T-IT3ZF | DS-2CE19U1T-AIT3ZF |
|---|---|---|
| Perbedaan Utama | Daya: DC saja (9–15 VDC) Konsumsi maks.: 8.6 W |
Daya: DC/AC (9.6–14.4 VDC atau 19.2–28.8 VAC) Konsumsi maks.: 10.8 W |
| Kamera & Gambar | Sensor 8.29 MP Progressive CMOS Resolusi maks. 3840 × 2160 (4K) Min. iluminasi: 0.01 Lux @ F2.4 (AGC ON); 0 Lux dgn IR Shutter: PAL 1/12.5–1/50,000 dtk • NTSC 1/15–1/50,000 dtk Day/Night: ICR |
Sensor 8.29 MP Progressive CMOS Resolusi maks. 3840 × 2160 (4K) Min. iluminasi: 0.01 Lux @ F2.4 (AGC ON); 0 Lux dgn IR Shutter: PAL 1/12.5–1/50,000 dtk • NTSC 1/15–1/50,000 dtk Day/Night: ICR |
| Lensa & FOV | Motorized varifocal 2.7–13.5 mm (AF) • Mount Φ14 FOV horizontal: 108.1° – 45.6° |
Motorized varifocal 2.7–13.5 mm (AF) • Mount Φ14 FOV horizontal: 108.1° – 45.6° |
| Pencahayaan (IR) | EXIR 2.0 + Smart IR • Jangkauan IR hingga 80 m | EXIR 2.0 + Smart IR • Jangkauan IR hingga 80 m |
| Video & Output | TVI: 8MP@12.5/15fps; 5MP@20fps; 4MP@25/30fps; 2MP@25/30fps AHD/CVI: 8MP@12.5/15fps • CVBS: 960H P/N Output 4-in-1 switchable • OSD via UTC (HIKVISION-C) |
TVI: 8MP@12.5/15fps; 5MP@20fps; 4MP@25/30fps; 2MP@25/30fps AHD/CVI: 8MP@12.5/15fps • CVBS: 960H P/N Output 4-in-1 switchable • OSD via UTC (HIKVISION-C) |
| Pemrosesan Gambar | DWDR • 2D DNR • BLC/HLC WB: Auto/Manual • Pengaturan: Brightness, Mirror, Sharpness, AGC |
DWDR • 2D DNR • BLC/HLC WB: Auto/Manual • Pengaturan: Brightness, Mirror, Sharpness, AGC |
| Daya | 9–15 VDC • Maks. 8.6 W | 9.6–14.4 VDC atau 19.2–28.8 VAC • Maks. 10.8 W |
| Lingkungan & Fisik | Proteksi IP67 • Operasi −40 °C ~ +60 °C, RH ≤ 90% (non-cond.) Material: Front cover: Metal, Main body: Plastic Dimensi: 84.5 × 92 × 255.1 mm • Berat: ≈ 695 g Komunikasi koaksial: HIKVISION-C |
Proteksi IP67 • Operasi −40 °C ~ +60 °C, RH ≤ 90% (non-cond.) Material: Front cover: Metal, Main body: Plastic Dimensi: 84.5 × 92 × 255.1 mm • Berat: ≈ 695 g Komunikasi koaksial: HIKVISION-C |
| Model & Aksesori | Model: DS-2CE19U1T-IT3ZF (2.7–13.5 mm) Aksesori opsional: DS-1280ZJ-S (Junction), DS-1275ZJ-SUS (Pole), DS-1276ZJ-SUS (Corner) |
Model: DS-2CE19U1T-AIT3ZF (2.7–13.5 mm) Aksesori opsional: DS-1280ZJ-S (Junction), DS-1275ZJ-SUS (Pole), DS-1276ZJ-SUS (Corner) |
Catatan: Spesifikasi kedua model identik kecuali pada bagian catu daya & konsumsi (lihat baris “Perbedaan Utama”).
