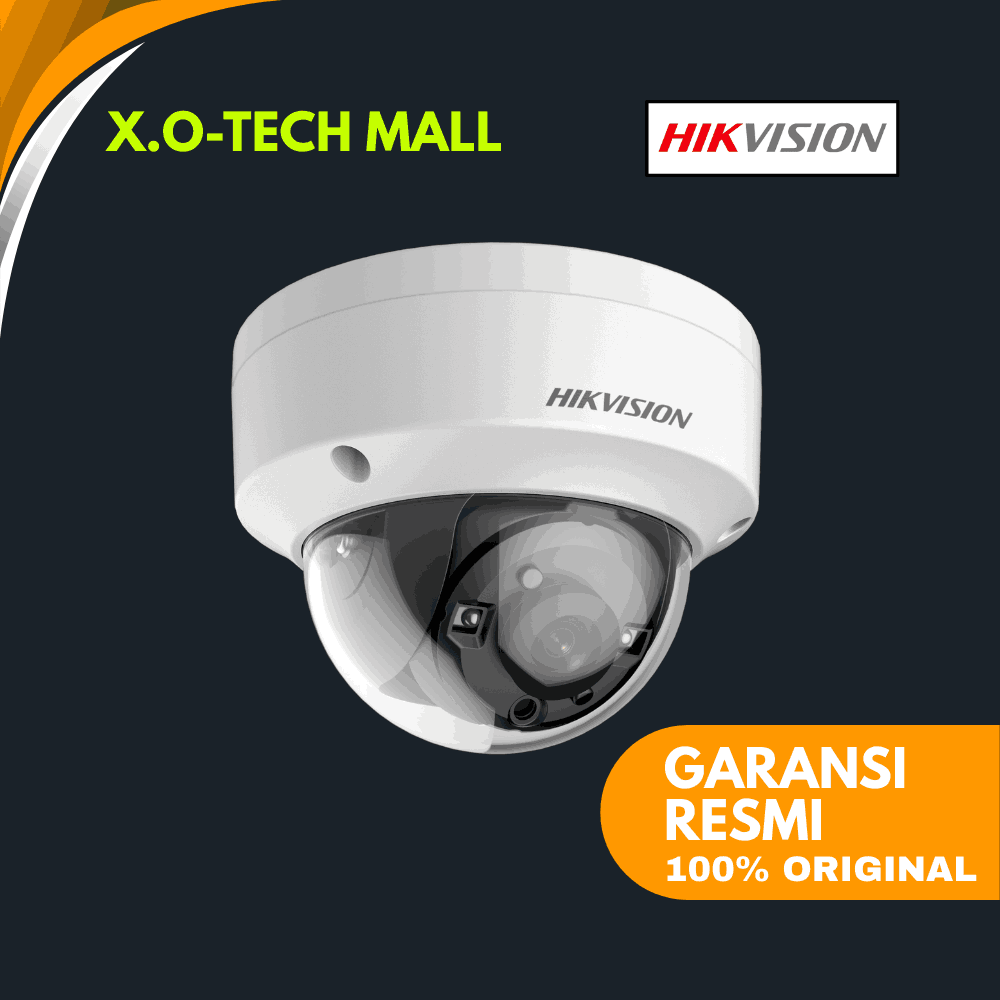

Hikvision DS-2CE57U7T-VPITF
8 MP (4K) Ultra Low Light Vandal Fixed Dome • EXIR 2.0 IR 30 m • True WDR 130 dB • 4-in-1 TVI/AHD/CVI/CVBS
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 8.29 MP CMOS • Resolusi maks.: 3840 × 2160 (4K) • Sistem: PAL/NTSC Min. iluminasi: 0.003 Lux @ F1.6 (AGC ON); 0 Lux dengan IR Shutter: PAL 1/12.5 – 1/50.000 dtk • NTSC 1/15 – 1/50.000 dtk Day/Night: ICR (IR Cut Filter) |
| Lensa & FOV | Lensa tetap (mount M16): 2.8 / 3.6 / 6 mm FOV (H): 102° (2.8 mm) • 79° (3.6 mm) • 51° (6 mm) |
| Pencahayaan (IR) | EXIR 2.0 dengan jangkauan hingga 30 m • Smart IR |
| Video & Output | Frame rate: • TVI: 8MP@12.5/15fps, 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps • AHD: 8MP@12.5/15fps • CVI: 8MP@12.5/15fps • CVBS: PAL/NTSC Output video: Switchable 4-in-1 (TVI/AHD/CVI/CVBS) • OSD via UTC (HIKVISION-C) |
| Pemrosesan Gambar | True WDR ≥ 130 dB • 3D DNR • Pengaturan gambar: Brightness, Sharpness, DNR, Mirror, Smart IR Mode D/N: Auto / Color / BW • WB: Auto/Manual • AGC: Support |
| Penyesuaian Sudut | Pan 0–355° • Tilt 0–75° • Rotate 0–355° |
| Daya & Komunikasi | Catu daya: 12 VDC ±25% • Konsumsi maks.: 4.2 W Komunikasi koaksial: HIKVISION-C (Up-the-Coax) • Rekomendasi: 1 adaptor/kamera |
| Lingkungan & Fisik | Proteksi: IP67 & IK10 (vandal-proof) • Operasi: −40 °C ~ +60 °C • RH ≤ 90% (non-condensing) Material housing: Metal Dimensi: Ø 110.8 × 84.7 mm • Berat: ≈ 480 g |
| Model & Aksesori | Varian lensa: 2.8 / 3.6 / 6 mm Aksesori opsional: DS-1272ZJ-110 / 110B (Wall), DS-1271ZJ-110 (Pendant), DS-1259ZJ (Inclined Ceiling), DS-1258ZJ (Wall), DS-1280ZJ-DM18 (Junction), DS-1275ZJ-SUS (Pole) |
