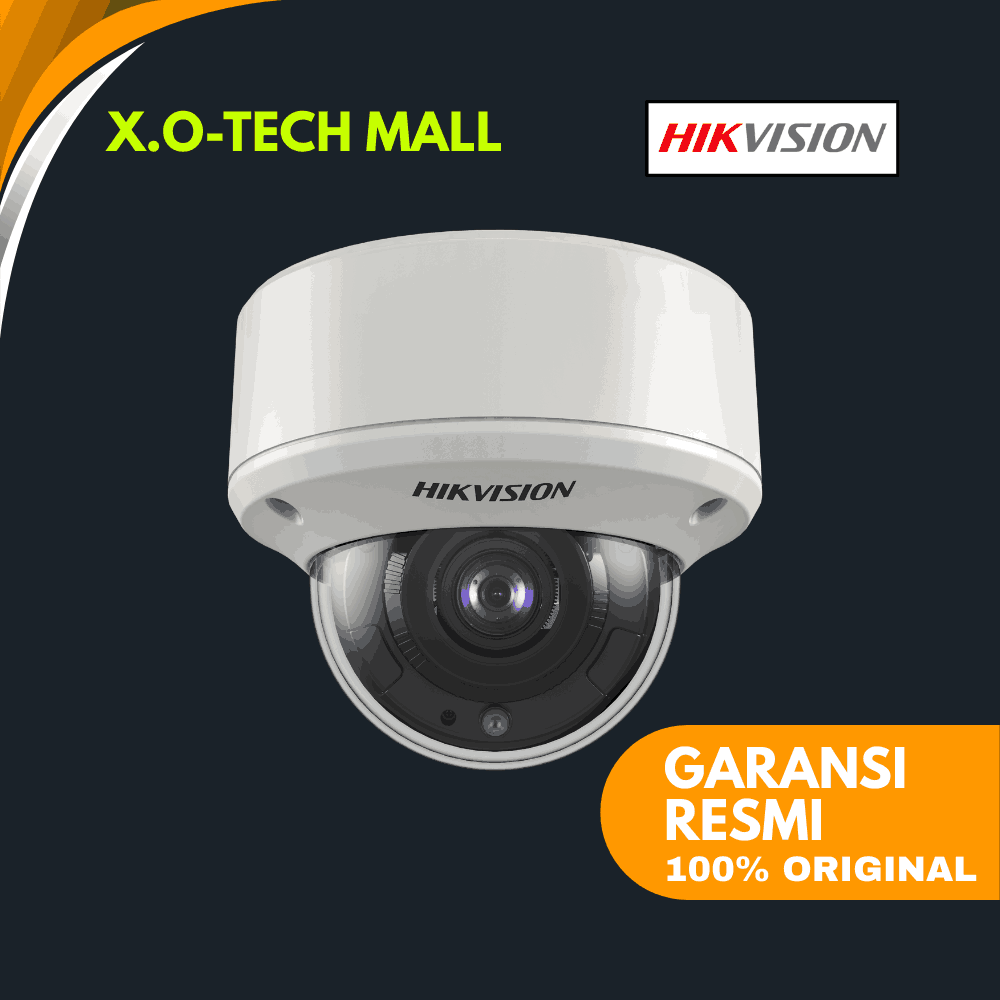

Hikvision DS-2CE59U7T-AVPIT3ZF
8 MP (4K) Ultra Low Light Vandal Motorized Varifocal Dome • EXIR 2.0 IR 60 m • True WDR 130 dB • 4-in-1 (TVI/AHD/CVI/CVBS)
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 8.29 MP Progressive Scan CMOS • Resolusi maks.: 3840 × 2160 (4K) • Sistem: PAL/NTSC Minimum iluminasi: 0.003 Lux @ F2.4 (AGC ON); 0 Lux dengan IR Shutter: PAL 1/12.5 – 1/50.000 dtk • NTSC 1/15 – 1/50.000 dtk Day/Night: IR Cut Filter (ICR) Penyesuaian sudut: Pan 0–355° • Tilt 0–75° • Rotate 0–355° |
| Lensa & FOV | Lensa motorized varifocal 2.7–13.5 mm (Auto Focus) • Mount: Φ14 Sudut pandang horizontal: 108.1° (wide) – 45.6° (tele) |
| Pencahayaan (IR) | EXIR 2.0 • Jarak IR hingga 60 m • Smart IR |
| Video & Output | Frame rate: • TVI: 8MP@12.5/15fps, 5MP@20fps, 4MP@25/30fps, 2MP@25/30fps • AHD: 8MP@12.5/15fps • CVI: 8MP@12.5/15fps • CVBS: 960H P/N Output: 4-in-1 switchable (TVI/AHD/CVI/CVBS) • OSD via UTC (HIKVISION-C) |
| Pemrosesan Gambar | True WDR ≥ 130 dB • 3D DNR • WDR/BLC Pengaturan: Brightness, Mirror, Smart IR, Sharpness, AGC • Mode D/N: Auto / Color / BW • WB: Auto/Manual |
| Daya & Komunikasi | Catu daya: 9.6–14.4 VDC atau 19.2–28.8 VAC • Konsumsi maks.: 8.2 W Komunikasi koaksial: HIKVISION-C (Up-the-Coax) |
| Lingkungan & Fisik | Proteksi: IP67 & IK10 (vandal-proof) Operasi: −40 °C ~ +60 °C • RH ≤ 90% (non-condensing) Material housing: Metal Dimensi: Ø 145.2 × 124.1 mm • Berat: ≈ 640 g |
| Model & Aksesori | Model: DS-2CE59U7T-AVPIT3ZF (2.7–13.5 mm) Aksesori opsional: Wall WML+PC140 • Pendant CPM+PC140 • Pole PM • Corner CM • In-ceiling RCM-2 • Inclined ceiling ABL • Waterproof SRSL/SRS |
