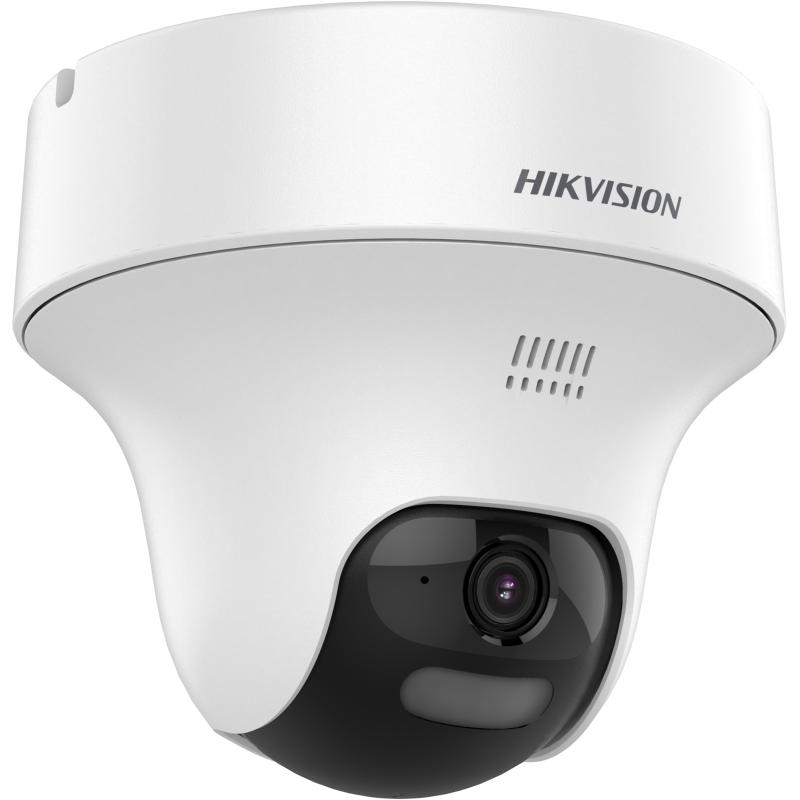

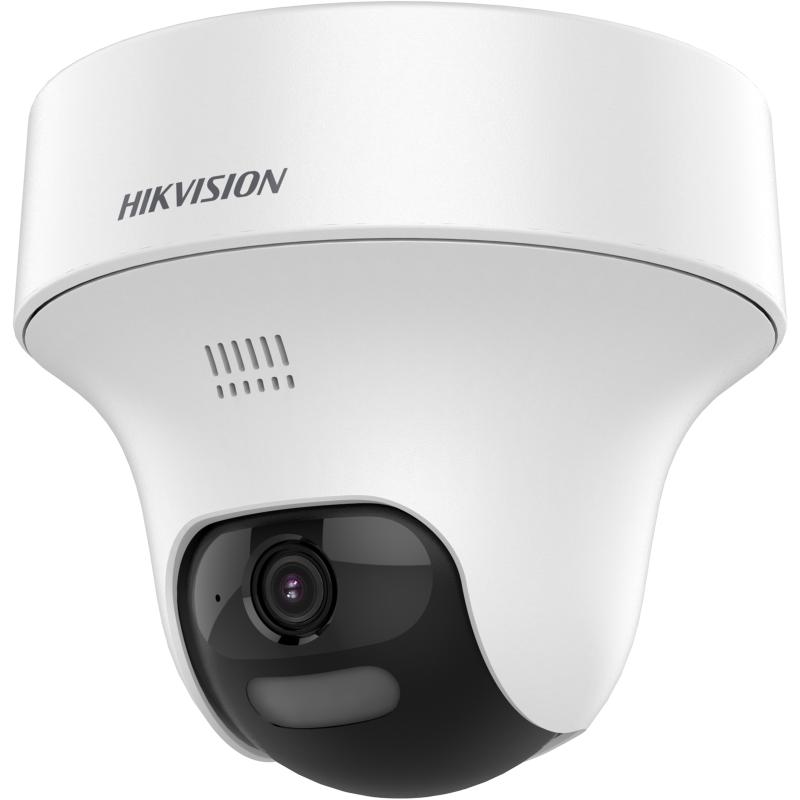

Hikvision DS-2CE70D0T-PTLTS
2 MP Smart Hybrid Light PT Turret Camera dengan Audio Dua Arah
| Kategori | Detail |
|---|---|
| Kamera | Sensor: 2 MP CMOS Resolusi maks: 1920 × 1080 (Full HD) Frame rate: 25 fps (PAL) / 30 fps (NTSC) Shutter: 1/25 s – 1/50,000 s (PAL) • 1/30 s – 1/50,000 s (NTSC) Min. illuminasi: 0.01 Lux @ F1.2 (AGC ON); 0 Lux dengan IR/White Light Day/Night: ICR |
| Lensa & Sudut Pandang | Lensa tetap: 2.8 mm / 3.6 mm FOV 2.8 mm: H 103° • V 56° • D 118° FOV 3.6 mm: H 82.6° • V 44.6° • D 97.6° Mount: M12 |
| Pencahayaan Tambahan | EXIR IR hingga 30 m White Light hingga 20 m Smart Hybrid Light dengan mode auto/manual |
| Pemrosesan Gambar | Smart IR, DNR Digital WDR (DWDR), BLC, HLC OSD Menu (Up the Coax) |
| Audio | Built-in mic & speaker Two-way audio hingga 5 m Echo cancellation & intelligent noise reduction |
| Fitur PT | Pan: 0° – 360° manual Tilt: 0° – 75° manual Rotate: 0° – 360° |
| Antarmuka & Output | 1 × BNC HD analog output (TVI) Kontrol OSD via UTC |
| Daya & Lingkungan | Power: 12 VDC ±25%, max 4.3 W Proteksi: IP67 Material housing: Plastik + Metal Suhu operasi: −40 °C hingga 60 °C Kelembapan: ≤90% (non-kondensasi) |
| Dimensi & Berat | Dimensi: Ø123.7 mm × 110.8 mm Berat: ≈ 340 g |
| Model Tersedia | DS-2CE70D0T-PTLTS (2.8 mm) & DS-2CE70D0T-PTLTS (3.6 mm) |
