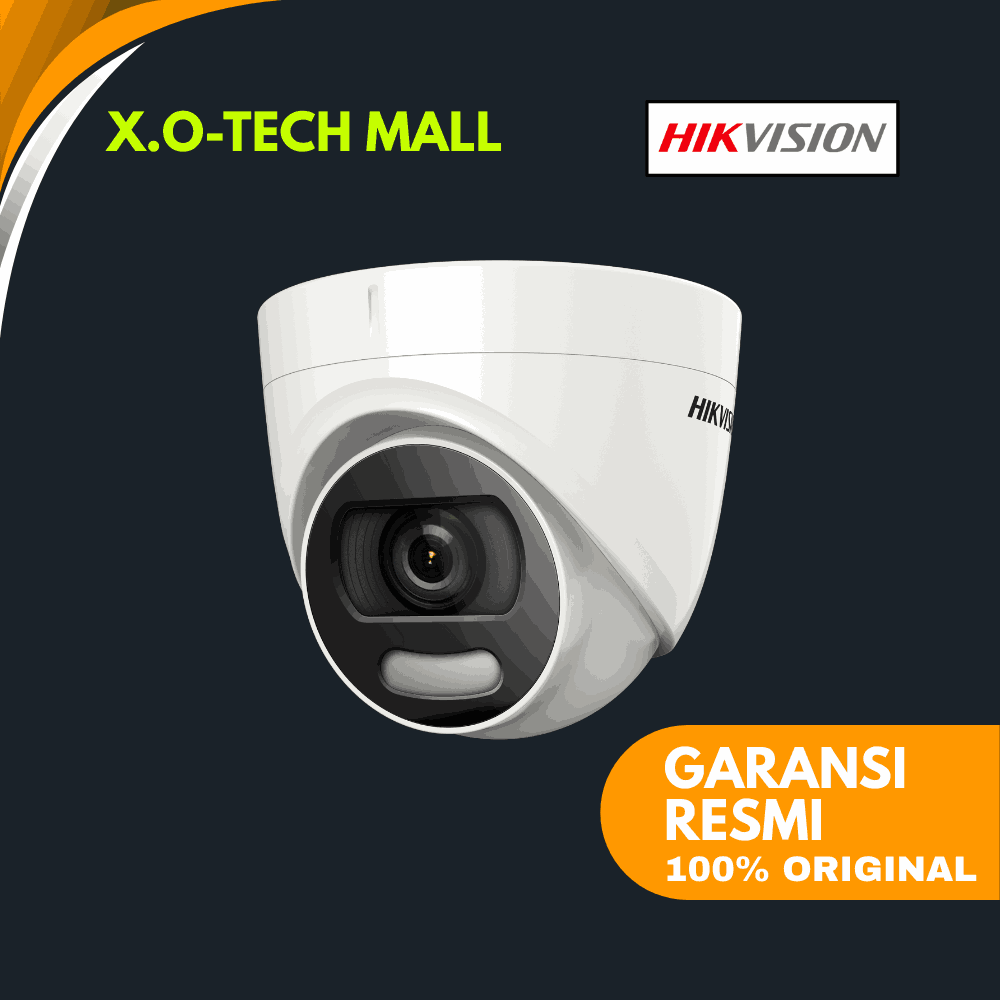

Hikvision DS-2CE72HFT-F
5 MP Full-Time Color Turret Camera
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 5 MP CMOS Resolusi: 2560 × 1944 (5 MP) Min. Illumination: 0.0005 Lux @ F1.0 (AGC ON); 0 Lux dengan White Light Shutter: PAL 1/25 s–1/50,000 s; NTSC 1/30 s–1/50,000 s; Slow Shutter max. 16× Day/Night: Warna penuh WDR: ≥ 130 dB; 3D DNR; BLC, HLC; Mode gambar: STD / HIGH-SAT; AE: WDR/BLC/HLC/Global/HLS/Anti-banding; White Balance: Auto/Manual; AGC: Yes |
| Lensa & FOV | Lensa tetap: 3.6 mm atau 6 mm (M16 mount) FOV 3.6 mm: H 80.1°; FOV 6 mm: H 49.3° |
| Video & Kompresi | Frame Rate TVI: 5 MP@20 fps; 4 MP@30/25 fps; 1080p@30/25 fps CVI: 4 MP@30/25 fps AHD: 5 MP@20 fps; 4 MP@30/25 fps CVBS: PAL/NTSC Video Output: Switchable TVI/AHD/CVI/CVBS |
| Gambar & Fitur | Angle Adjustment: Pan 0–360° • Tilt 0–75° • Rotate 0–360° Fungsi: Privacy Mask 4 area, Motion Detection 4 area, Brightness, Sharpness, Mirror, Smart Light |
| Pencahayaan | Smart White Light (Auto/Off); Jangkauan hingga 20 m |
| Lingkungan & Fisik | IP67 (tahan air/debu); Suhu operasi: –40 °C hingga +60 °C; kelembapan ≤ 90 % (non-condensing) Dimensi: φ 109.82 mm × 85.56 mm (Ø4.32″ × 3.37″) Berat: ≈ 350 g; Material: cover depan metal, bodi plastik |
| Power & Interface | Power: 12 V DC ± 25 % Konsumsi: max. 3.5 W Komunikasi: HIKVISION-C (Up-the-Coax) |
