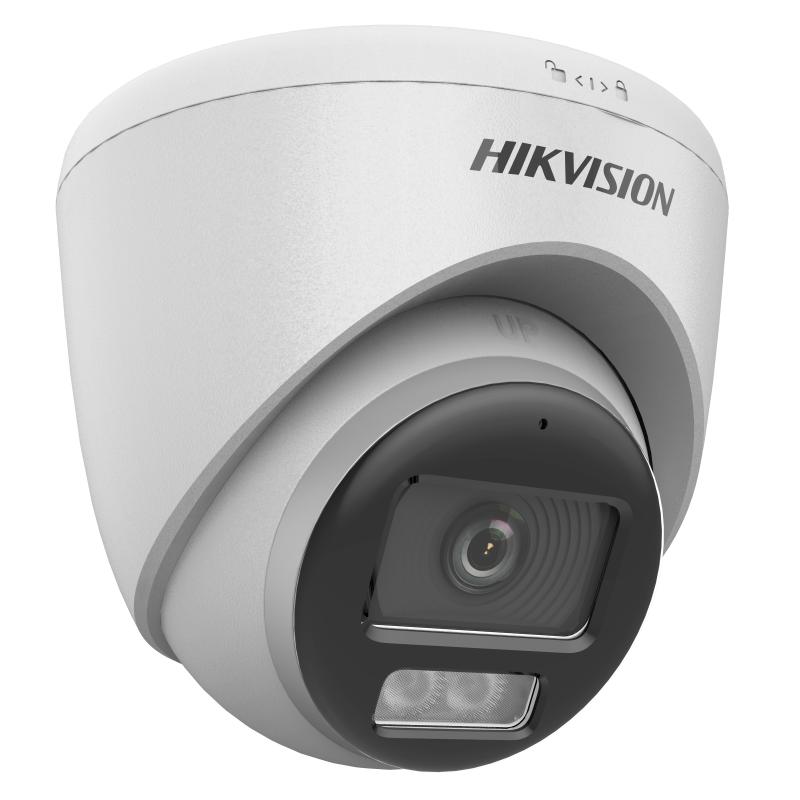

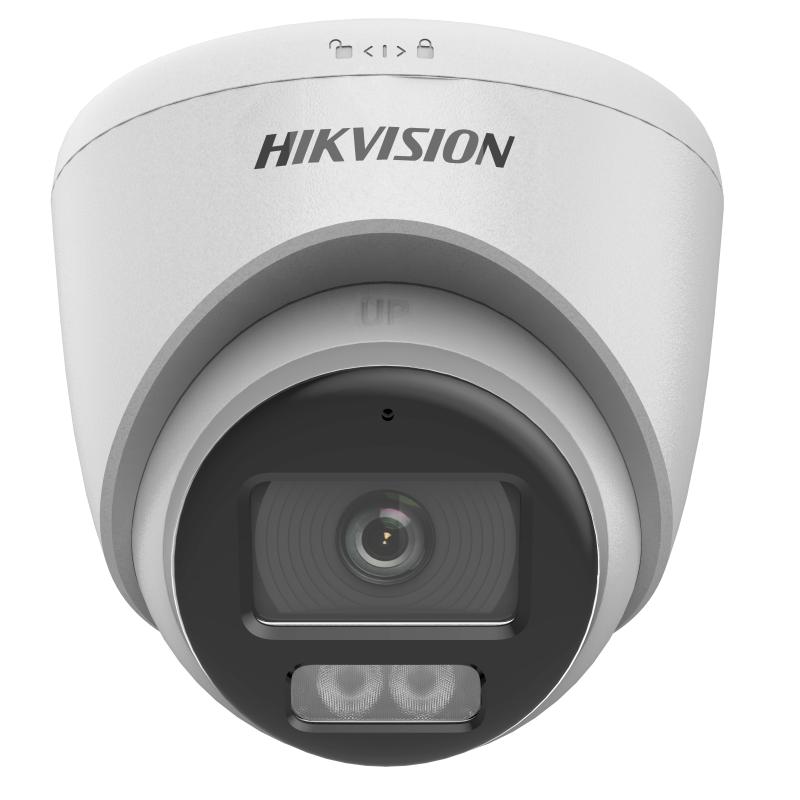

Hikvision DS-2CE72KF0T-LFS
3K ColorVu Smart-Hybrid Light Fixed Turret (Built-in Mic, Audio over Coax)
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 3K CMOS • Sistem sinyal: PAL/NTSC Resolusi maks.: 2960 × 1665 (3K, 16:9) Min. iluminasi: 0.001 Lux @ F1.0 (AGC ON); 0 Lux dengan white light Shutter: PAL 1/25–1/50.000 dtk • NTSC 1/30–1/50.000 dtk Day/Night: ICR • Mode: Auto / Color (Full-Time Color) |
| Lensa & FOV | Lensa tetap: 2.8 mm atau 3.6 mm • Mount: M12 FOV 2.8 mm: H 105° • V 60° • D 143° FOV 3.6 mm: H 80° • V 50° • D 112° |
| Pencahayaan | Smart-Hybrid Light: IR + White Light • Light Alarm: Solid (White Light) Jarak: IR hingga 40 m • White Light hingga 40 m White Light mode: Auto / Off |
| Video & Output | Frame rate: • TVI: 3K@20fps, 4MP@25/30fps, 1080p@25/30fps • AHD: 5MP@20fps, 4MP@25/30fps • CVI: 4MP@25/30fps • CVBS: PAL/NTSC Output video: switchable TVI/AHD/CVI/CVBS • OSD via UTC (HIKVISION-C) |
| Audio | Built-in Mic • Audio over Coax (AoC, TVI) • Pickup radius hingga ±5 m |
| Pemrosesan Gambar | 2D DNR • Digital WDR (DWDR) • BLC • HLC • HLS • Smart IR Mode gambar: STD / HIGH-SAT / HIGHLIGHT White Balance: Auto / Outdoor / Global / Manual AE mode: DWDR / BLC / HLC / Global / HLS Pengaturan: Brightness, Sharpness, Anti-Banding, AGC |
| Penyesuaian Sudut | Pan 0–360° • Tilt 0–75° • Rotate 0–360° |
| Daya & Interface | Daya: 12 VDC ±25% • Konsumsi: maks. 5.2 W Rekomendasi: 1 adaptor untuk 1 kamera • Komunikasi: HIKVISION-C |
| Lingkungan & Fisik | Proteksi: IP67 • Operasi: −40 °C ~ 60 °C • RH ≤ 90% (non-condensing) Material: Enclosure: Plastic • Main body: Metal Dimensi: Ø 109.98 × 98.27 mm (Ø 4.33″ × 3.87″) Berat: ± 320 g |
| Model & Aksesori | Model: DS-2CE72KF0T-LFS (2.8 mm) • DS-2CE72KF0T-LFS (3.6 mm) Aksesori opsional: DS-1272ZJ-110-TRS (Wall), DS-1275ZJ-SUS (Pole), DS-1276ZJ-SUS (Corner), DS-1280ZJ-S (Junction), DS-1281ZJ-S (Inclined ceiling), DS-2280ZJ (Wall) |
