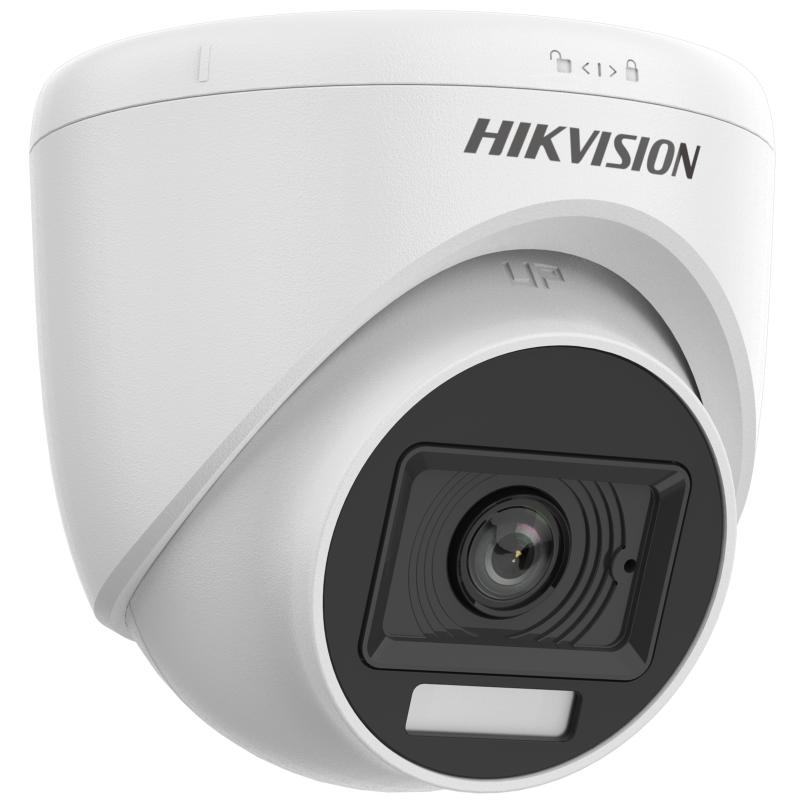

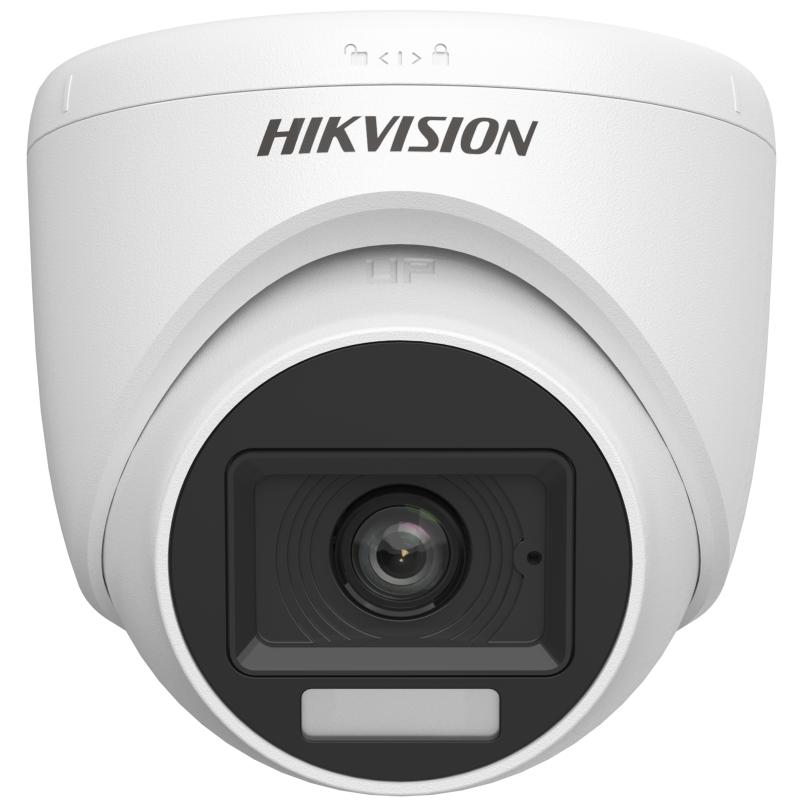

Hikvision DS-2CE76K0T Series
Spesifikasi Lengkap – DS-2CE76K0T-LPFS & DS-2CE76K0T-EXLPF
| Kategori | DS-2CE76K0T-LPFS | DS-2CE76K0T-EXLPF |
|---|---|---|
| Sensor & Resolusi | 1/3″ CMOS, 5 MP (3K, 16:9), 2960×1665 @ 20 fps | 1/3″ CMOS, 5 MP (3K, 16:9), 2960×1665 @ 20 fps |
| Min. Illuminasi | 0.01 Lux @ F1.2, 0 Lux dengan IR/White Light | 0.02 Lux @ F1.2, 0 Lux dengan IR/White Light |
| Lensa | 2.8 mm / 3.6 mm fixed lens | 2.8 mm / 3.6 mm fixed lens |
| Illuminator | EXIR Hybrid Light: IR 20 m + White Light 20 m | EXIR Hybrid Light: IR 20 m + White Light 20 m |
| Fitur Gambar | Smart IR, DNR, ICR | Smart IR, DNR, ICR |
| Audio | Built-in Mic, Audio over Coax (TVI only) | Tidak ada Mic internal (tanpa audio) |
| Smart Features | Smart Lighting (with AcuSense DVR), OSD Menu via UTC | Smart Lighting (with AcuSense DVR), OSD Menu via UTC |
| Video Output | TVI / AHD / CVI / CVBS (switchable) | TVI / AHD / CVI / CVBS (switchable) |
| Proteksi | IP67 – Indoor/Outdoor | IP67 – Indoor/Outdoor |
| Daya | 12 VDC | 12 VDC |
| Dimensi | Ø 85 mm × 70 mm (approx) | Ø 85 mm × 70 mm (approx) |
