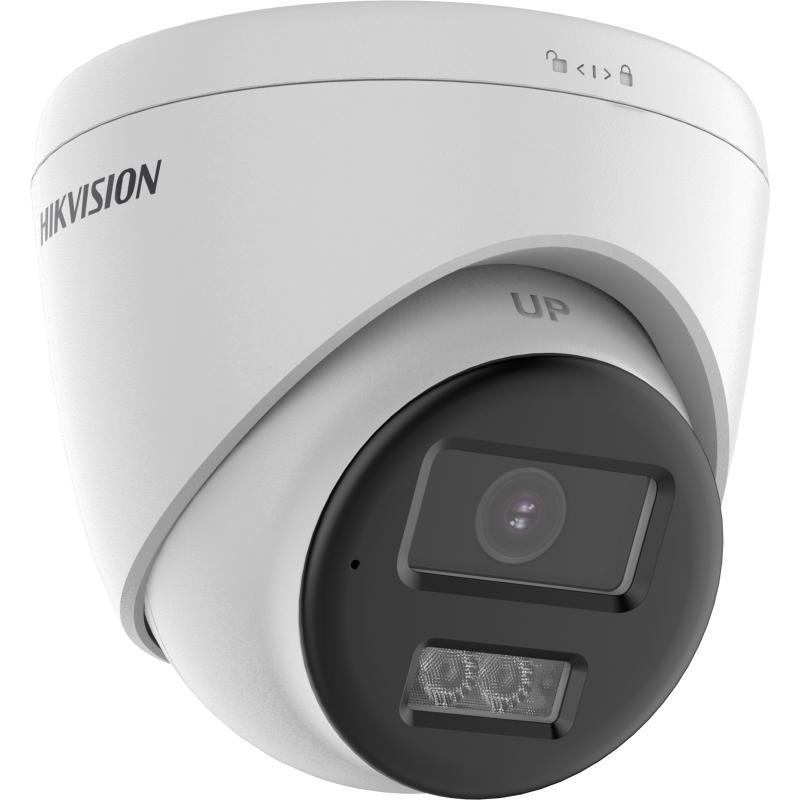

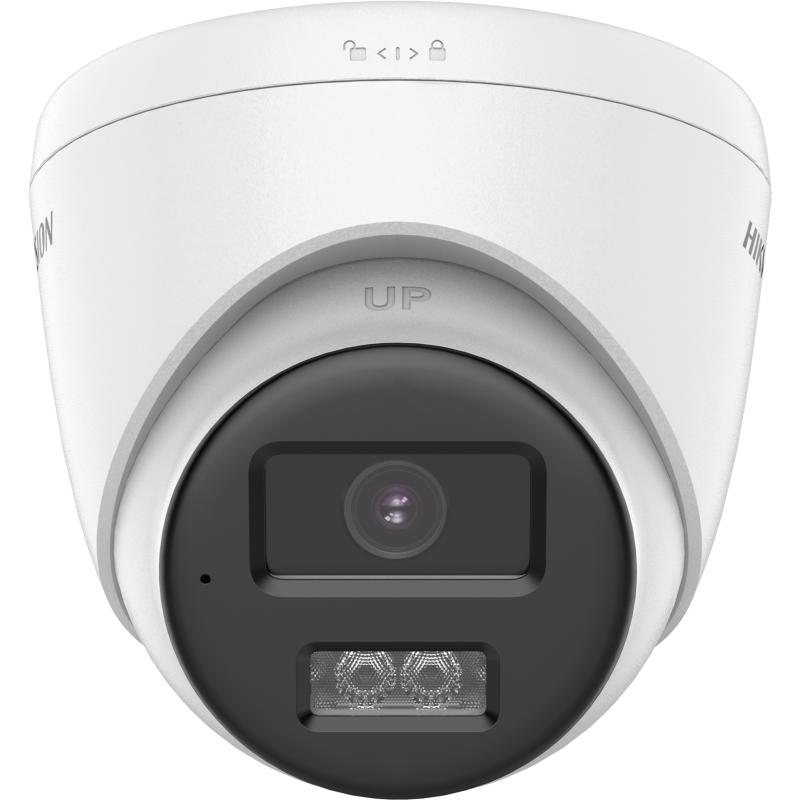

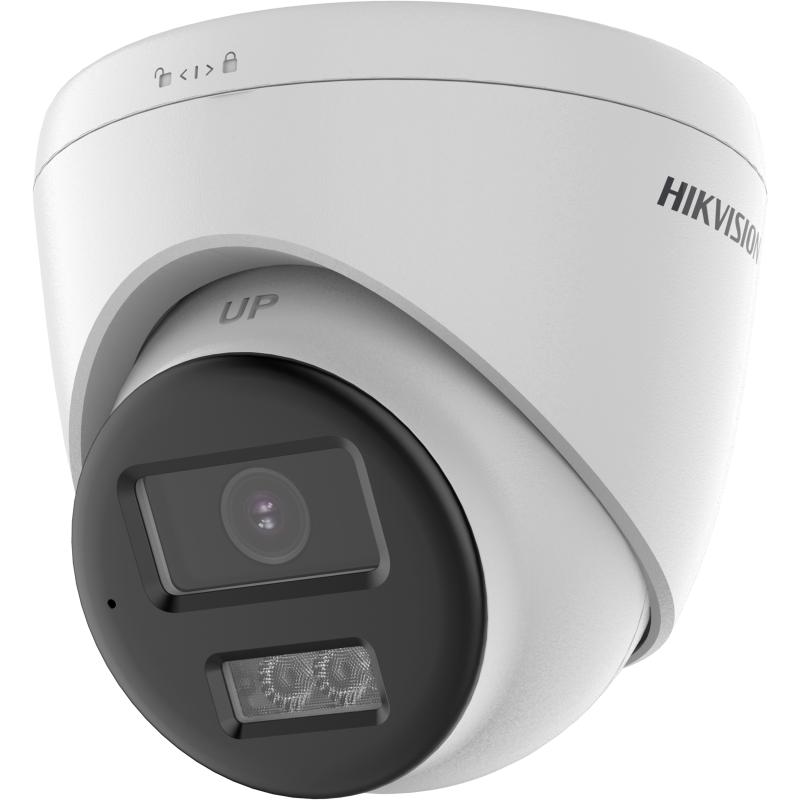

Hikvision DS-2CE78K0T-LTS
3K Two-Way Audio Fixed Turret (2.8 mm / 3.6 mm)
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 3K CMOS Resolusi Maks: 2960 × 1665 Sistem Sinyal: PAL / NTSC Shutter: PAL 1/12.5 s – 1/50,000 s • NTSC 1/15 s – 1/50,000 s Day/Night: ICR (IR-cut filter) Penyesuaian Sudut: Pan 0°–360° • Tilt 0°–75° • Rotate 0°–360° |
| Lensa & Sudut Pandang | Lensa tetap: 2.8 mm atau 3.6 mm (M12) FOV 2.8 mm: H 105° • V 62° • D 131° FOV 3.6 mm: H 80° • V 48° • D 112° |
| Pencahayaan (Illuminator) | Smart-Hybrid Light (IR & White Light) Jarak: IR hingga 40 m • White Light hingga 40 m Minimum Illuminasi: 0.01 Lux @ F1.6 (AGC ON) • 0 Lux dengan IR/White Light |
| Audio & Komunikasi | Audio dua arah: Mic internal (radius ±5 m) • Speaker internal 2 W (radius ±5 m) Audio over Coaxial • Echo Cancellation • AI Noise Reduction • AGC |
| Gambar & Frame Rate | TVI: 3K @ 10/12.5/20/25 fps • 4MP @ 25/30 fps • 1080p @ 25/30 fps Pengaturan/Enhancement: Anti-banding, Brightness, Sharpness, Smart IR, DWDR, BLC, HLC, Global, HLS, 2D DNR, White Balance (Auto/Manual) |
| Antarmuka & Output | 1 × HD analog video output (TVI) |
| Daya & Konsumsi | 12 VDC ±25% • Maks. 6.4 W Rekomendasi: 1 adaptor per kamera |
| Material, Dimensi & Berat | Material: Body metal • Enclosure plastik Dimensi: Ø110 × 102.7 mm (Ø4.33″ × 4.04″) Berat: ±370 g (0.81 lb) |
| Lingkungan & Proteksi | Operasional: –40 °C hingga 60 °C • RH ≤ 90% (non-condensing) Proteksi: IP67 |
| Komunikasi & Model | Protokol: HIKVISION-C Model Tersedia: DS-2CE78K0T-LTS (2.8 mm) • DS-2CE78K0T-LTS (3.6 mm) |
