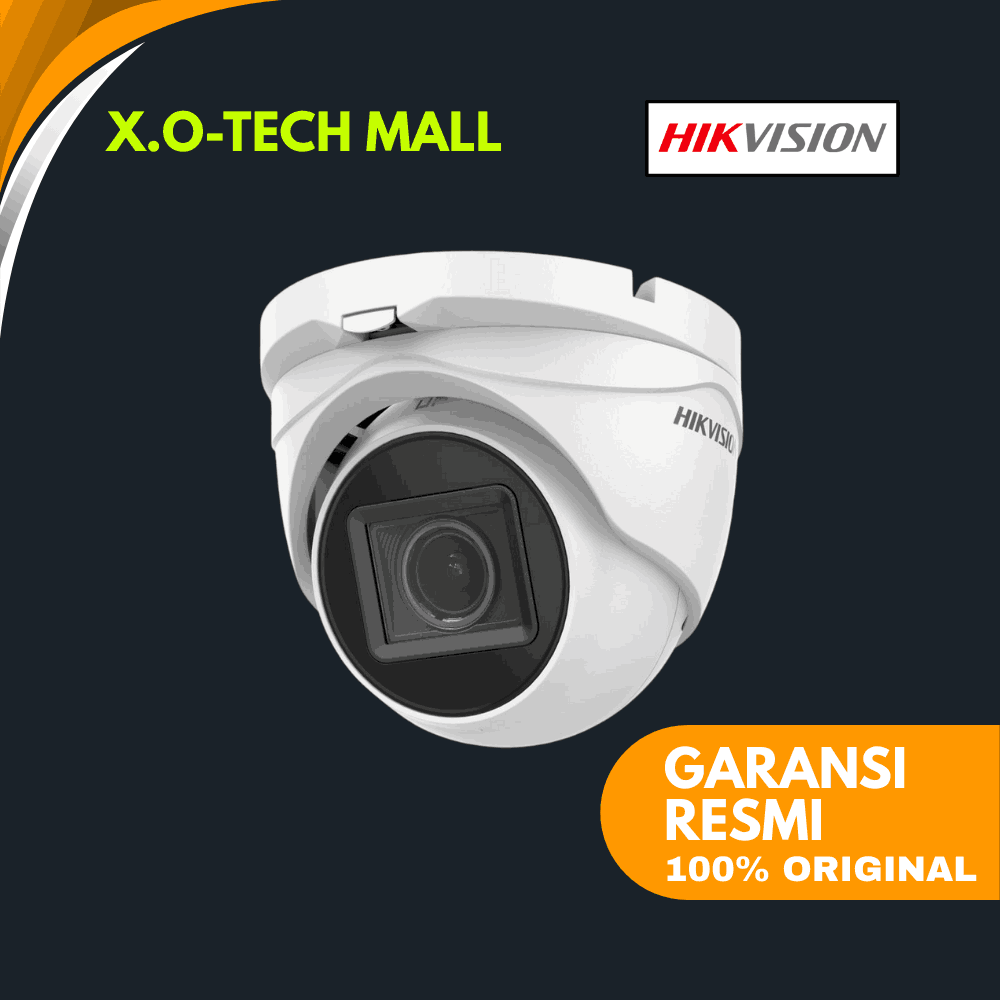

Hikvision DS-2CE79U1T-IT3ZF
8 MP (4K) Motorized Varifocal Turret • EXIR 2.0 IR 60 m • DWDR • 4-in-1 (TVI/AHD/CVI/CVBS) • IP67
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 8.29 MP Progressive Scan CMOS • Resolusi maks.: 3840 × 2160 (4K) • Sistem: PAL/NTSC Min. iluminasi: 0.01 Lux @ F2.4 (AGC ON); 0 Lux dengan IR Shutter: PAL 1/12.5–1/50.000 dtk • NTSC 1/15–1/50.000 dtk Day/Night: IR Cut Filter (ICR) • Penyesuaian sudut: Pan 0–360° • Tilt 0–75° • Rotate 0–360° |
| Lensa & FOV | Lensa motorized varifocal 2.7–13.5 mm (Auto Focus) • Mount: Φ14 Sudut pandang horizontal (H): 108.1° – 45.6° |
| Pencahayaan (IR) | EXIR 2.0 + Smart IR • Jarak IR hingga 60 m |
| Video & Output | Frame rate (koaksial HD): • TVI: 8MP@12.5/15fps, 5MP@20fps, 4MP@25/30fps, 2MP@25/30fps • AHD: 8MP@12.5/15fps • CVI: 8MP@12.5/15fps • CVBS: 960H P/N Output video: 4-in-1 switchable (TVI/AHD/CVI/CVBS) • OSD via UTC (HIKVISION-C) |
| Pemrosesan Gambar | DWDR (Digital WDR) • 2D DNR • BLC/HLC Mode D/N: Auto / Color / BW • WB: Auto/Manual • Pengaturan: Brightness, Mirror, Sharpness, AGC |
| Daya & Antarmuka | Catu daya: 9–15 VDC • Konsumsi maks.: 8.6 W Antarmuka video: 1× HD analog (koaksial) |
| Lingkungan & Fisik | Proteksi: IP67 • Suhu operasi: −40 °C ~ +60 °C • RH ≤ 90% (non-condensing) Material housing: Metal Dimensi: 134.3 × 123.86 × 110.24 mm (P × L × T) • Berat: ± 580 g Komunikasi koaksial: HIKVISION-C |
| Model & Aksesori | Model: DS-2CE79U1T-IT3ZF (2.7–13.5 mm) Aksesori opsional: DS-1273ZJ-130-TRL (Wall), DS-1275ZJ-SUS (Pole), DS-1276ZJ-SUS (Corner), DS-1280ZJ-M (Junction), DS-1281ZJ-M (Inclined Ceiling) |
