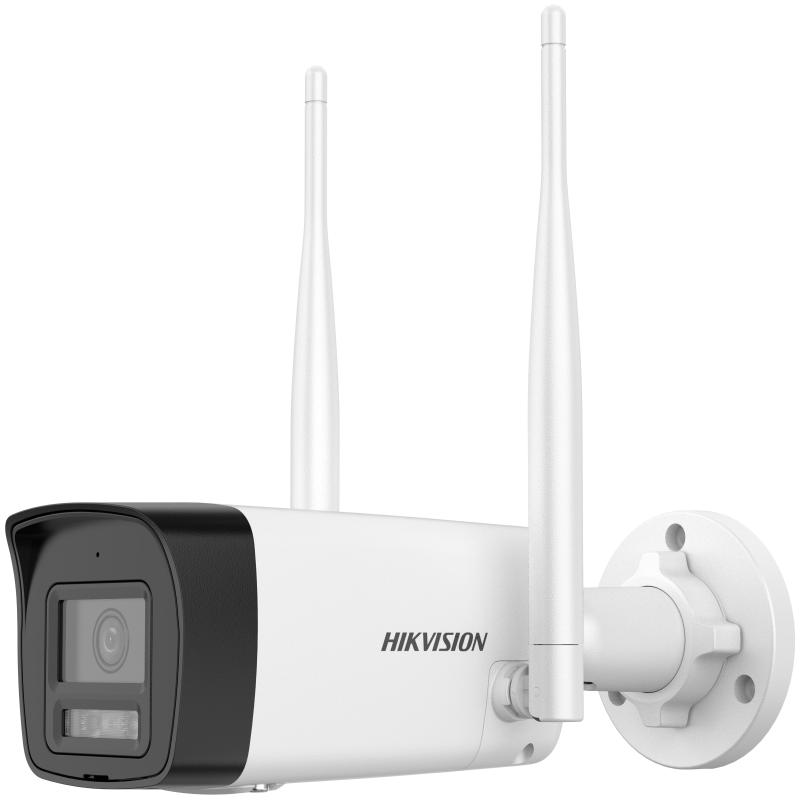

Hikvision DS-2CV1043G2-LIDW (F)(B)
4 MP Outdoor Wi-Fi Bullet Camera (Wi-Fi 6, Two-Way Audio, IP66)
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 1/2.7″ Progressive Scan CMOS Resolusi Maks: 2560 × 1440 (4 MP) Minimum Illuminasi: Color 0.005 Lux @ F1.6, AGC ON • B/W 0 Lux dengan IR Shutter: 1/3 s – 1/100 000 s Day/Night: IR cut filter Pan/Tilt/Rotate: 0–360° / 0–90° / 0–360° |
| Lensa & Sudut Pandang | Tipe Lensa: Fixed focal (2.8 mm, 4 mm, 6 mm) FOV (H × V × D):• 2.8 mm: 94° × 49° × 114°• 4 mm: 70° × 35° × 85°• 6 mm: 46° × 24° × 54° Aperture: F1.6 Mount: M12 Depth of Field:• 2.8 mm: 1.3 m – ∞• 4 mm: 2 m – ∞• 6 mm: 4.1 m – 44 m |
| DORI (4 mm) | Deteksi: 100 m Observasi: 39 m Rekognisi: 20 m Identifikasi: 10 m |
| Illuminator | Tipe Cahaya Tambahan: IR + White Light Jarak: Hingga 30 m IR Wavelength: 850 nm Smart Supplement Light: Ya |
| Video & Kompresi | Main Stream: 20 fps @ 4 MP / 1080p / 720p Sub-Stream: 20 fps @ 768 × 432 Kompresi: Main – H.265 / H.264; Sub – H.265 / H.264 / MJPEG Bit Rate: 32 Kbps – 8 Mbps ROI: 1 fixed region |
| Audio | Tipe: Mono Kompresi: G.711 (ulaw) / AAC-LC Bit Rate: G.711 – 64 Kbps; AAC-LC – 16–64 Kbps Sampling Rate: 8 / 16 kHz Noise Filtering: Ya |
| Jaringan & Wi-Fi | Ethernet: RJ45 10/100 Mbps Wi-Fi: IEEE 802.11b/g/n/ax (Wi-Fi 6), 2.4 GHz, 20/40 MHz, hingga 300 Mbps Protokol: TCP/IP, DHCP, DNS, RTSP, RTCP, RTP, NTP, IGMP, IPv4/IPv6, UPnP, QoS Keamanan: password, watermark, MAC authentication, audit log, WSSE, digest ONVIF Profile: S / G / T |
| Penyimpanan & Antarmuka | Penyimpanan On-board: microSD/microSDHC/SDXC, hingga 512 GB Built-in Mic & Speaker: Ya Reset Key: Ya |
| Event | Motion Detection dengan target: manusia & kendaraan Tautan: email, capture, recording, suara alarm, notifikasi pusat monitoring |
| Daya & Material | Power: 12 VDC ±25 % (maks 6.5 W), reverse polarity protection, adapter included Material: Base – plastik; Front cover – logam; Back cover – plastik |
| Dimensi & Berat | Dimensi: 260.9 × 113.9 × 67.4 mm Berat: ≈ 310 g Berat dengan Paket: ≈ 550 g |
| Lingkungan & Approvals | Operasional: –30 °C – +60 °C, RH ≤95 % non-condensing Rating IP66: tahan debu & air (IP66) Sertifikasi: EMC, RF, Safety sesuai CE, CB, CE-RED, RoHS, WEEE, REACH |
