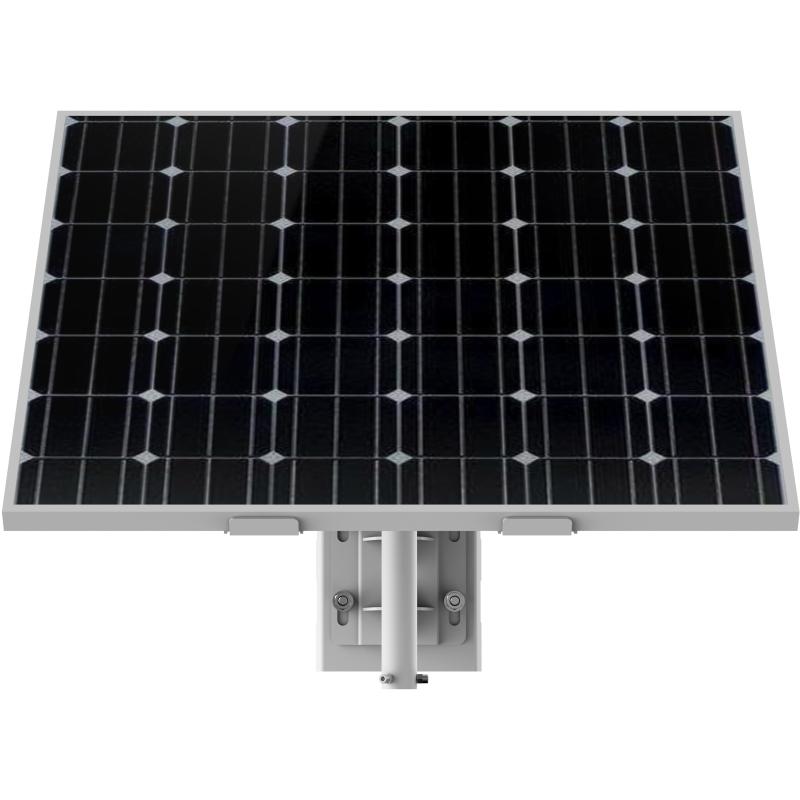

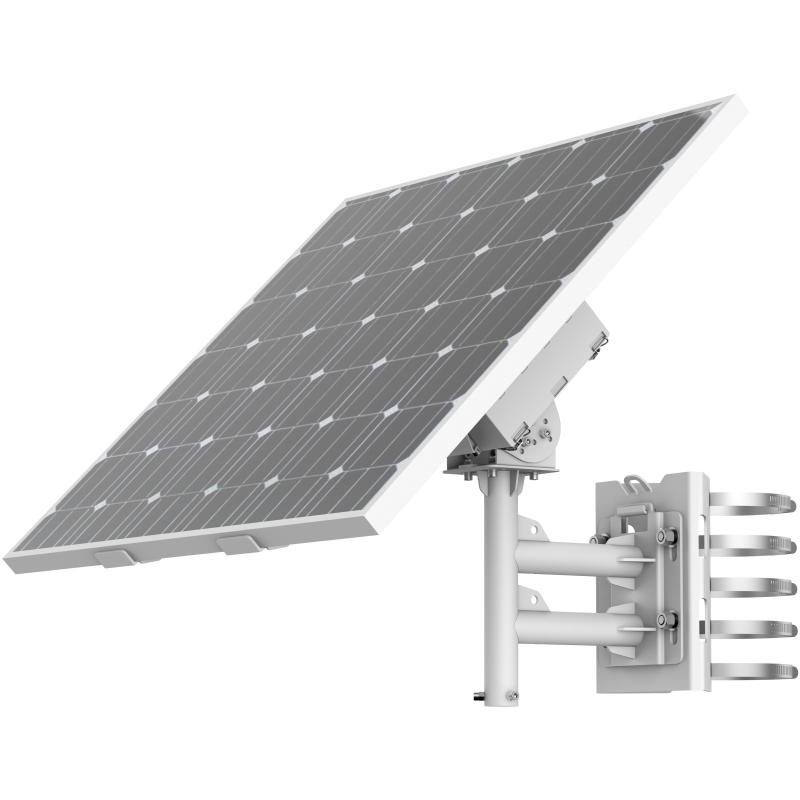

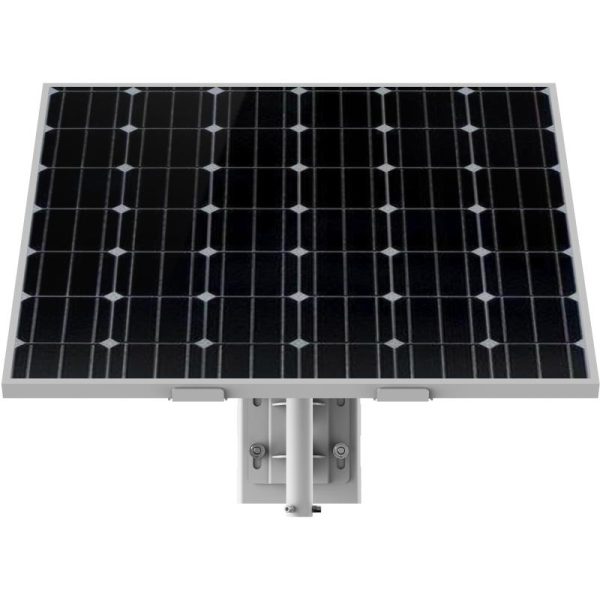

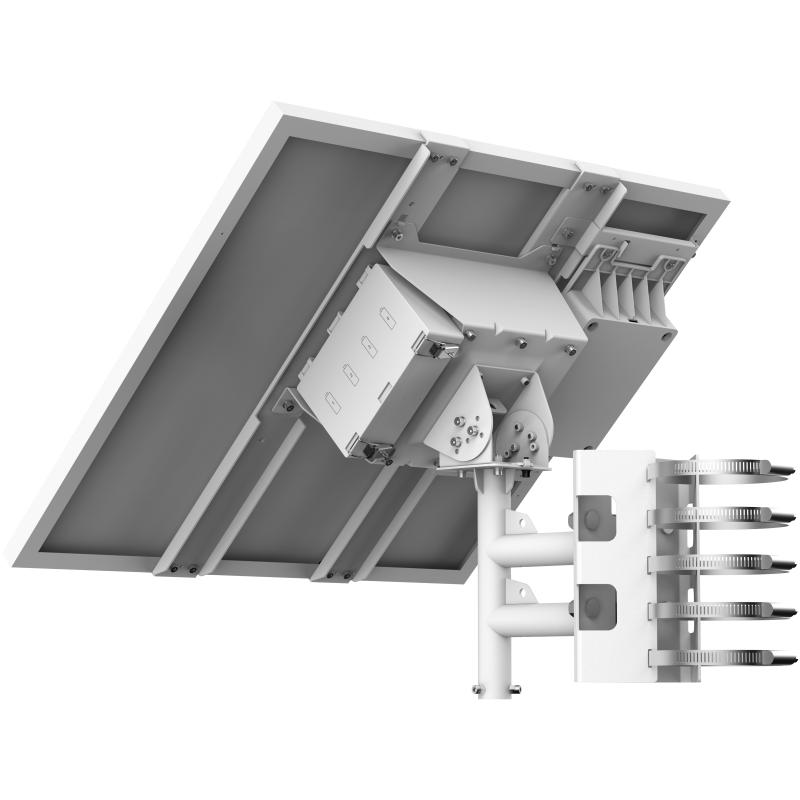

Hikvision DS-2XS6K01-C36S80
Solar Power Module with 80 W Panel & 360 Wh Battery (IP66)
| Kategori | Detail |
|---|---|
| Solar Panel & Battery | Panel Photovoltaic: 80 W Battery Tipe: Lithium, Kapasitas: 360 Wh (4× 90 Wh) |
| Interface & Output | RS-485 (half duplex) — untuk koneksi ke Solar Power 4G Camera Kit Output: 9–12.6 V DC, max 30 W via 2 konektor DC Ø5.5 mm |
| Dimensi & Berat | Dimensi Maksimal Terpasang: 640.4 × 735.9 × 760 mm Dimensi Paket: 862 × 352 × 762 mm Berat: ≈ 24 kg; Dengan Paket: ≈ 30 kg |
| Informasi Battery | Tegangan: 10.8 V Masa Operasi: Charging – –20 °C to 45 °C; Discharging – –20 °C to 60 °C Lifespan: 500+ siklus pengisian & pelepasan Berat Battery: ≈ 2.74 kg (0.685 kg per unit) |
| Proteksi & Ketahanan | Proteksi: IP66 Ketahanan Angin: Level 12 (hingga 40 m/s) Fitur: Battery management, tampilan status, proteksi suhu tinggi/rendah, proteksi charge-discharge, low-battery sleep, remote wake-up |
| Sertifikasi & Regulasi | EMC: CE-EMC, RCM, IC Safety: CB (IEC 62368-1) Lingkungan: CE-RoHS, WEEE, REACH |
