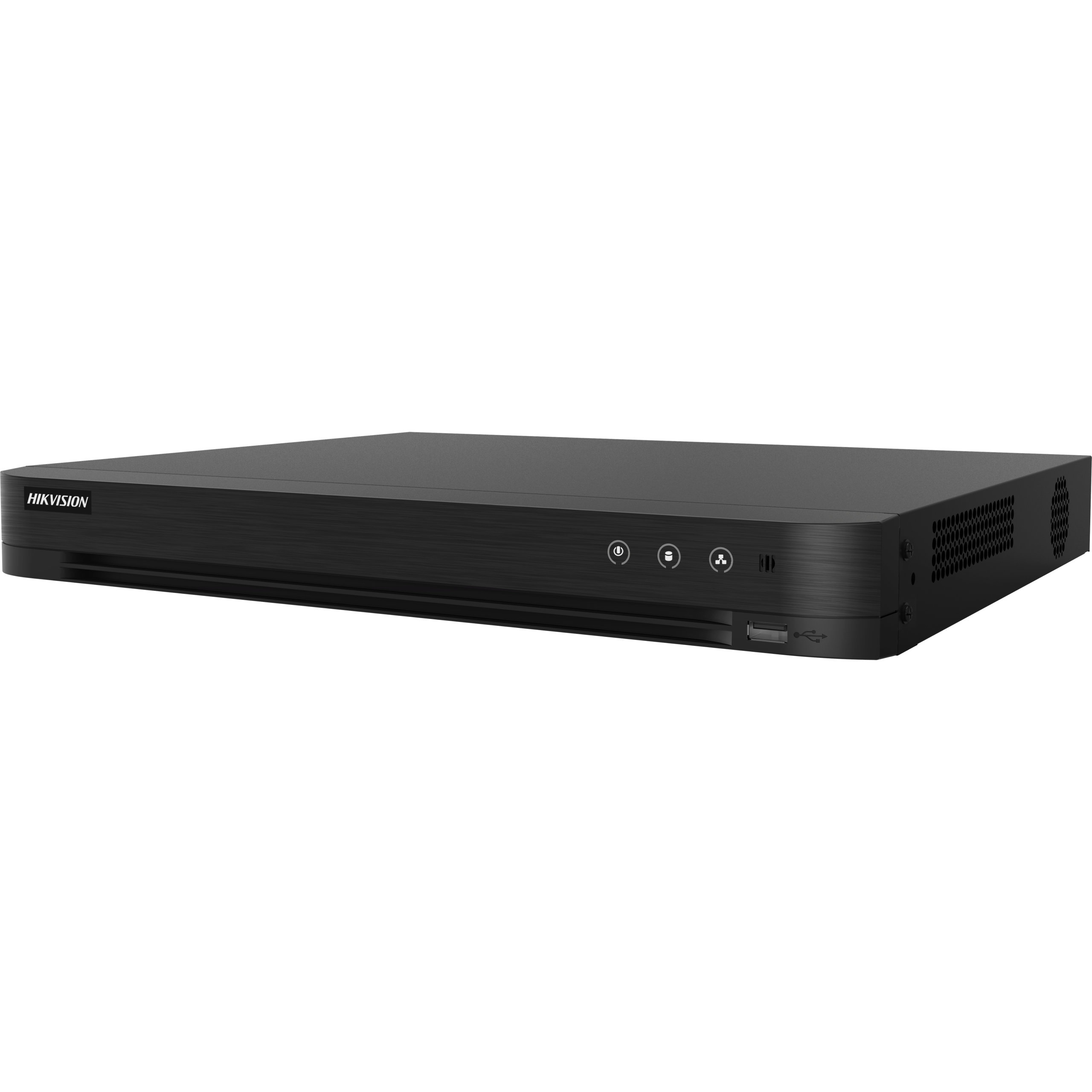

Hikvision DS-7216HGHI-M1
16-ch 720p 1U H.265 DVR • Motion Detection 2.0 (Human/Vehicle) • 4-in-1 (TVI/AHD/CVI/CVBS) + IP
- Deep learning Motion Detection 2.0 dengan klasifikasi human/vehicle
- Kompresi H.265 Pro+/H.265 Pro/H.265 untuk efisiensi penyimpanan
- Input video: HDTVI/AHD/CVI/CVBS/IP • Audio via coaxial
- Hingga 18-ch IP (maks. 5 MP) • Rekam 1080p Lite@15fps
- Transmisi HDTVI 720p hingga 1200 m (kabel koaksial kualitas baik)
| Kategori | Spesifikasi |
|---|---|
| Video & Audio | IP video input: 2-ch (hingga 18-ch), resolusi IP hingga 5 MP; dukung kamera IP H.265+/H.265/H.264+/H.264 Analog video input: 16-ch BNC (1.0 Vp-p, 75 Ω), mendukung coaxitron HDTVI: 1080p25/30, 720p25/30 • AHD: 1080p25/30, 720p25/30 • HDCVI: 1080p25/30, 720p25/30 • CVBS: PAL/NTSC Output: HDMI 1-ch (1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz); VGA 1-ch (resolusi sama) Audio: In 1-ch RCA; Out 1-ch RCA; Two-way audio 1-ch (via audio input pertama) • Sinkron playback: 16-ch |
| Rekaman & Kompresi | Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Resolusi rekam: 1080p Lite/720p/VGA/WD1/4CIF/CIF Frame rate (main stream): • Untuk akses 1080p: 1080p lite/720p lite/WD1/4CIF/VGA @15fps; CIF @25fps (PAL)/30fps (NTSC) • Untuk akses 720p: 720p/WD1/4CIF/VGA @15fps; CIF @25/30fps (PAL/NTSC) • Definisi standar: WD1/4CIF/VGA/CIF @25/30fps (PAL/NTSC) Sub-stream: 1080p/720p: CIF/QVGA @15fps; SD: CIF/QVGA @25/30fps Bitrate video: 32 Kbps – 4 Mbps • Dual-stream: Ya • Tipe stream: Video / Video+Audio Audio compression: G.711u (bitrate 64 Kbps) |
| Jaringan | Remote connection: hingga 128 koneksi Protokol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF LAN: 1 × RJ45 10/100M self-adaptive Ethernet |
| Penyimpanan & Cadangan | SATA: 1 × SATA, kapasitas hingga 10 TB per HDD USB: belakang 2 × USB 2.0 • Smart search untuk playback efisien |
| Fungsi Cerdas | Motion Detection 2.0 berbasis deep learning (klasifikasi target manusia/kendaraan) |
| Umum (Daya & Lingkungan) | Daya: 12 VDC, 1.5 A • Konsumsi: ≤ 18 W Suhu kerja: −10 °C s.d. +55 °C • Kelembapan: 10% – 90% (non-condensing) |
| Dimensi & Berat | 260 × 222 × 45 mm (W × D × H) • ≤ 2.2 kg (unit) |
| Model Tersedia | DS-7216HGHI-M1(C) |
