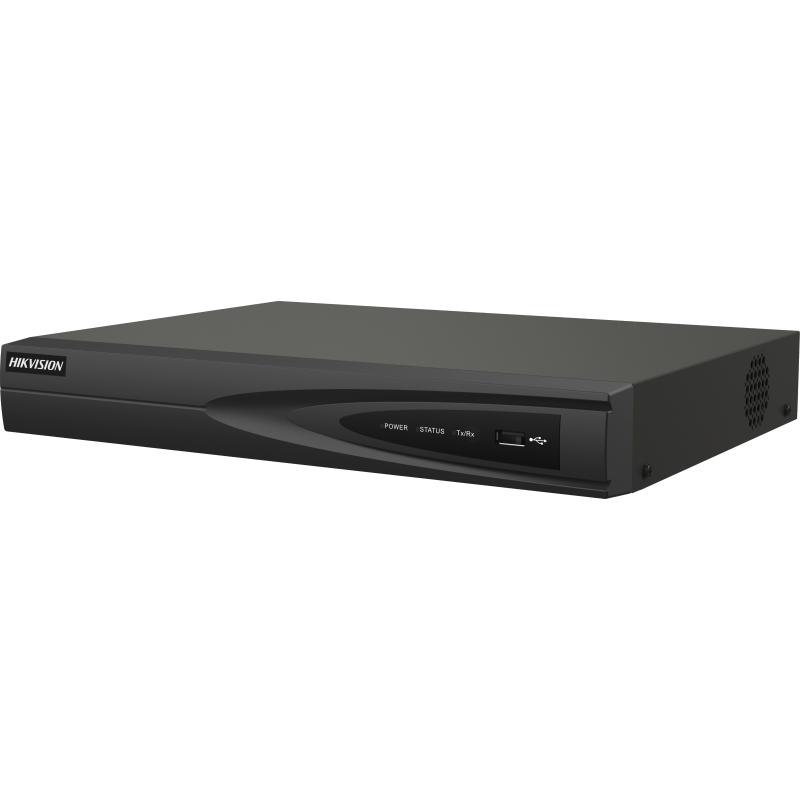

Hikvision DS-7604NI-Q1/4P
4-Ch PoE NVR – 4K decoding, AI Detection
| Kategori | Detail |
|---|---|
| Sistem Video & Audio | Input IP Video: 4-ch, hingga 8 MP Bandwidth Masuk: 40 Mbps Bandwidth Keluar: 80 Mbps HDMI Output: 1 ch, hingga 4K (4096×2160/3840×2160) @30 Hz VGA Output: 1 ch, hingga 1080p @60 Hz Audio Output: 1 ch RCA (Linear, 1 kΩ) Two-Way Audio: 1 ch RCA (2.0 Vp-p, 1 kΩ) |
| Decoding & Playback | Format Dekode: H.265+ / H.265 / H.264+ / H.264 Resolusi Rekam: 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p, dll. Kapasitas Dekode: 1-ch @ 8 MP (30 fps) atau 5-ch @ 1080p (30 fps) Playback Sinkron: hingga 4-ch |
| Smart / AI Features | Motion Detection 2.0 dengan analisis Manusia / Kendaraan (hingga 4-ch) |
| Penyimpanan | 1 × SATA interface Mendukung HDD hingga 8 TB |
| Jaringan & PoE | 1 × RJ-45 LAN 10/100 Mbps 4 × RJ-45 PoE 10/100 Mbps, IEEE 802.3 af/at |
| Antarmuka & USB | USB: 2 × USB 2.0 (depan & belakang) Alarm In/Out: 4/1 (opsional, model tertentu) |
| Umum & Daya | Tegangan: 48 VDC, 1.35 A Konsumsi: ≤ 10 W (tanpa HDD, PoE off), ≤ 50 W (dengan PoE) |
| Lingkungan Operasional | Suhu Kerja: –10 °C hingga +55 °C Kelembapan: 10% – 90% (non-condensing) |
| Dimensi & Berat | Dimensi (W × D × H): 320 × 240 × 48 mm Berat: ≤ 1 kg (tanpa HDD) |
| Jaringan & Protokol | Remote Connection: hingga 32 Protokol: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
