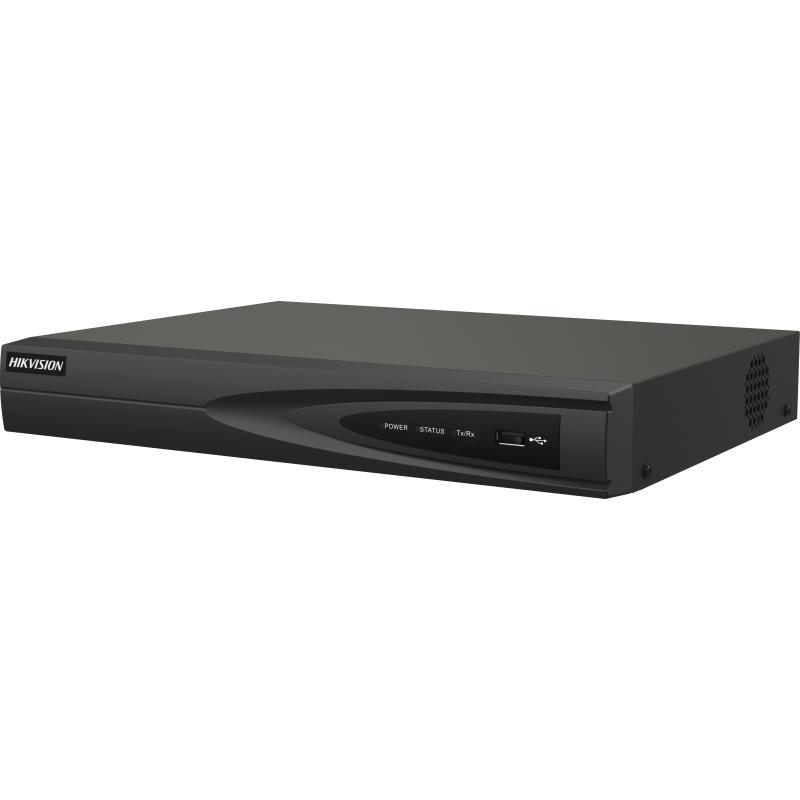

Hikvision DS-7616NI-Q1
16-Ch 1U 4K NVR – AI Motion Detection 2.0
| Kategori | Detail |
|---|---|
| Video & Audio Input/Output | Input IP Video: 16-ch, hingga 8 MP Incoming Bandwidth: 160 Mbps • Outgoing Bandwidth: 80 Mbps HDMI Output: 1-ch hingga 4K @30 Hz (HDMI & VGA simultan) VGA Output: 1-ch hingga 1080p @60 Hz Audio Output: 1-ch RCA (Linear, 1 kΩ) Two-way Audio: 1-ch RCA (2.0 Vp-p, 1 kΩ) |
| Decoding & Playback | Format Dekode: H.265+ / H.265 / H.264+ / H.264 Resolusi Rekam: Hingga 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p, dll. Dekode: 1-ch @ 8 MP (30 fps) / 3-ch @ 4 MP (30 fps) / 6-ch @ 1080p (30 fps) Playback Sinkron: hingga 16-ch |
| Smart / AI Feature | Motion Detection 2.0 dengan analisis Human/Vehicle (hingga 4-ch) |
| Penyimpanan | 1 × SATA interface Mendukung HDD hingga 8 TB |
| Jaringan & Antarmuka | 1 × RJ-45 Gigabit LAN (10/100/1000 Mbps) USB: 2 × USB 2.0 (depan & belakang) Alarm In/Out: Opsional (4/1) |
| Jaringan & Protokol | Remote Connection: hingga 32 Protokol: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Daya & Lingkungan | Power Supply: 12 VDC, 1.5 A Konsumsi: ≤ 10 W (tanpa HDD) Suhu Kerja: –10 °C hingga +55 °C Kelembapan: 10% – 90% (non-condensing) |
| Dimensi & Berat | Dimensi (W × D × H): 320 × 240 × 48 mm Berat: ≤ 1 kg (tanpa HDD) |
| Sertifikasi | FCC, CE (EN 55032 / 61000-3-2/3 / 50130-4 / 55035) |
