DS-7616NI-Q2/16P

Rp3.435.100

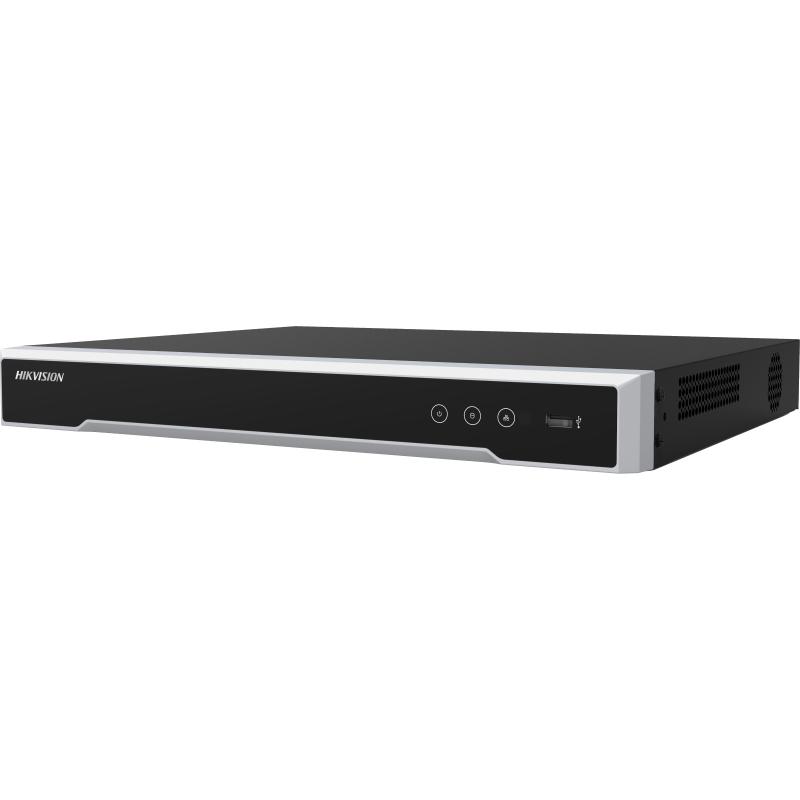

Hikvision DS-7616NI-Q2/16P

16-Ch PoE NVR – 1080P/4K + AI Detection

  • Mendukung decoding hingga 6-ch @ 1080P atau 1-ch @ 8 MP :contentReference[oaicite:1]{index=1}
  • Motion Detection 2.0 dengan Human/Vehicle Analysis (hingga 4-ch) :contentReference[oaicite:2]{index=2}
  • Input bandwidth maksimal 160 Mbps untuk 16-ch IP video :contentReference[oaicite:3]{index=3}
  • 16 port PoE independen (IEEE 802.3 af/at), total PoE power ≤ 150 W :contentReference[oaicite:4]{index=4}
  • 2 × SATA HDD (hingga 8 TB per disk) :contentReference[oaicite:5]{index=5}
  • Desain 1U rack-mount, dimensi BODI 385 × 315 × 52 mm :contentReference[oaicite:6]{index=6}

16-Ch PoE
1080P / 8 MP
AI Detection
160 Mbps
2 SATA HDD
1U Rack

Hubungi Admin
Kategori: Tag: Brand:

Hikvision DS-7616NI-Q2/16P

16-Ch PoE 1U 4K NVR – AI Motion Detection 2.0

Kategori Detail
Smart / AI Feature Motion Detection 2.0 dengan Human/Vehicle Analysis (hingga 4-ch)
Video & Audio I/O Input IP: 16-ch, hingga 8 MP
Bandwidth Masuk: 160 Mbps • Bandwidth Keluar: 80 Mbps
HDMI: 1-ch hingga 4K @30 Hz (HDMI & VGA simultan)
VGA: 1-ch hingga 1080p @60 Hz
Audio Output: 1-ch RCA (Linear, 1 kΩ)
Two-Way Audio: 1-ch RCA (2.0 Vp-p, 1 kΩ)
Decoding & Playback Format: H.265+, H.265, H.264+, H.264
Decoding: 1-ch @ 8 MP (30 fps) / 5-ch @ 1080p (30 fps)
Playback simultan hingga 16-ch
Penyimpanan 2 × SATA HDD (hingga 8 TB per disk)
Jaringan & PoE PoE: 16 port independen (IEEE 802.3 af/at), total daya ≤ 150 W
LAN: 1 × RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
Antarmuka Eksternal USB: 2 × USB 2.0
Alarm I/O: Opsional (4 In / 1 Out)
Daya & Fisik Power: 100–240V AC, max 3.2 A
Konsumsi: ≤ 15 W (PoE off)
Dimensi (W × D × H): 385 × 315 × 52 mm
Berat: ≤ 2.6 kg (tanpa HDD)
Lingkungan Operasional Suhu: –10 °C hingga +55 °C
Kelembapan: 10%–90% (non-condensing)
Protokol & Remote Maks. Remote Connection: 32
Protokol: TCP/IP, DHCP, Hik-Connect, DDNS, HTTPS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP™
Sertifikasi FCC, CE (EN 55032, EN 61000-3-2/3, EN 50130-4, EN 55035)

Informasi Tambahan

Berat 2600 gram
Dimensi 385 × 315 × 52 cm
