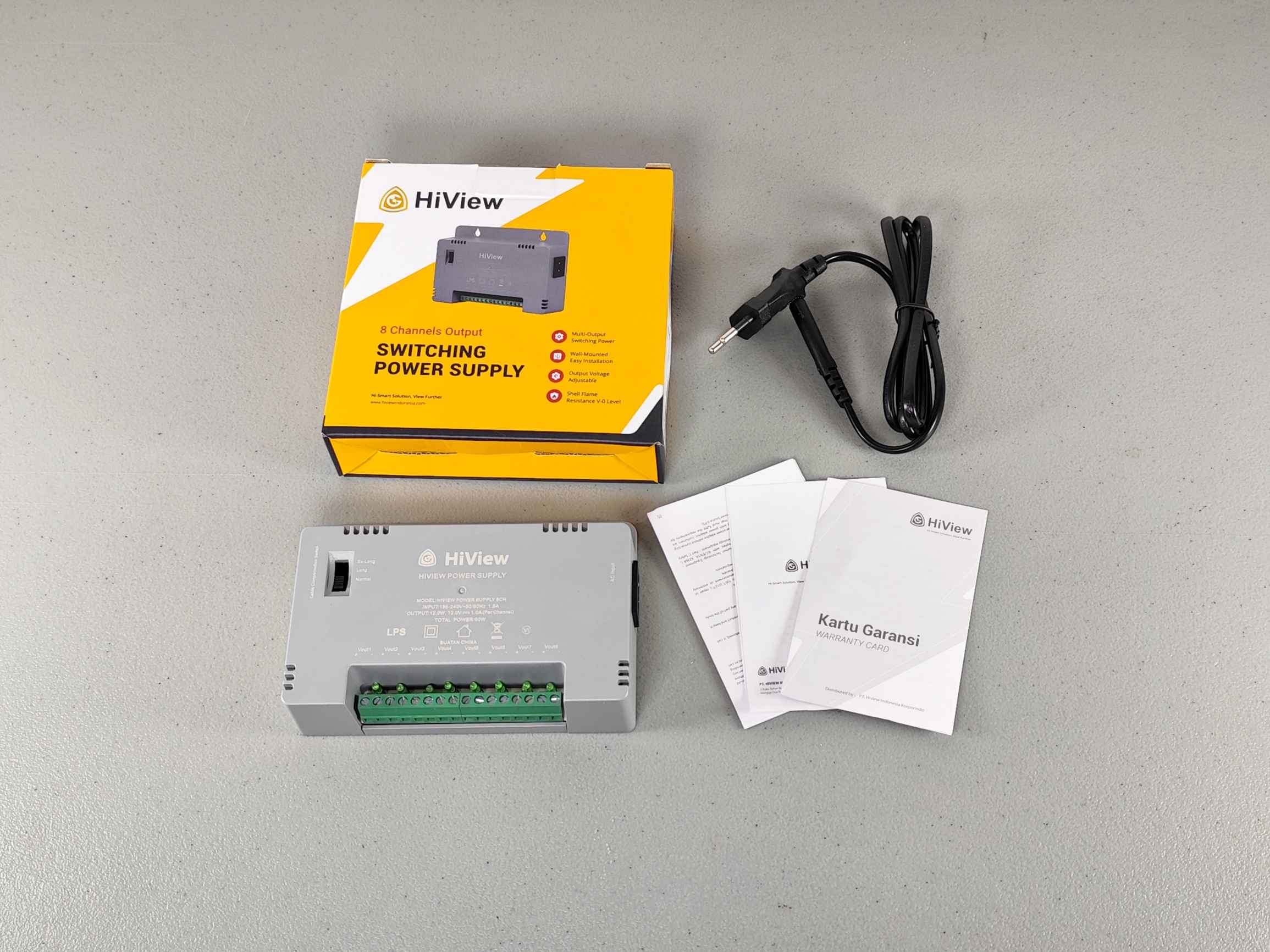

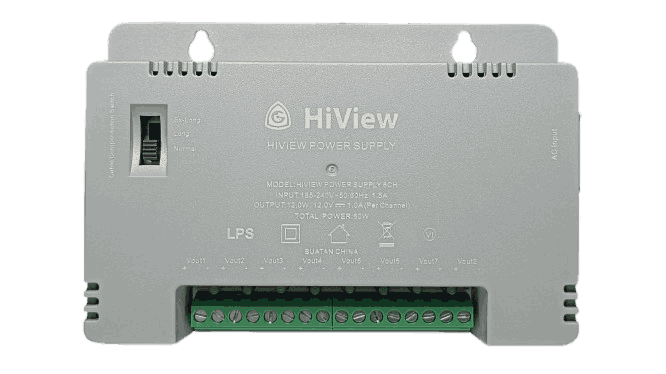

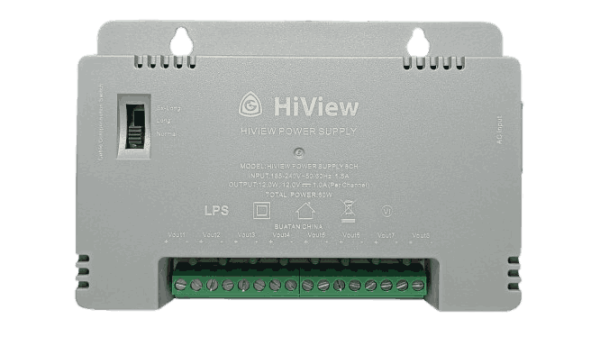

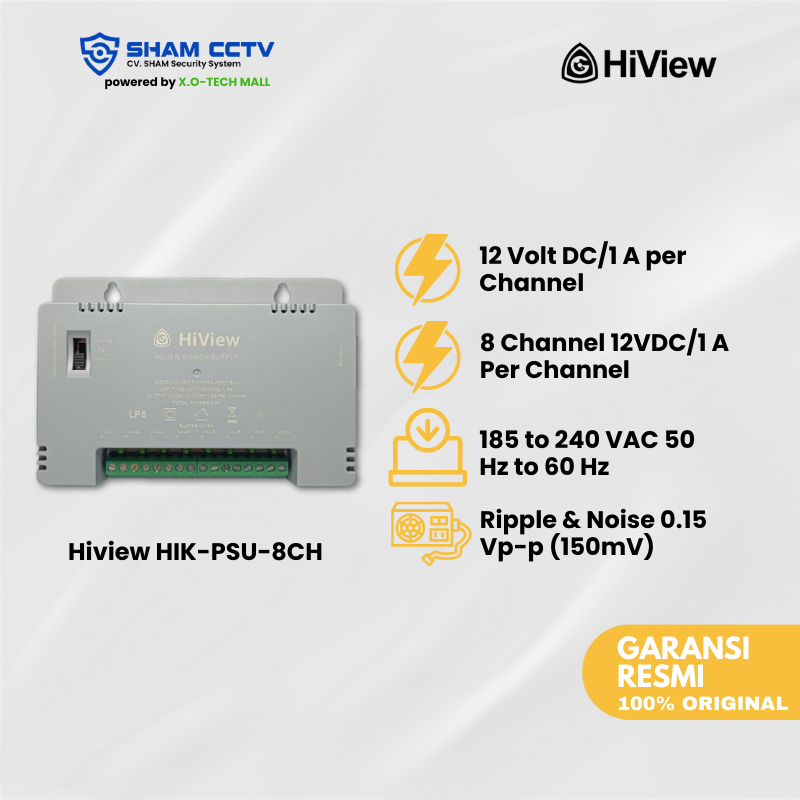

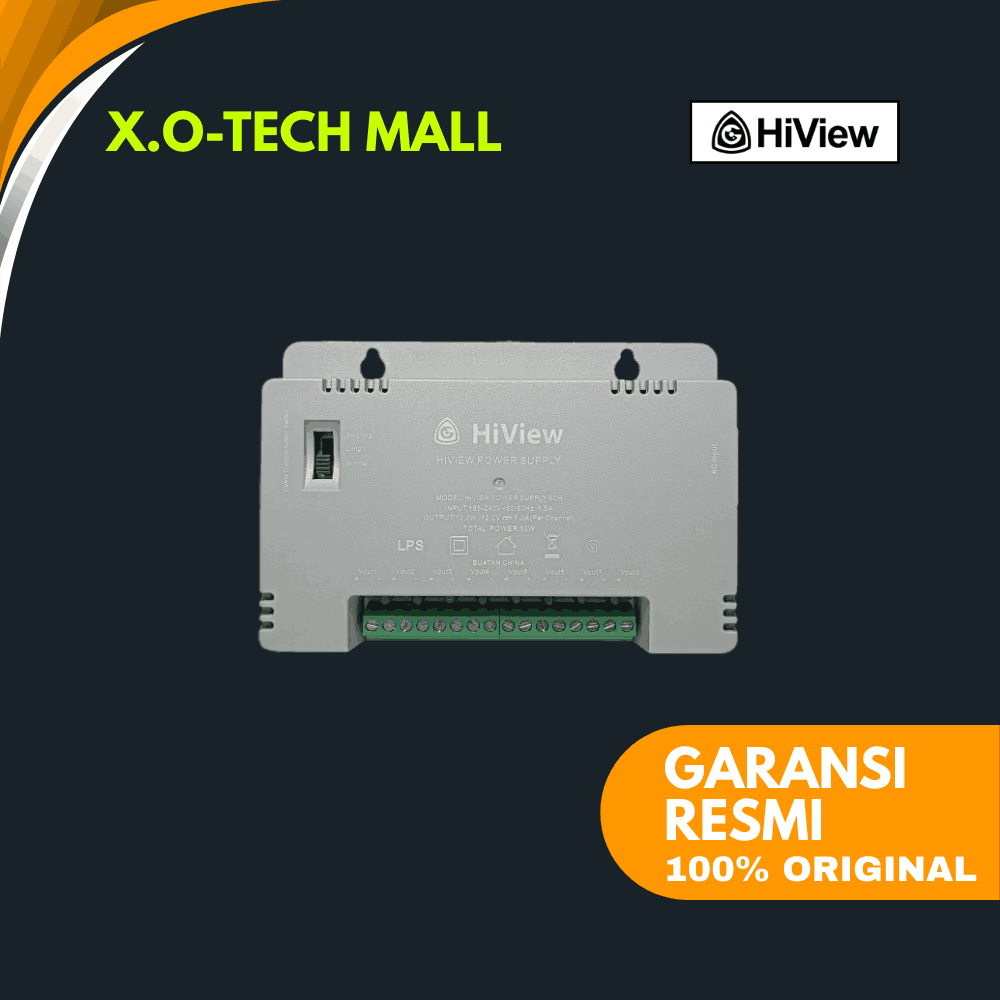

HIK-PSU-8CH
Switching Power Supply Unit – 8 Channel
| Kategori | Detail |
|---|---|
| Input Voltage | 185 VAC – 240 VAC |
| Output Voltage | Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC |
| Rated Output Current | Normal: 5 A Long: 4.5 A Ex-Long: 4 A |
| Rated Power | Output per channel: 12 W Total: 60 W |
| Power Consumption (Idle) | ≤0.21 W |
| Efficiency | ≥87% |
| Port | Input: 2-core female seat C8 (European standard cable) Output: 8 channel output terminal |
| Protection | Overcurrent, overvoltage, short circuit Surge: Common mode ±4 kV, Differential mode ±2 kV Static: Air discharge ±8 kV, Contact discharge ±6 kV |

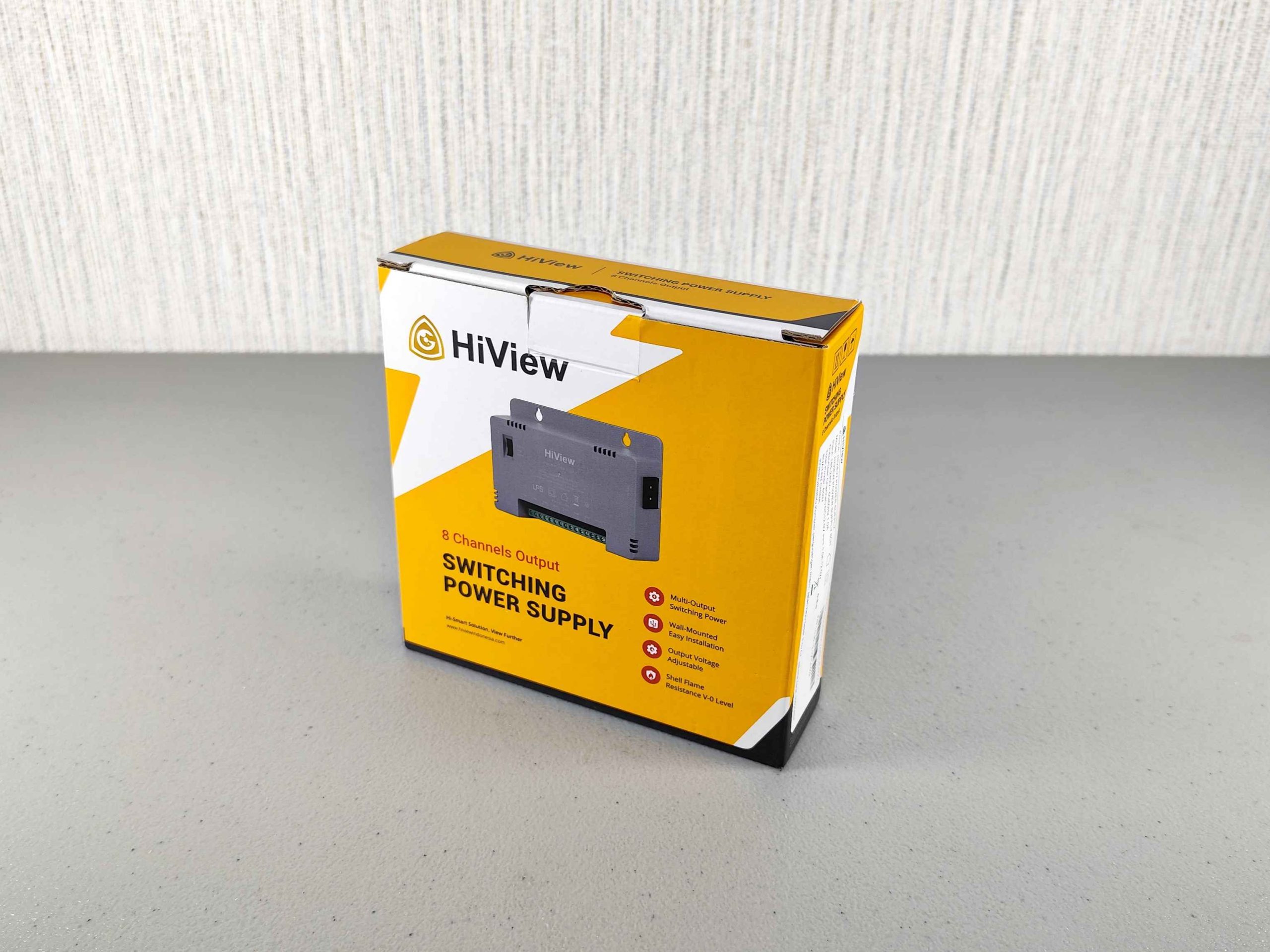

| Dimensions | Product: 140.1 × 94.5 × 34.2 mm Packaging: 143 × 41 × 144 mm |
| Weight | Net: 0.27 kg Gross: 0.35 kg |
| Operating Environment | Temp: 0°C – 40°C Humidity: 10% – 90% RH (non-condensing) Storage Temp: −40°C – 80°C Storage Humidity: 5% – 95% RH |
| Compliance | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017 |
| Certification | CE |
