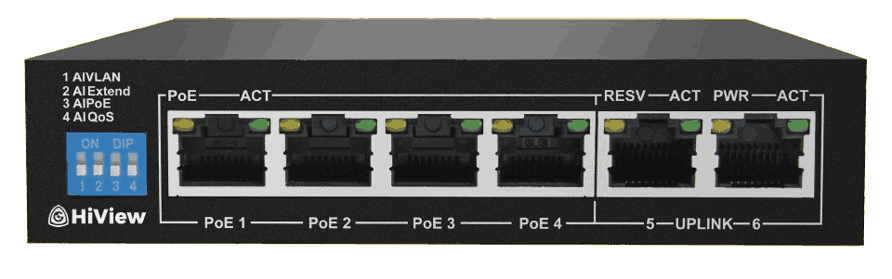

Hiview HIK 106
4-Port AI PoE Switch + 2 Uplink
| Kategori | Detail |
|---|---|
| Network Interface | 4 × 10/100 Mbps PoE-enabled RJ45 ports (Port 1–4) 2 × 10/100 Mbps non-PoE RJ45 uplink ports (Port 5–6) |
| Network Protocol Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Performance | Backplane Bandwidth: 1.2 Gbps (non-blocking) Packet Forwarding Rate: 0.89 Mpps MAC Address Table: 2K Forwarding Mode: Store-and-forward |
| LED Indicator | Power LED LINK/ACT indicator PoE indicator RESV (Reserved) |
| PoE | PoE Pin: 1/2 (+), 3/6 (–) Maksimum output per port: 30W Total maksimum output: 60W Mendukung IEEE 802.3af/at, short circuit protection, overcurrent protection, over temperature protection |
| Power | AI PoE: Deteksi otomatis perangkat, restart otomatis jika mati AI Extend: Jarak hingga 250 m (Port 1–4, kabel Cat5e) AI VLAN: Isolasi port 1–4 untuk mencegah storm AI QoS: Prioritas data video untuk kelancaran streaming |
| Dimensi | 125 × 75 × 27 mm |
| Environmental | Suhu Operasi: 0°C ~ 40°C Suhu Penyimpanan: –40°C ~ 70°C Kelembapan Operasi: 10% ~ 90% RH non-condensing Kelembapan Penyimpanan: 5% ~ 90% RH non-condensing |
| Safety Certifications | CE, ROHS, FCC, CCC |
