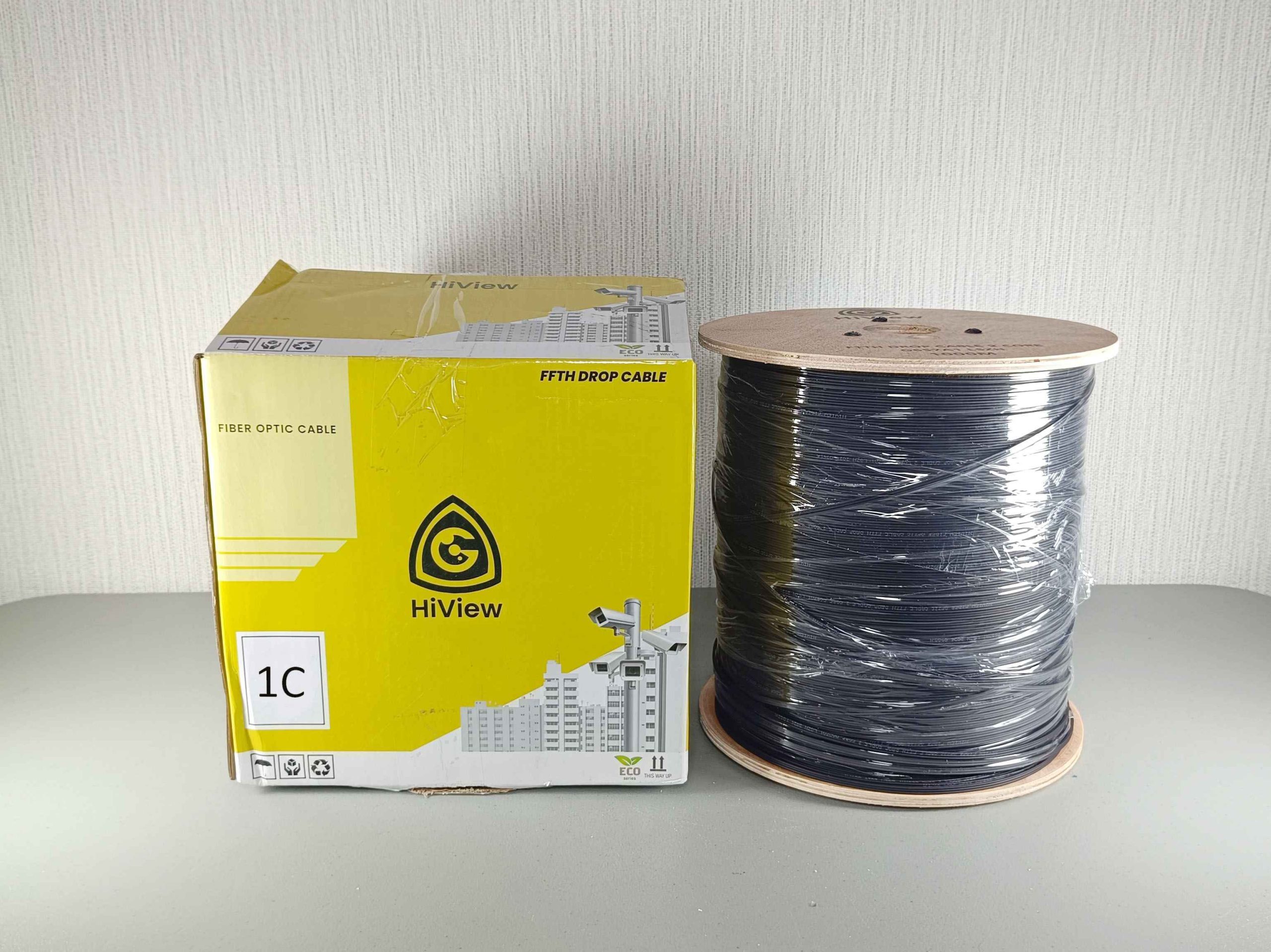

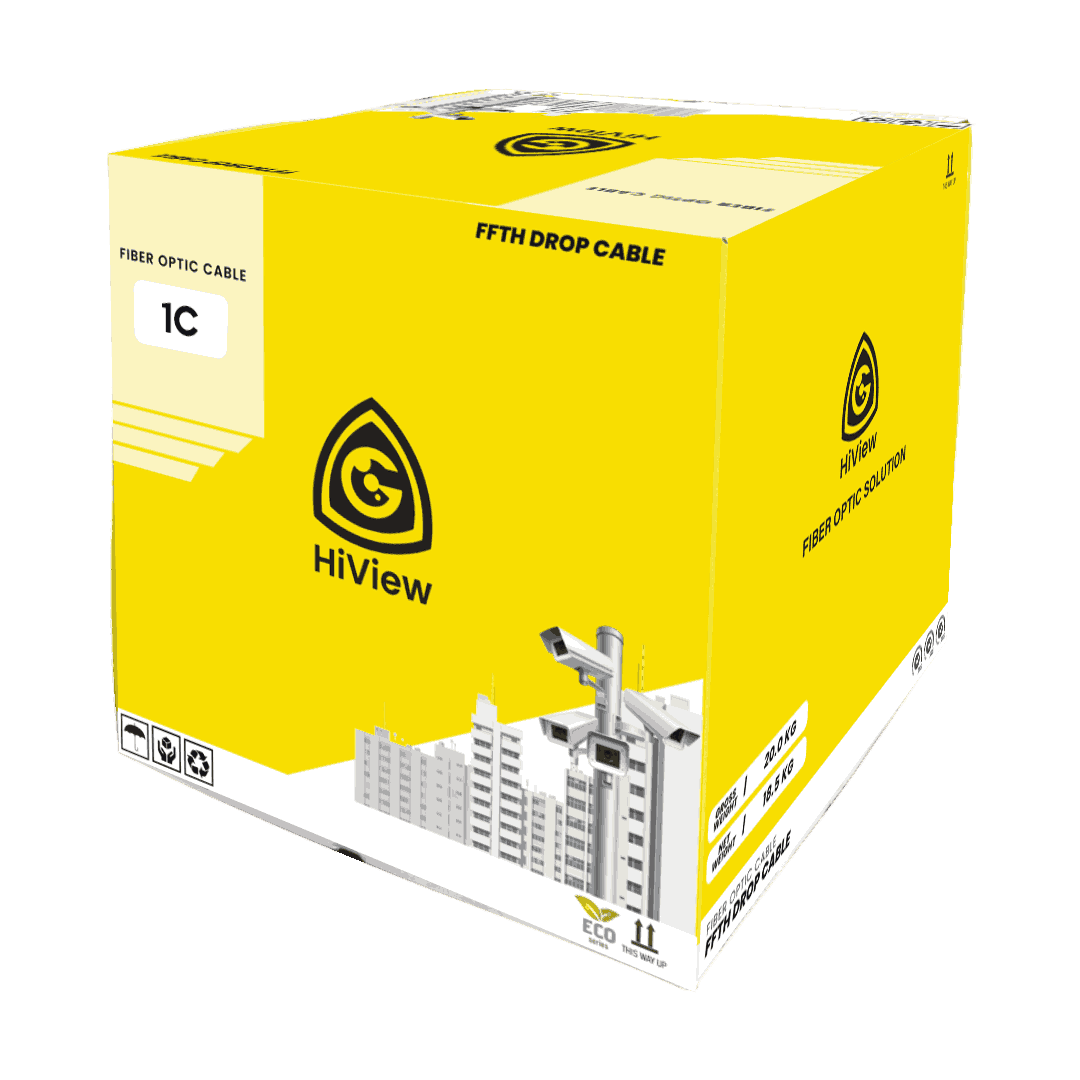

Hiview HV-DC1CORE-1000 Fiber Cable

Hiview HV-DC1CORE-1000 Fiber Cable - Gambar 2

Hiview HV-DC1CORE-1000 Fiber Cable

Rp900.000

HV-DC1CORE-1000

Fiber Optic Cable – 1 Core, LSZH Jacket

Optical fiber unit di posisi tengah, dilindungi dua FRP di sisi kiri dan kanan
Serat dengan sensitivitas tekukan rendah, bandwidth tinggi, transmisi stabil
Struktur sederhana, ringan, dan praktis
Desain flute memudahkan stripping dan splicing
Selubung LSZH tahan api, rendah asap, bebas halogen
Berat kabel: 21 kg
Tensile Strength: 60/120 N
Crush Resistance: 300/1000 N/100mm
Bending Radius: 15/35 mm (Static/Dynamic)

Indoor/Duct Use
Self-support Structure
Flame Retardant LSZH

Buy via Whatsapp

Kategori: Hiview Tag: Kabel Hiview Brand: Hiview

Deskripsi
Ulasan (0)

Spesifikasi Lengkap – Hiview HV-DC1CORE-1000

1. Properti Single Mode Fiber (G.657A1)

Item	Deskripsi
Attenuation @1310 nm	≤ 0.40 dB/km
Attenuation @1383 nm	≤ 0.40 dB/km
Attenuation @1550 nm	≤ 0.30 dB/km
Attenuation @1625 nm	≤ 0.31 dB/km
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 – 1324 nm
Zero-dispersion slope	≤ 0.091 ps/(nm²·km)
Mode field diameter @1310 nm	8.8 – 9.6 μm
Core/Clad concentricity error	≤ 0.6 μm
Cladding diameter	125 ± 1.0 μm
Cladding non-circularity	≤ 1.0%
Primary coating diameter	245 ± 7 μm

2. Dimensi & Konstruksi Kabel

Item	Deskripsi
Fiber Type	G657A1
Fiber Count	1
Color	Blue
Messenger Wire	Phosphatized steel wire, Ø 1.0 ± 0.02 mm
Strength Member	Steel wire, Ø 0.45 ± 0.02 mm × 2

3. Karakteristik Mekanis & Lingkungan

Item	Deskripsi
Tensile Strength (short-term)	600 N
Tensile Strength (long-term)	300 N
Crush Resistance (short-term)	2200 N/100mm
Crush Resistance (long-term)	1000 N/100mm
Operating Temperature	-40°C ~ +70°C
