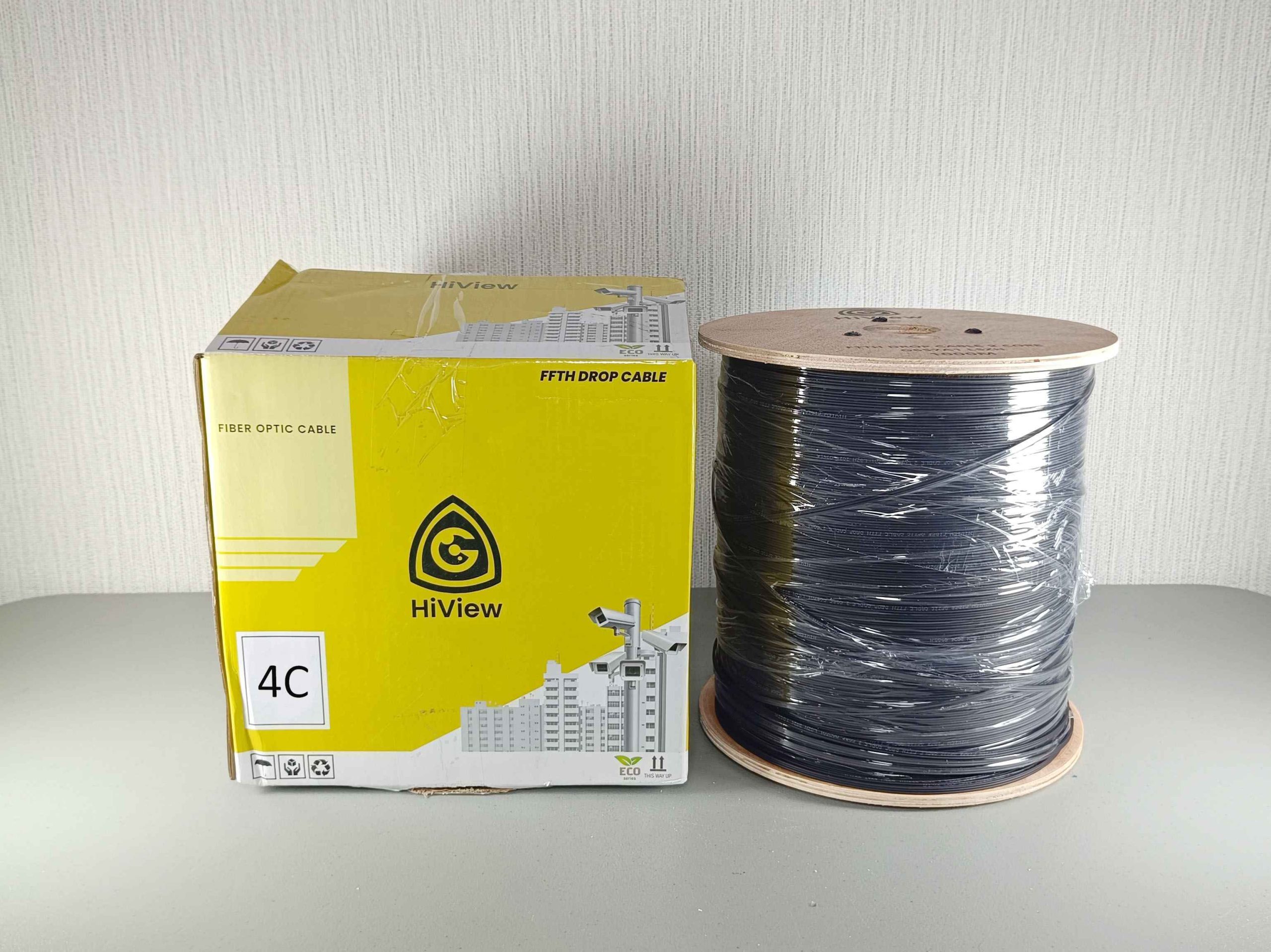

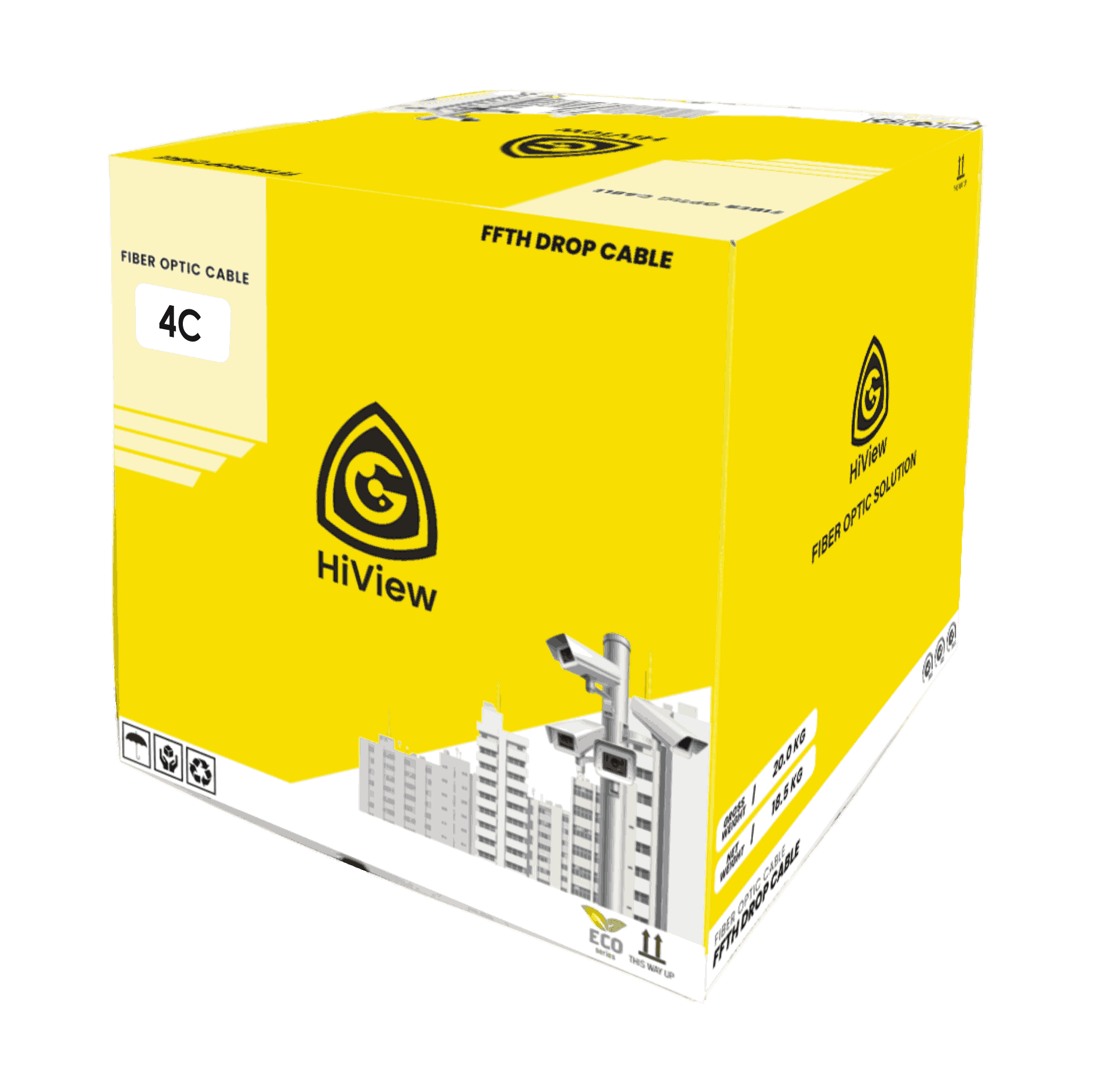

Hiview HV-DC4CORE-1000 Fiber Cable

Name: Hiview HV-DC4CORE-1000 Fiber Cable - SHAM CCTV
Price: 1541000 IDR
Availability: InStock

Rp1.541.000

HV-DC4CORE-1000

Fiber Optic Cable – 4 Core, LSZH Jacket

Unit serat optik di bagian tengah, dengan dua FRP paralel di sisi kiri & kanan
Serat ber-sensitivitas tekuk rendah: bandwidth tinggi & transmisi stabil
FRP ganda meningkatkan ketahanan tekan untuk melindungi fiber
Struktur sederhana, ringan, dan praktis
Desain flute memudahkan stripping & splicing
Selubung LSZH: low smoke, zero halogen, flame retardant
Berat kabel: 21 kg
Tensile Strength (long/short): 60 / 120 N
Crush Resistance (long/short): 300 / 1000 N/100mm
Bending Radius (Static/Dynamic): 15 / 35 mm

Features

4 Core
LSZH Jacket
Low-Bend Fiber
FRP Strength
Indoor / Duct

Kategori: Hiview Tag: Kabel Hiview Brand: Hiview

Parameter	Spesifikasi
Model	142 / 242 / 342 / 442
Jenis	G.652D / G.657A / 50/125 μm / 62.5/125 μm
Attenuation (@20°C)	850nm ≤ 3.0 dB/km 1300nm ≤ 1.5 dB/km 1310nm ≤ 0.40 dB/km (G.652D), ≤ 0.35 dB/km (G.657A) 1550nm ≤ 0.30 dB/km (G.652D), ≤ 0.25 dB/km (G.657A)
Bandwidth (Class A)	850nm ≥ 500 MHz·km 1300nm ≥ 1000 MHz·km
Numerical Aperture	0.200 ± 0.015 NA (50/125 μm), 0.275 ± 0.015 NA (62.5/125 μm)
Cable Cut-off Wavelength	≤1260nm (G.652D), ≤1480nm (G.657A)
Technical Parameters
Fiber Cores	4 Core
Cable OD (mm)	(2.0±0.2)² (5.5±0.2)
Berat Kabel (kg/km)	21
Tensile Strength (long/short term)	60 / 120 N
Crush Resistance (long/short term)	300 / 1000 N/100mm
Bending Radius (Static/Dynamic)	15 / 35 mm
Applications
• Outdoor distribution • Trunk power transmission system • Access network & local network di area dengan interferensi elektromagnetik tinggi
Karakteristik
• Non-metal strength member – tahan terhadap interferensi elektromagnetik • Filler protect loose tube fiber • Struktur sederhana, ringan, dan mudah dipasang
