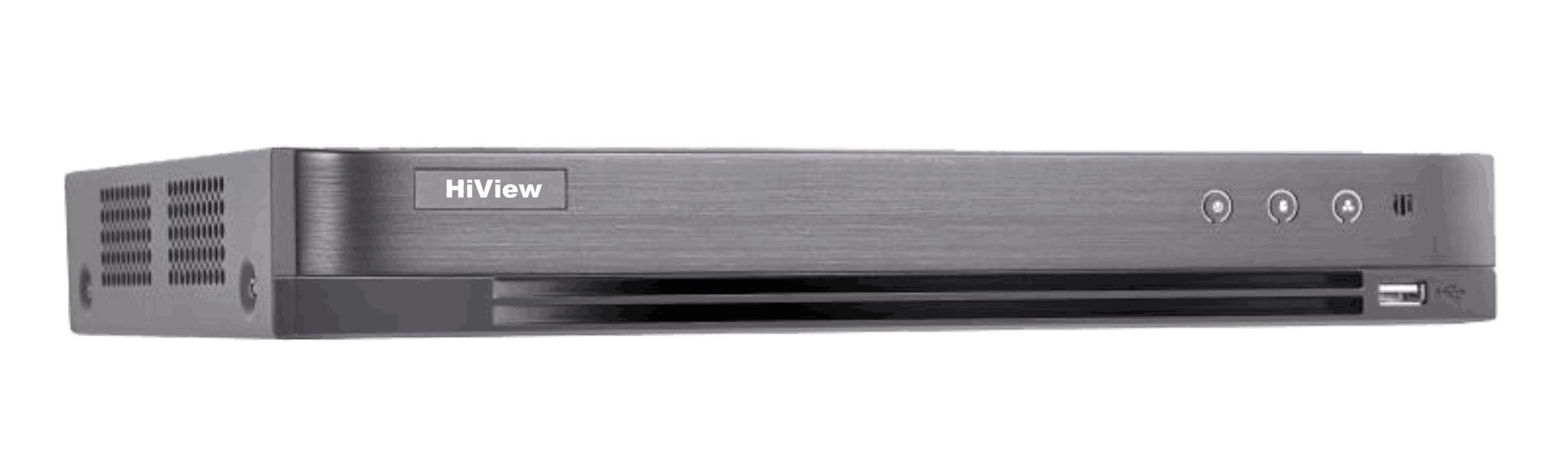

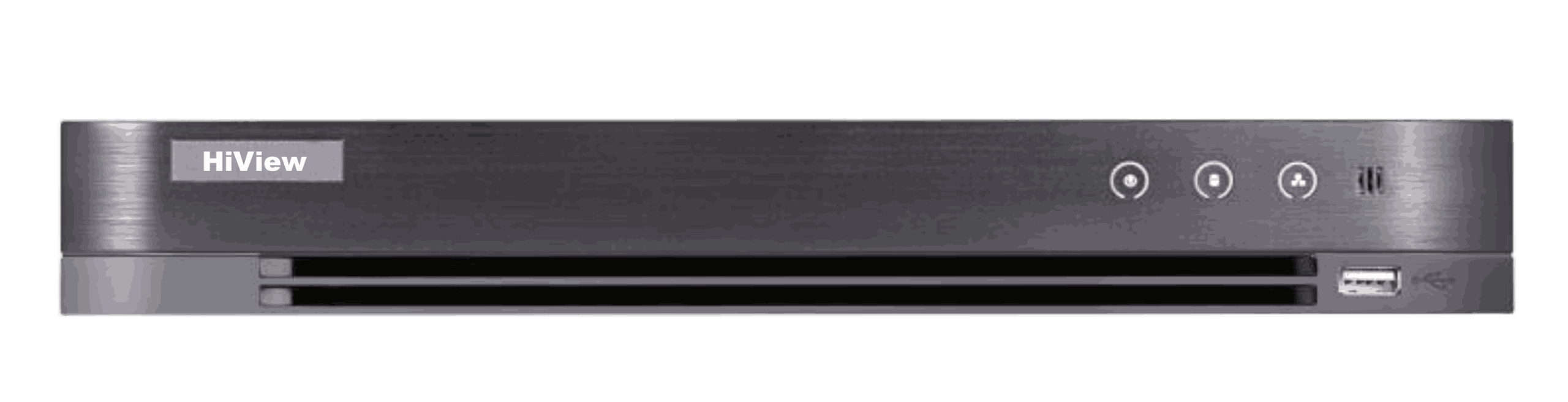

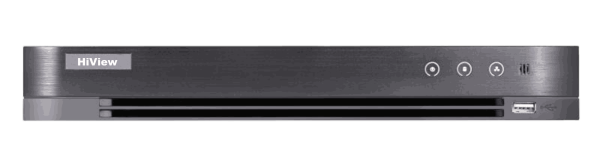

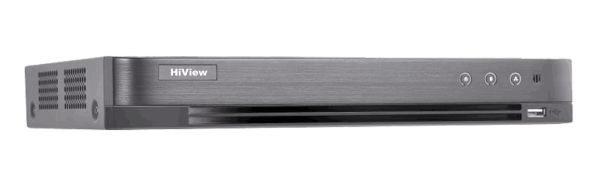

HiView iDS-TH7204HQHI-M1E
4-Channel 1080P 1U H.265 AcuSense DVR
| Kategori | Detail |
|---|---|
| Smart Function | Motion Detection 2.0 berbasis deep learning (default semua kanal analog), klasifikasi manusia & kendaraan, mengurangi false alarm dari objek seperti daun/lampu, pencarian cepat berdasarkan objek atau event. Perimeter Protection: Human/Vehicle Analysis hingga 2-ch. Facial Detection & Capture: Deteksi & pencarian wajah. |
| Compression & Recording | Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Resolusi Encoding: – Tanpa 1080p Lite: Hingga 3K Lite/5MP Lite/4MP Lite/1080p/720p/VGA/WD1/4CIF/CIF – Dengan 1080p Lite: Hingga 3K Lite/5MP Lite/4MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF Frame Rate: 3K Lite @12fps, 4MP Lite @15fps, 1080p Lite @15fps, 720p Lite @25/30fps Video Bitrate: 32 Kbps – 6 Mbps • Dual-stream Support • Audio Compression: G.711u (64 Kbps) |
| Video & Audio | IP Video Input: Hingga 6-ch (Enhanced IP Mode: 2-ch @ 4 Mbps, resolusi hingga 6MP, mendukung H.265+/H.265/H.264+/H.264) Analog Video Input: 4-ch BNC (1.0 Vp-p, 75Ω, coaxitron) HDTVI: Hingga 3K (2960×1665) @20fps, 5MP (2560×1944) @20fps, 4MP @30fps, 1080p @25/30fps AHD/HDCVI: Hingga 5MP @20fps, 4MP @25fps, 1080p @25fps CVBS Input: Support HDMI Output: 1-ch hingga 1920×1080 @60Hz VGA Output: 1-ch hingga 1920×1080 @60Hz Audio In: 4-ch via coaxial + 1-ch RCA Audio Out: 1-ch RCA • Two-Way Audio via input pertama Playback Sinkron: Hingga 4-ch |
| Network | Total Bandwidth: 72 Mbps Remote Connection: Hingga 32 Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Interface: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet Wi-Fi: Mendukung dongle Wi-Fi USB |
| Storage & Interfaces | SATA: 1 × interface, kapasitas hingga 10 TB per disk USB: 2 × USB 2.0 |
| General | Power Supply: 12 VDC, 1.5 A Konsumsi: ≤ 8 W (tanpa HDD) Suhu Operasi: −10°C s/d 55°C Kelembapan: 10% – 90% RH Dimensi (W×D×H): 265 × 225 × 48 mm Berat: ≤ 1 kg (tanpa HDD) |
| Antarmuka Fisik | 1) Video & audio coaxial in • 2) HDMI • 3) VGA • 4) AUDIO OUT (RCA) 5) AUDIO IN (RCA) • 6) LAN & USB • 7) 12 VDC Power • 8) Ground |
