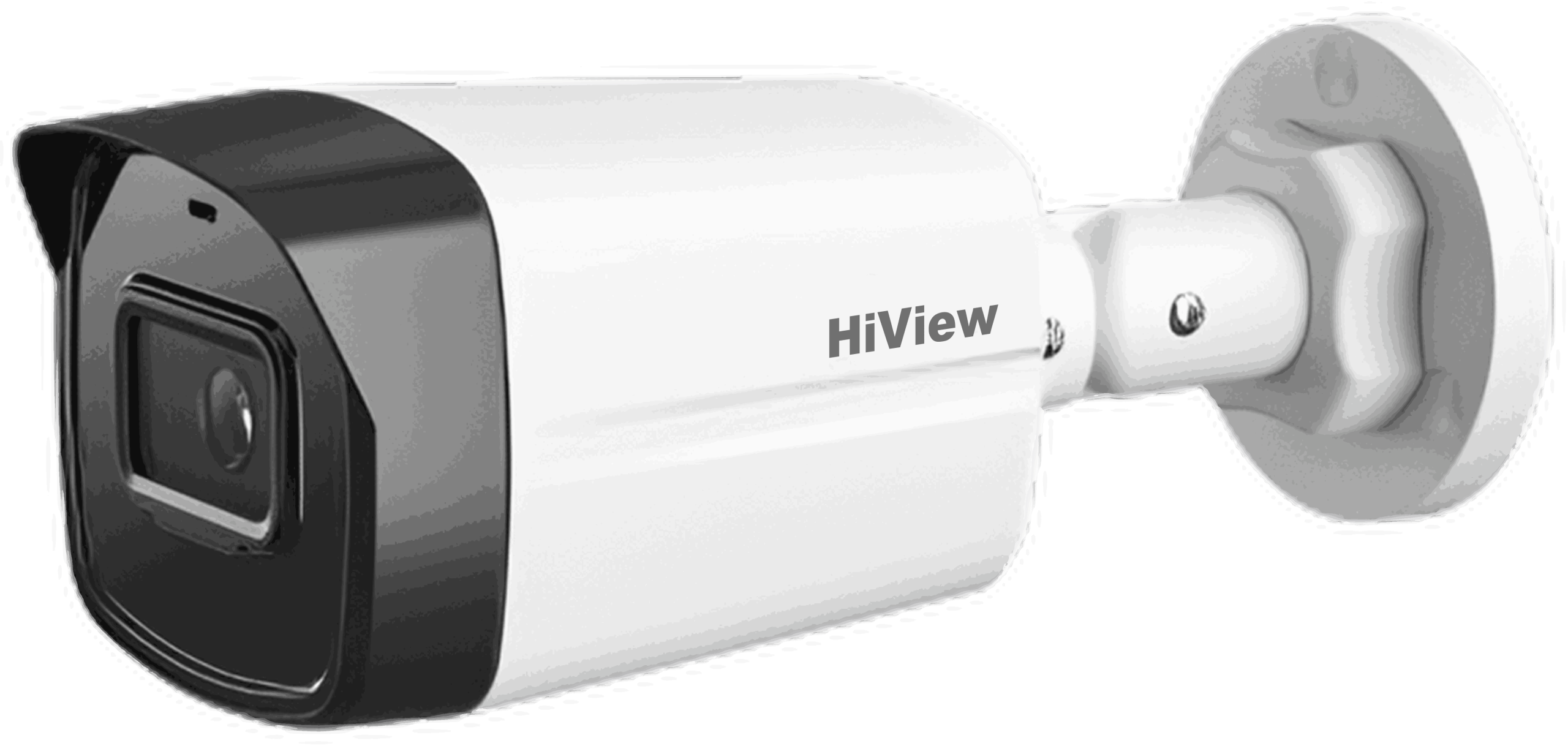

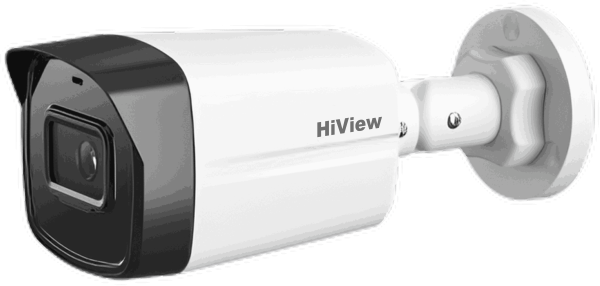

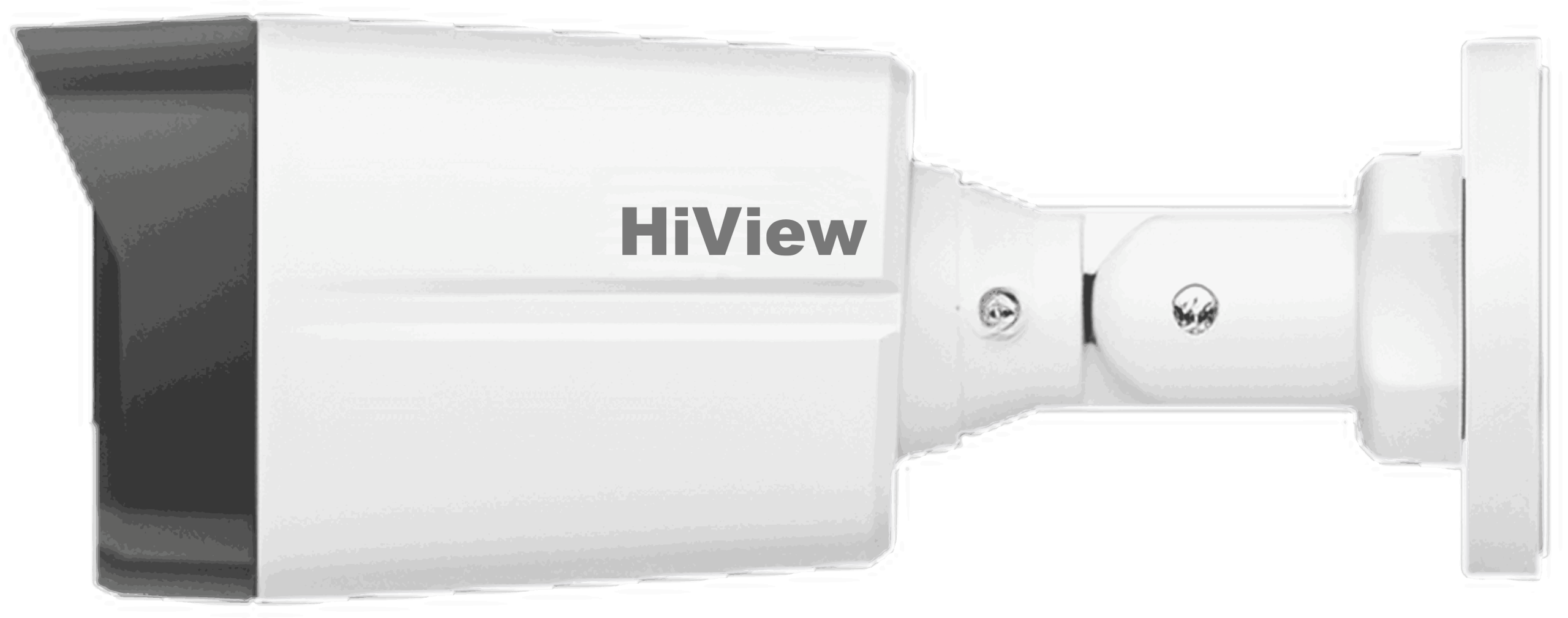

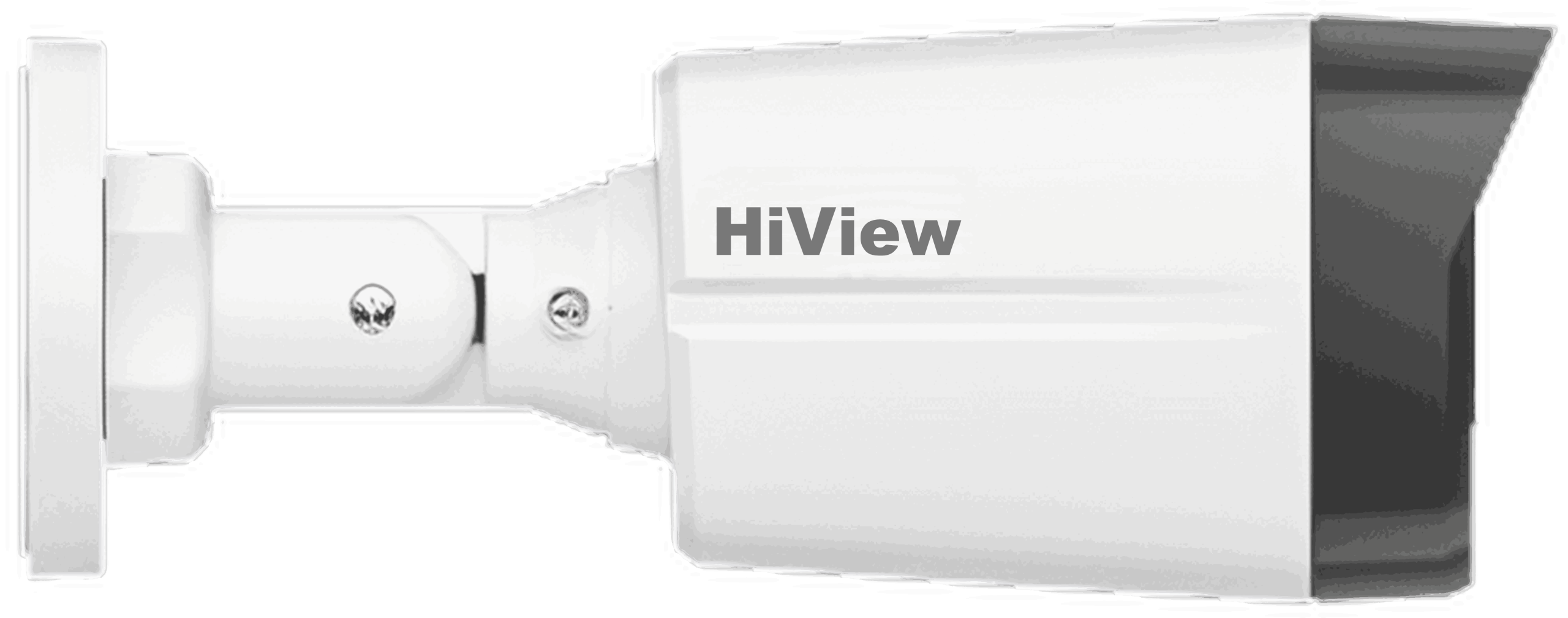

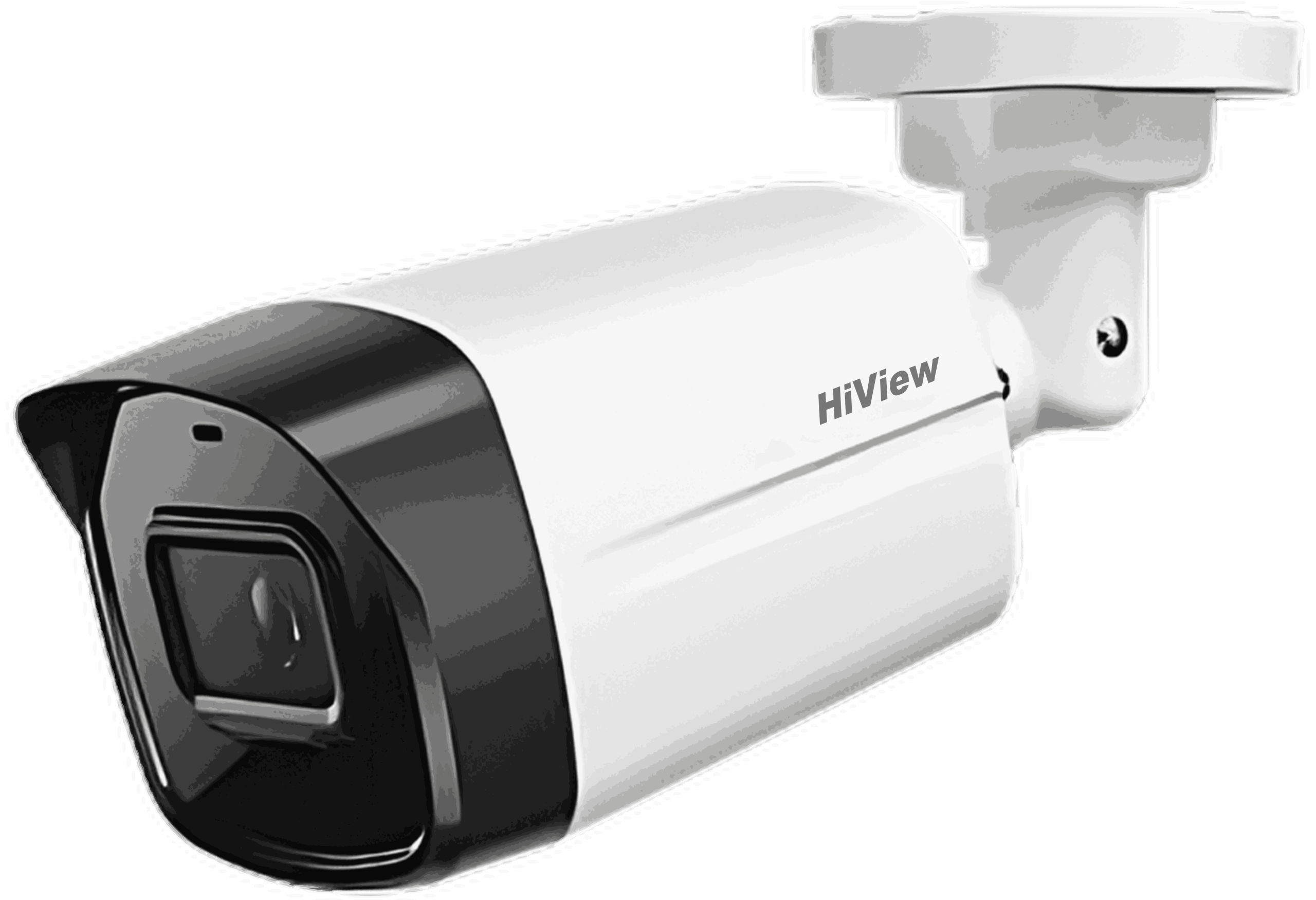

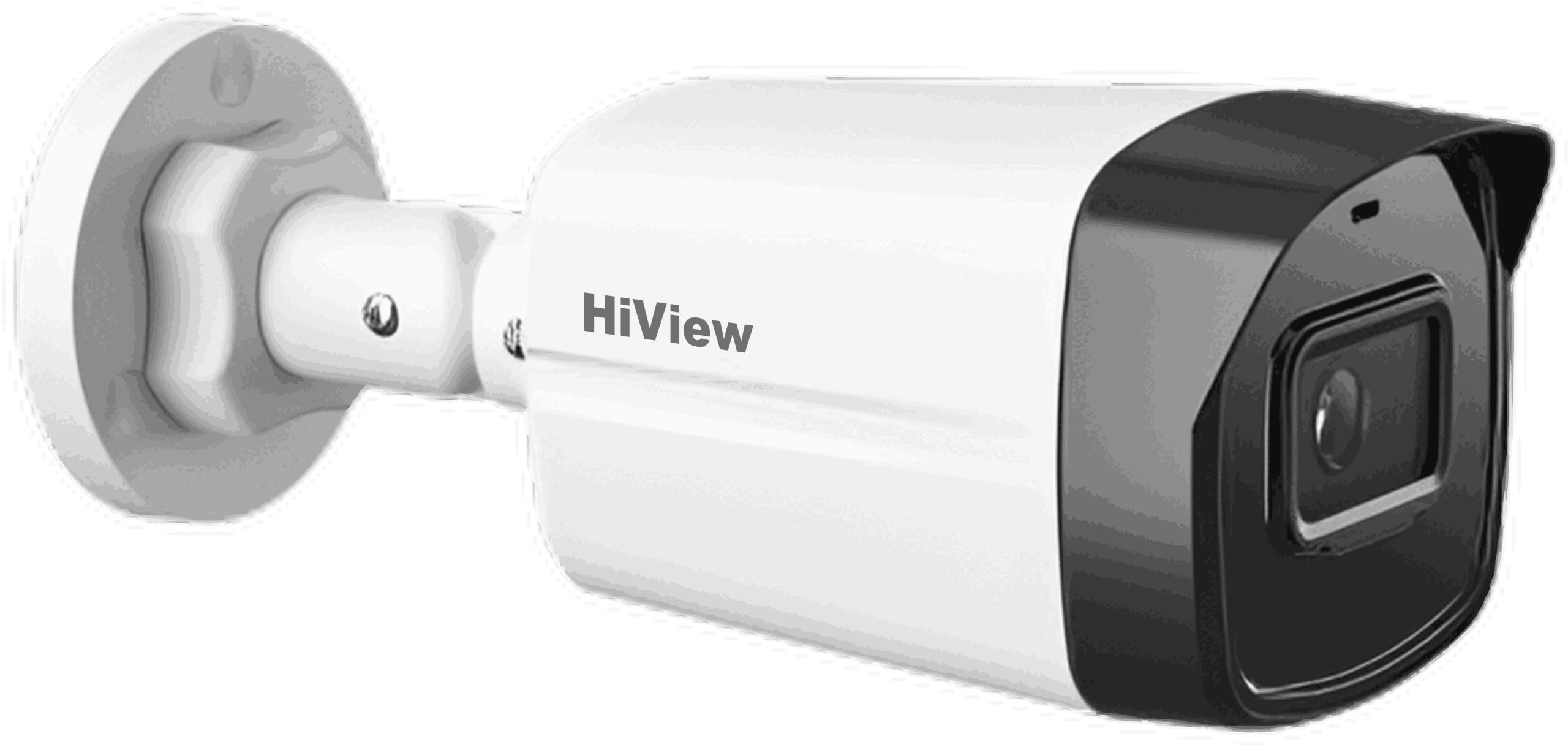

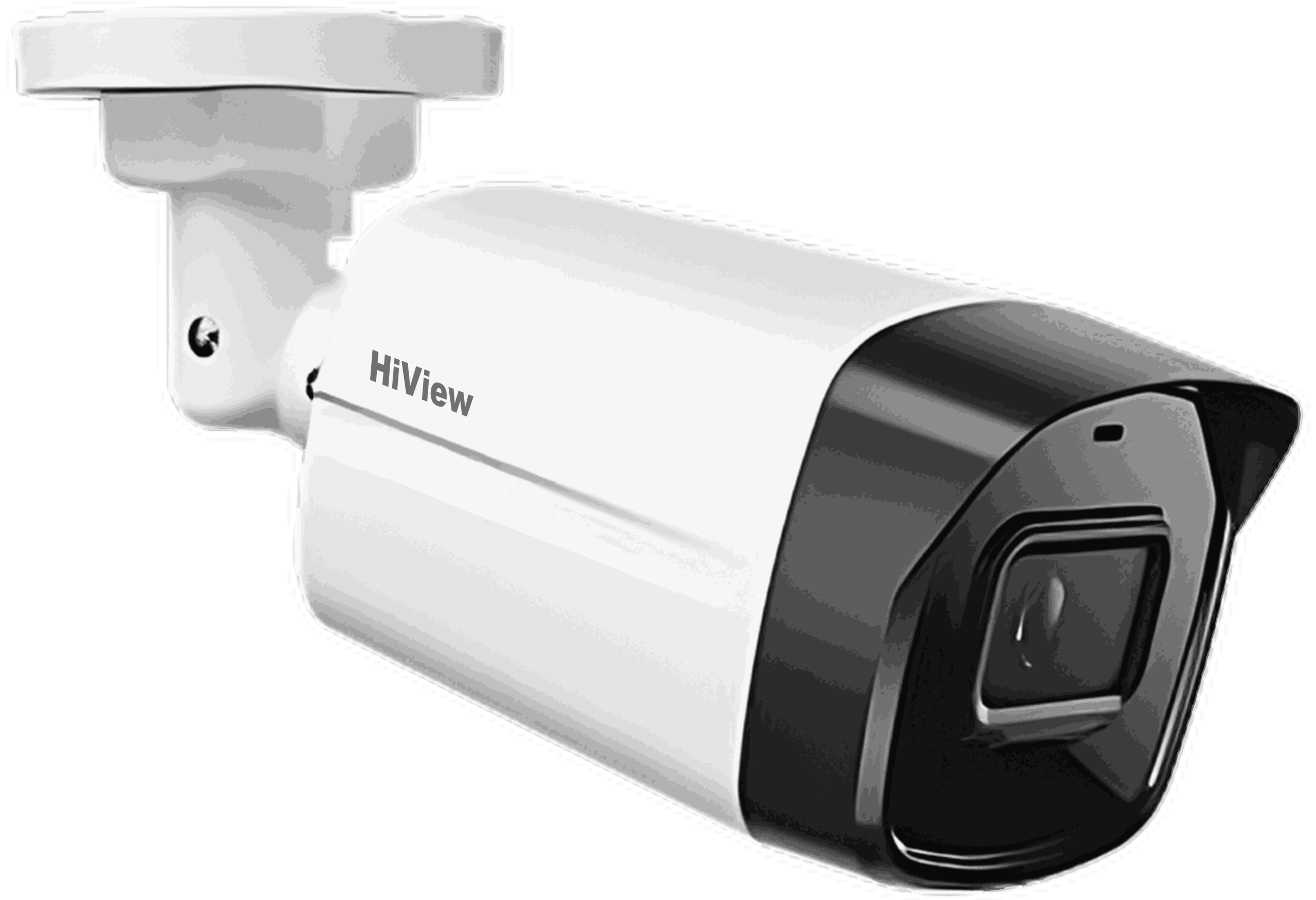

HiView IPC-B40
4MP IR Fixed-focal Bullet Network Camera
| Kategori | Detail |
|---|---|
| Kamera | Image Sensor: 1/3″ CMOS Resolusi Maks.: 2560 × 1440 (4MP) ROM: 16 MB • RAM: 64 MB Sistem Pindai: Progressive Shutter: 1/3 s – 1/100,000 s (Auto/Manual) Min. Illumination: 0.03 Lux (warna, 30 IRE), 0.003 Lux (B/W, 30 IRE), 0 Lux (IR ON) S/N Ratio: ≥ 56 dB Jarak IR: hingga 30 m (2 × IR LED) Mode IR: Auto/Manual Penyesuaian Sudut: Pan 0–360°, Tilt 0–90°, Rotate 0–360° |
| Lensa | Jenis: Fixed-focal • Mount: M12 Focal Length: 2.8 mm / 3.6 mm Aperture: F2.0 FOV 2.8 mm: H 90°, V 49°, D 106° FOV 3.6 mm: H 79°, V 40°, D 92° Close Focus: 1.0 m (2.8 mm) • 1.4 m (3.6 mm) |
| DORI | 2.8 mm: Deteksi 82.2 m • Observasi 32.9 m • Rekognisi 16.6 m • Identifikasi 6.8 m 3.6 mm: Deteksi 93.7 m • Observasi 37.5 m • Rekognisi 18.7 m • Identifikasi 7.5 m |
| Video | Kompresi: H.265, H.264, MJPEG Smart Codec: Smart H.265+, Smart H.264+ Resolusi: 4MP, 3MP, 1080p, 1.3M, 720p, D1, VGA, CIF Frame Rate: 4MP@25/30 fps (Main); D1/CIF@25/30 fps (Sub) Stream: 2 streams Bit Rate: H.264: 32–4096 Kbps • H.265: 12–4096 Kbps ROI: 4 area • WDR: DWDR Fitur: BLC, HLC, 3D NR, White Balance Auto, Gain Control Auto |
| Alarm & Jaringan | Event: Network disconnection, IP conflict, illegal access, motion detection, video tampering, security exception Port: RJ45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast, P2P Interoperabilitas: ONVIF (Profile S, T), CGI User: hingga 6 channel (24 M total) Penyimpanan: FTP Browser: IE, Chrome, Firefox Software: Smart PSS, Lite PSS, DSS, DMSS Mobile: iOS, Android |
| Keamanan Siber | Fitur: Password protection, encryption, trusted boot, certificate management, video encryption |
| Daya & Lingkungan | Power: 12 VDC / PoE Konsumsi: Basic 1.4 W, Max 3.0 W (12 VDC), 4.2 W (PoE) Suhu Operasi: −40°C hingga 50°C Kelembapan: ≤ 95% (non-condensing) Proteksi: IP67 |
| Fisik | Material: Plastik Dimensi: 198.9 × 80.2 × 76.2 mm Berat Bersih: 0.25 kg • Berat Kotor: 0.37 kg |
