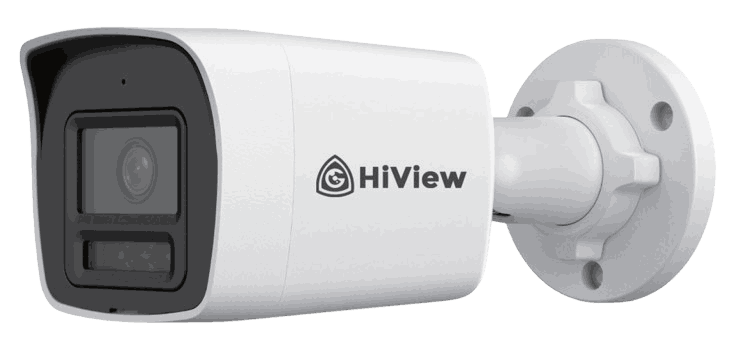

HiView IPC-B1049G2-LU-C
4MP Full-Color Bullet Network Camera
- 4MP full-color imaging
- Deteksi manusia & kendaraan
- Smart Hybrid Light (jarak jauh)
- Kompresi efisien H.265+
- Mikrofon bawaan (audio real-time)
- Tahan cuaca IP67
Kamera jaringan bullet 4MP dengan warna penuh siang-malam, dukungan AI (human/vehicle), serta lampu IR & white-light cerdas untuk hasil optimal di kondisi minim cahaya.
| Kategori | Detail |
|---|---|
| Kamera | Image Sensor: 1/3” Progressive Scan CMOS Resolusi Maks.: 2560 × 1440 (4MP) Minimum Illumination: 0.001 Lux @ F1.0 (AGC ON), 0 Lux dengan lampu Shutter: 1/3 s – 1/100,000 s Day/Night: IR-cut filter Penyesuaian Sudut: Pan 0–355°, Tilt 0–90°, Rotate 0–355° |
| Lensa | Jenis: Fixed focal (opsi 2.8 mm & 4 mm), Mount M12, Aperture F1.0 FOV 2.8 mm: Hor 96°, Ver 52°, Diag 114° FOV 4 mm: Hor 80°, Ver 43°, Diag 93° |
| DORI | 2.8 mm: Deteksi 44 m • Observasi 17 m • Rekognisi 8 m • Identifikasi 4 m 4 mm: Deteksi 53 m • Observasi 21 m • Rekognisi 10 m • Identifikasi 5 m |
| Penerangan | Lampu tambahan: IR & White-Light (Smart Hybrid Light) Jarak IR: hingga 30 m • Panjang gelombang: 850 nm • Smart Supplement Light: Ya |
| Video | Frame rate:
Kompresi: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Audio | Tipe: Mono • Mikrofon internal: Ya Kompresi: G.711/G.722.1/G.726/MPL2/PCM/AAC-LC Bit rate (codec): G.711 (64 Kbps), G.722.1 (16 Kbps), G.726 (32–160 Kbps), MPL2 (16–64 Kbps), AAC-LC (–) Sampling rate: 8 kHz / 16 kHz |
| Jaringan & Keamanan | Protokol: IPv4/IPv6, TCP/IP, DHCP, DNS, HTTP, RTP/RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP Live view simultan: hingga 6 channel • API: ONVIF (Profile S/T), ISAPI, SDK Keamanan: perlindungan kata sandi, watermark, WSSE, audit log, host authentication (MAC) |
| Pengolahan Gambar | WDR 120 dB • BLC/HLC/3D DNR • SNR ≥ 52 dB • Privacy mask: 4 area poligon Pengaturan: rotate, saturation, brightness, contrast, sharpness, gain, white balance (klien/web) |
| Interface & Event | Port: 1× RJ45 10/100M Ethernet (self-adaptive) Event: Motion detection (dengan target manusia/kendaraan), video tampering, exception; Linkage: upload FTP, notifikasi, email, trigger capture |
| Daya & Lingkungan | Daya: 12 VDC ±25% (maks. 6 W, konektor koaksial Ø5.5 mm; proteksi polaritas) • PoE: IEEE 802.3af (maks. 7.5 W) Suhu Operasi/Penyimpanan: −30°C hingga 60°C; Kelembapan ≤95% (non-condensing) • Bahasa: English, Ukrainian |
| Fisik | Material: cover depan metal; body, bracket: plastik Dimensi unit: 69.8 × 67.9 × 172.9 mm • Dimensi kemasan: 150 × 150 × 141 mm Berat: ±490 g (unit) • ±710 g (kemasan) |
| Proteksi, Sertifikasi & Model | Proteksi: IP67 Sertifikasi: CE-EMC (EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, dst.), CE-LVD (EN 62368-1:2014+A11:2017), CE-RoHS (2011/65/EU), RCM, IC (ICES-003), WEEE, REACH Model tersedia: IPC-B-1049G2-LU-C (2.8 mm) & (4 mm) |
