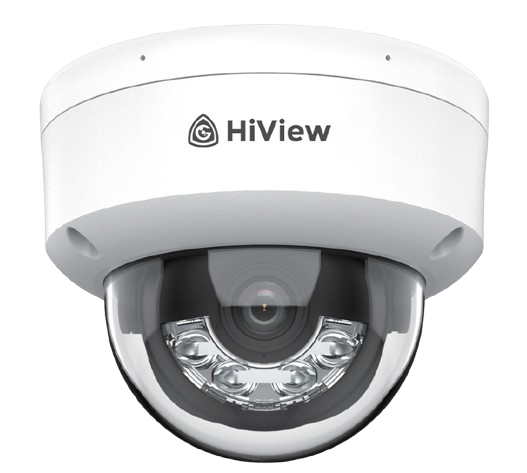

HiView IPC-D1149G2-LU-C
4MP Full-Color Dome Network Camera
- 4MP full-color imaging
- Human & Vehicle Detection
- Smart Hybrid Light (long range)
- Built-in microphone
- Tahan air IP67 & anti-vandal IK08
- Kompresi efisien H.265+, WDR 120 dB
| Kategori | Detail |
|---|---|
| Kamera | Image Sensor: 1/3” Progressive Scan CMOS Resolusi Maks.: 2560 × 1440 (4MP) Min. Illumination: 0.001 Lux @ F1.0 (AGC ON), 0 Lux dengan IR Shutter: 1/3 s – 1/100,000 s Day/Night: IR-cut filter Penyesuaian Sudut: Pan 0–355°, Tilt 0–75°, Rotate 0–355° |
| Lensa | Jenis: Fixed focal (2.8 mm & 4 mm) FOV 2.8 mm: Hor 96°, Ver 52°, Diag 114° FOV 4 mm: Hor 80°, Ver 43°, Diag 93° Mount: M12 • Aperture: F1.0 |
| DORI | 2.8 mm: Deteksi 44 m • Observasi 17 m • Rekognisi 8 m • Identifikasi 4 m 4 mm: Deteksi 53 m • Observasi 21 m • Rekognisi 10 m • Identifikasi 5 m |
| Penerangan | Lampu tambahan: IR & White Light Jarak IR: hingga 30 m • Panjang gelombang: 850 nm • Smart Supplement Light: Ya |
| Video | Frame rate:
Kompresi: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Audio | Tipe: Mono • Mikrofon internal: Ya Kompresi: G.711/G.722.1/G.726/MPL2/PCM/AAC-LC Bit Rate: G.711 (64 Kbps), G.722.1 (16 Kbps), G.726 (32–160 Kbps), AAC-LC Sampling: 8 kHz / 16 kHz |
| Jaringan & Keamanan | Protokol: TCP/IP, DHCP, DNS, HTTP, RTP/RTSP, NTP, IGMP, FTP, SMTP, UPnP Live view: hingga 6 channel • API: ONVIF, ISAPI, SDK Keamanan: password protection, watermark, WSSE, MAC binding |
| Gambar | WDR 120 dB • BLC, HLC, 3D DNR • SNR ≥ 52 dB • Privacy mask: 4 area poligon |
| Interface | Port: 1× RJ45 10/100M Ethernet (self-adaptive) Built-in Mic: Ya |
| Event | Motion detection (human/vehicle), video tampering, exception Linkage: FTP upload, notifikasi, email, trigger capture |
| Daya & Lingkungan | 12 VDC ±25% (maks. 6 W, konektor Ø5.5 mm; proteksi polaritas) • PoE IEEE 802.3af (7.5 W) Suhu kerja: −30°C hingga 60°C; kelembapan ≤95% (non-condensing) |
| Fisik | Material: Base metal, cover plastik Dimensi: Ø121.5 × 97.6 mm Berat: ±490 g (unit) • ±710 g (kemasan) |
| Proteksi & Sertifikasi | Proteksi: IP67, IK08 Sertifikasi: CE-EMC, CE-LVD, CE-RoHS, RCM, IC, WEEE, REACH |
| Model Tersedia | IPC-D1149G2-LU-C (2.8 mm) & IPC-D1149G2-LU-C (4 mm) |
