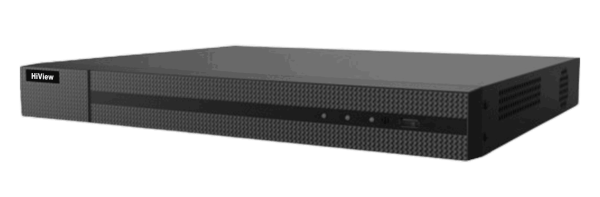

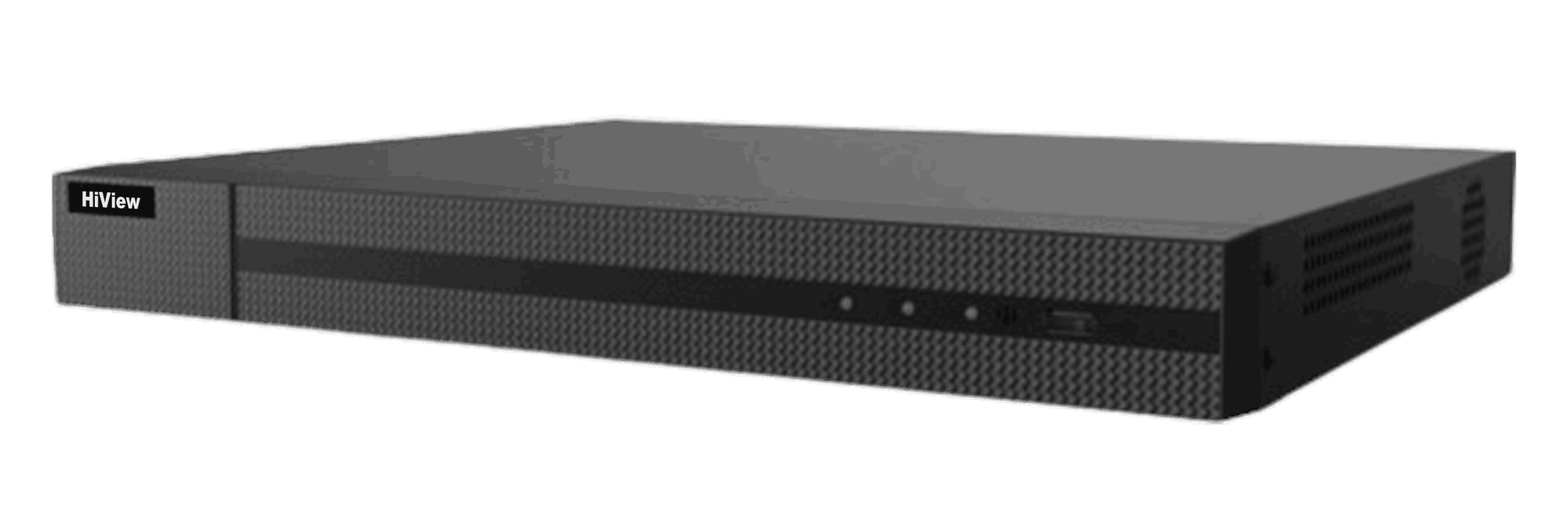

HiView NVR216-M1H
16 Channel Network Video Recorder
| Kategori | Detail |
|---|---|
| Motion Detection 2.0 | Human/Vehicle Analysis: 4-ch |
| Video & Audio | Kompresi Video: H.265+/H.265/H.264+/H.264 IP Video Input: 16-ch Incoming Bandwidth: 160 Mbps • Outgoing Bandwidth: 80 Mbps HDMI Output: 1-ch, hingga 4K (4096×2160/3840×2160@30 Hz), 2K (2560×1440@60 Hz), 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz VGA Output: 1-ch, 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz Mode Output: HDMI/VGA simultan Audio Output: 1-ch RCA (Linear, 1 kΩ) • Two-Way Audio: 1-ch RCA (2.0 Vp-p, 1 kΩ) |
| Decoding & Recording | Format Decoding: H.265+/H.265/H.264+/H.264 Kapabilitas Decoding: 1-ch@8MP (30 fps) / 3-ch@4MP (30 fps) / 6-ch@1080p (30 fps) Resolusi Rekaman: hingga 4 MP (full-channel); dukungan 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Playback Sinkron: 16-ch |
| Jaringan | Remote Connection: 32 Protokol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Antarmuka: 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Penyimpanan & Antarmuka | SATA: 1 interface • Kapasitas: hingga 8 TB per HDD USB: 2 × USB 2.0 Alarm In/Out: N/A |
| Umum | Catu Daya: 12 VDC, 3.33 A • Konsumsi: ≤ 15 W (tanpa HDD) Suhu Operasi: −10°C hingga 55°C • Kelembapan: 10%–90% RH Chassis: 1U • Dimensi (W×D×H): 385 × 315 × 52 mm Berat: ≤ 1.8 kg (tanpa HDD) |
