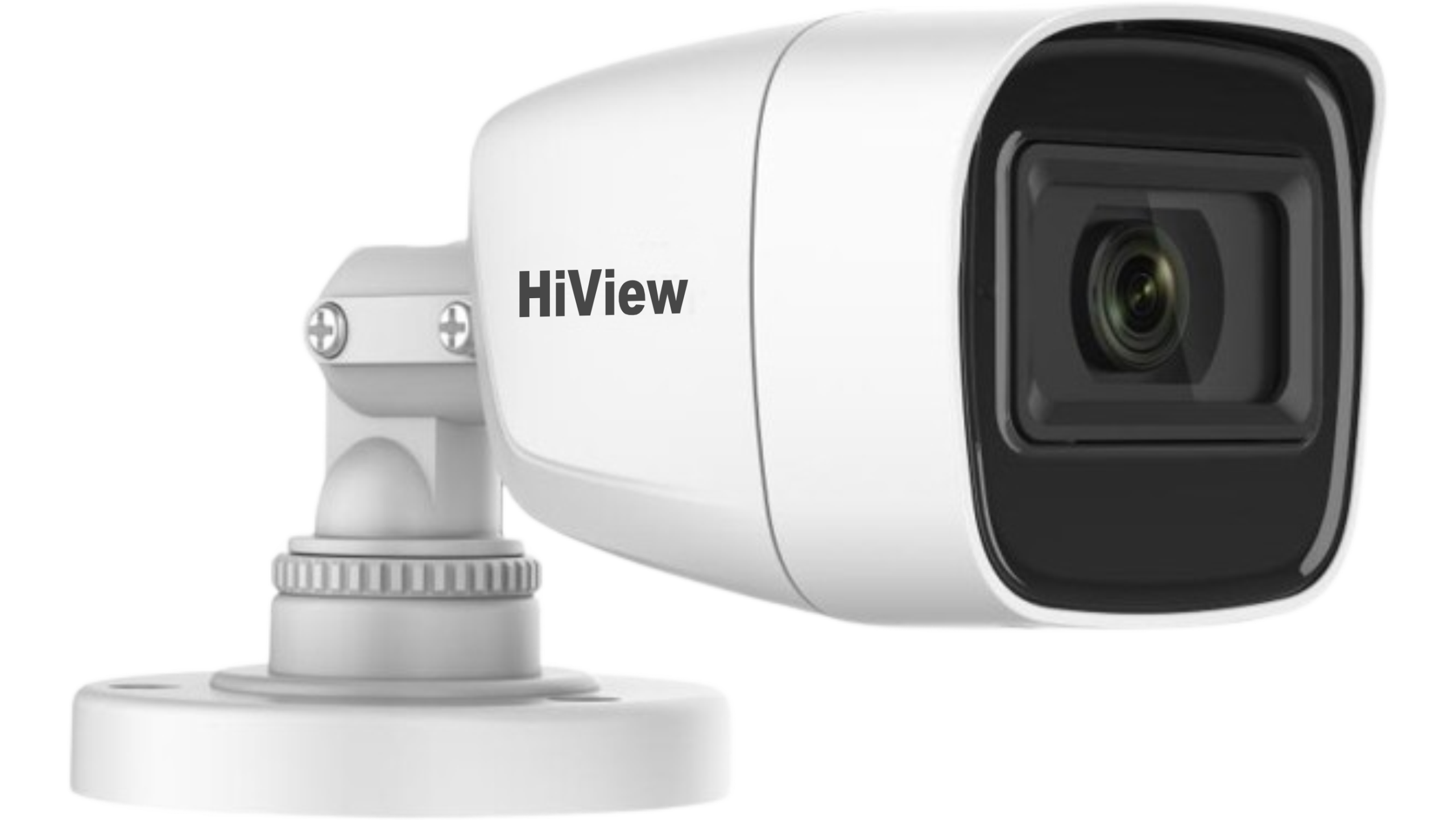

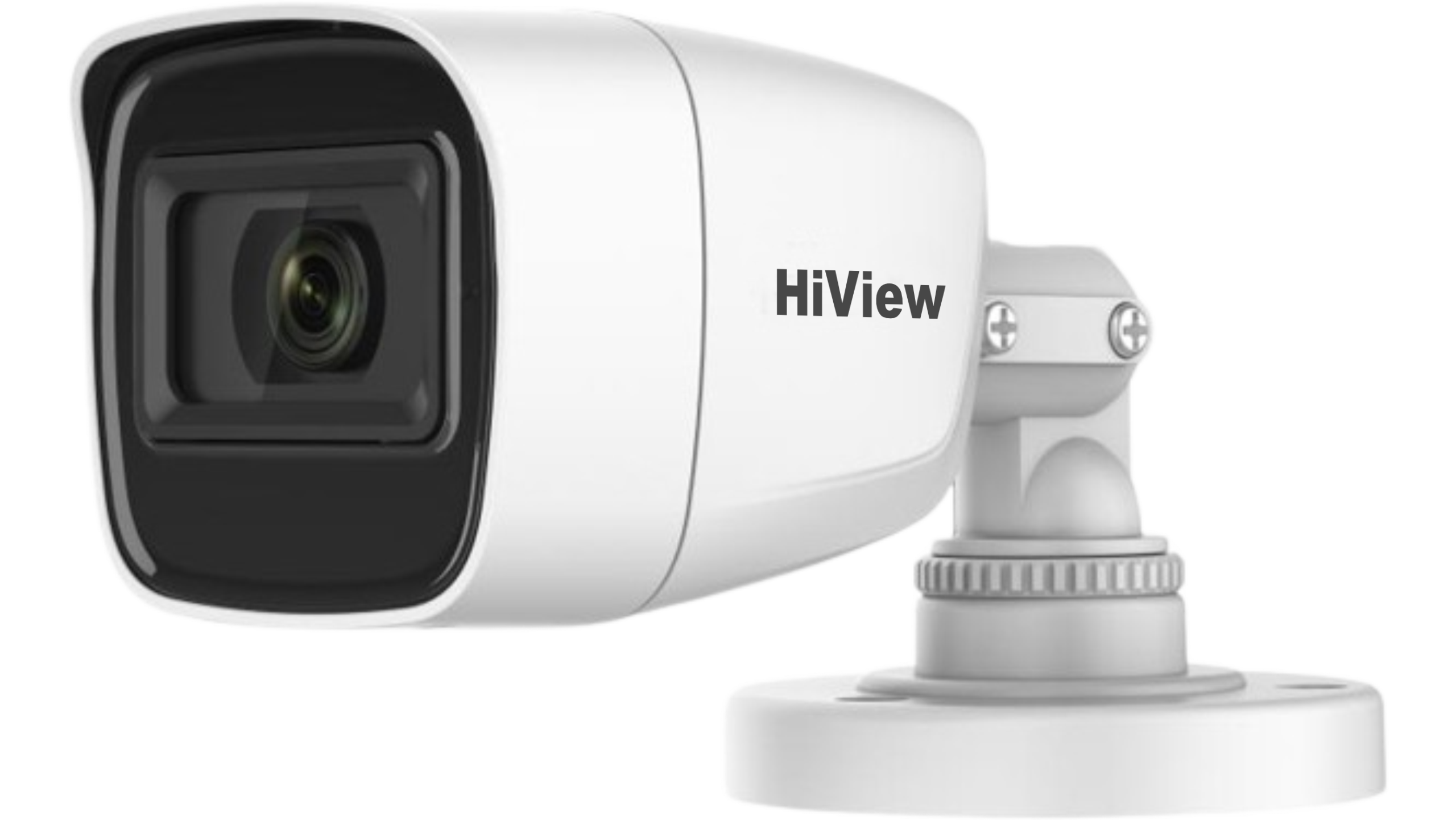

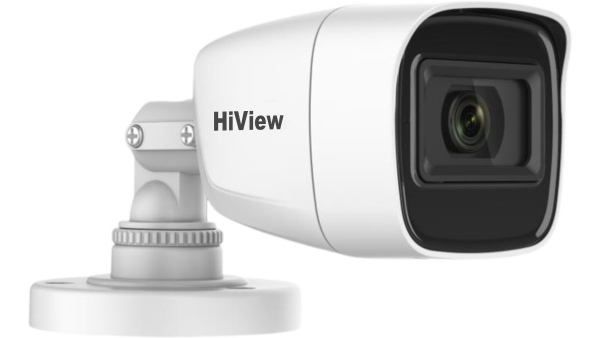

HiView TH-B120-PS
2MP Fixed Bullet IR Camera
| Kategori | Detail |
|---|---|
| Kamera | Image Sensor: 2 MP CMOS image sensor Resolusi Maks.: 1920 (H) × 1080 (V) Min. Illumination: 0.02 Lux @ (F2.0, AGC ON), 0 Lux dengan IR Shutter Time: PAL 1/25 s – 1/50,000 s; NTSC 1/30 s – 1/50,000 s Day/Night: IR Cut Filter Penyesuaian Sudut: Pan 0°–360°, Tilt 0°–180°, Rotate 0°–360° |
| Lensa | Jenis: Fixed focal lens, 2.8 mm dan 3.6 mm opsional FOV 2.8 mm: H 96.5°, V 48.9°, D 120.5° FOV 3.6 mm: H 76.9°, V 40.6°, D 92.0° Mount: M12 |
| Pencahayaan IR | Tipe: IR Jarak: hingga 20 m |
| Gambar | Pengaturan: Brightness, Mirror, Smart IR, Sharpness, AGC Frame Rate: PAL 1080p @ 25 fps; NTSC 1080p @ 30 fps Mode Day/Night: Auto / Color / B/W Wide Dynamic Range: Digital WDR Image Enhancement: DWDR, BLC Noise Reduction: 2D DNR |
| Interface | Video Output: Switchable TVI / AHD / CVI / CVBS |
| Umum | Daya: 12 VDC ±15%, Max. 2.1 W Material: Plastik Dimensi: 165 × 62 × 58 mm (6.50″ × 2.44″ × 2.28″) Berat: 400 g (0.88 lb) Suhu Operasi: −40°C hingga 60°C Kelembapan: ≤ 90% (non-condensing) Proteksi: IP66 |
