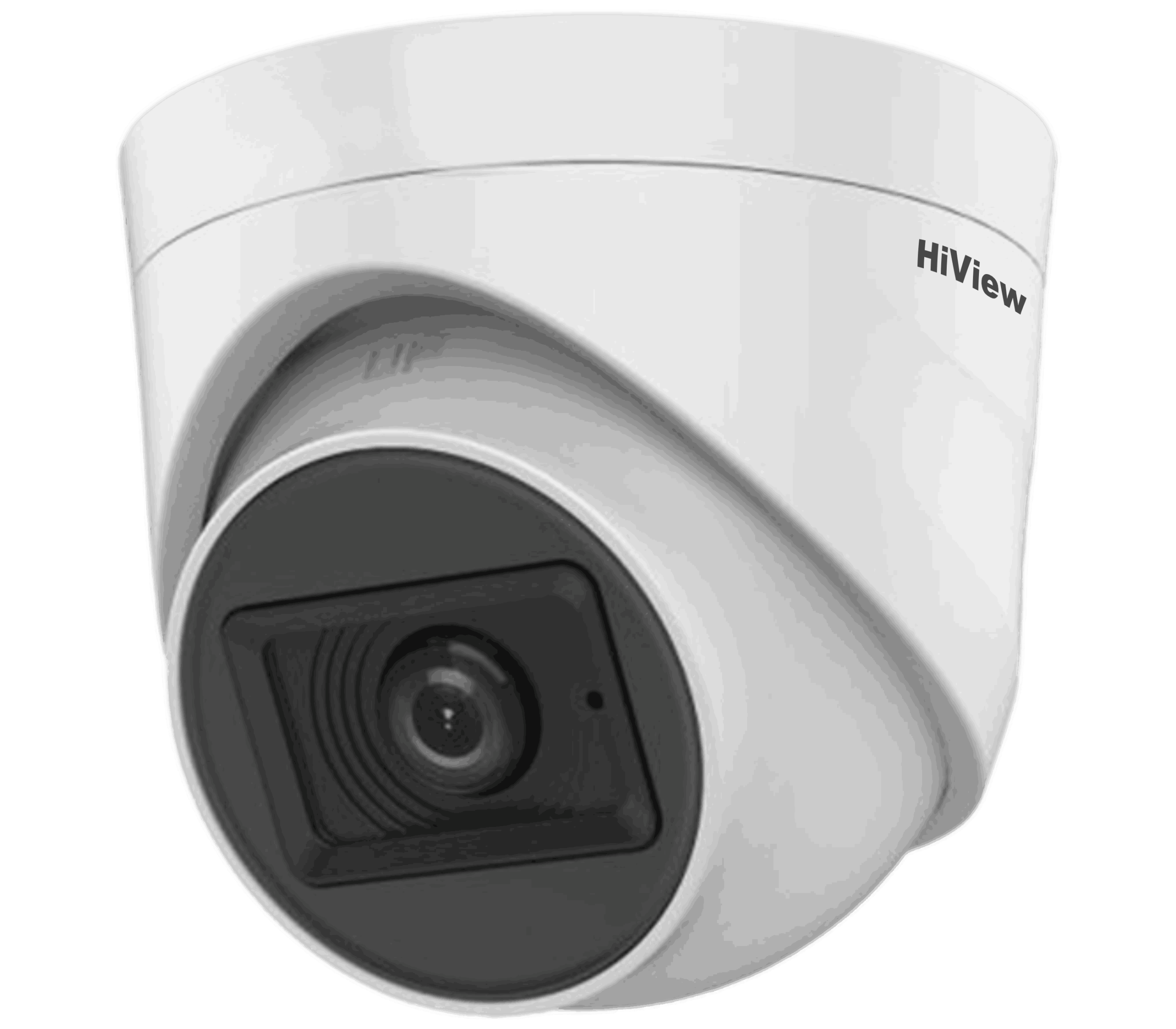

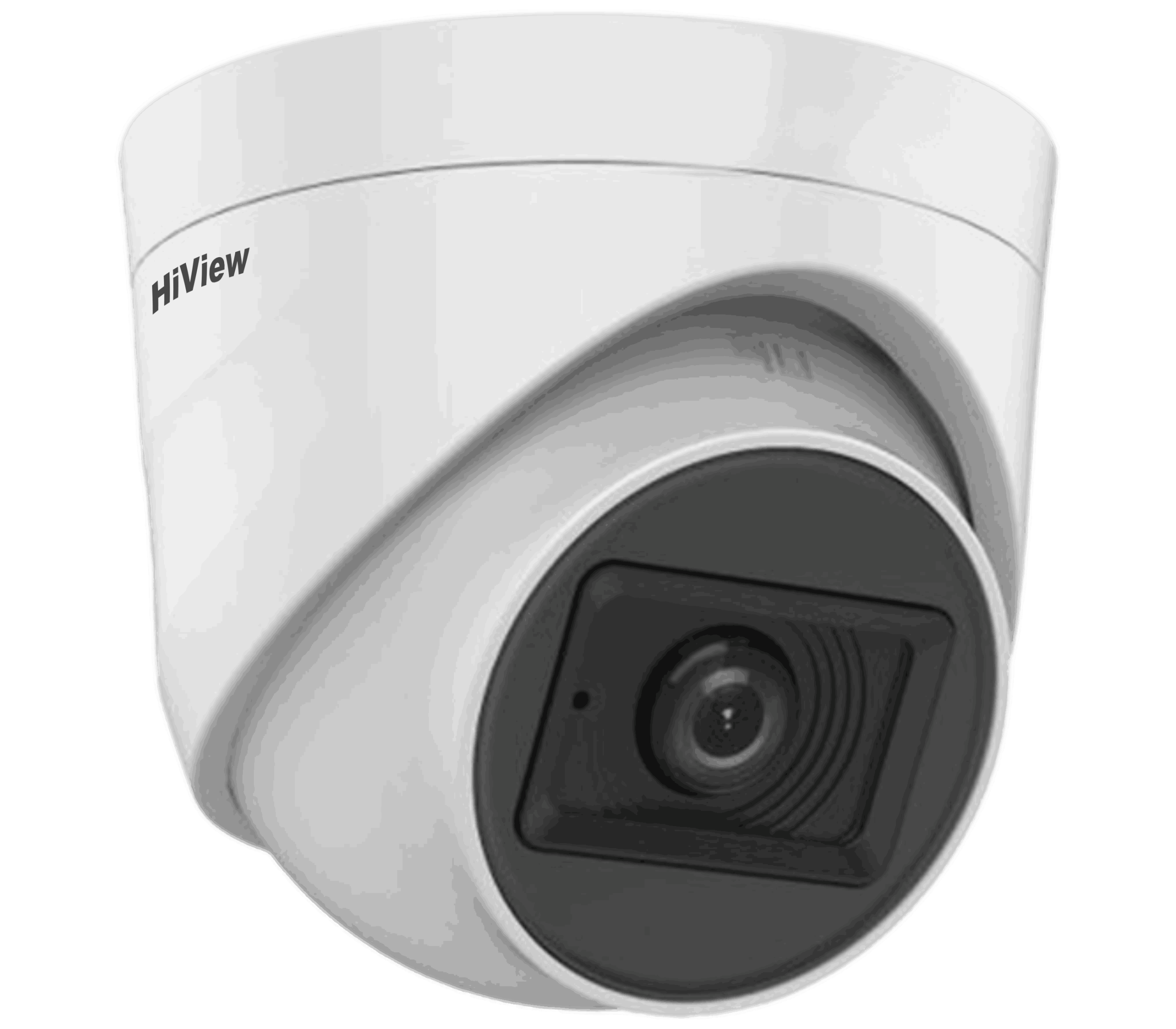

HiView TH-T120-PS
2MP Fixed Turret IR Camera
| Kategori | Detail |
|---|---|
| Kamera | Image Sensor: 2 MP CMOS Resolusi Maks.: 1920 (H) × 1080 (V) Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux dengan IR Shutter Time: PAL: 1/25 s – 1/50,000 s; NTSC: 1/30 s – 1/50,000 s Day/Night: IR Cut Filter Penyesuaian Sudut: Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360° Sistem Sinyal: PAL/NTSC |
| Lensa | Tipe: Fixed focal lens 2.8 mm, 3.6 mm, 6 mm FOV 2.8 mm: H 106.4°, V 57.9°, D 124.6° FOV 3.6 mm: H 79.6°, V 43.5°, D 93.7° FOV 6 mm: H 51.9°, V 30°, D 58.8° Mount: M12 |
| Pencahayaan IR | Jarak IR: hingga 20 m Smart IR: Ya |
| Gambar | Pengaturan: Brightness, Mirror, Sharpness Frame Rate: TVI: 1080p@30fps, 1080p@25fps AHD: 1080p@30fps, 1080p@25fps CVI: 1080p@30fps, 1080p@25fps CVBS: PAL/NTSC Mode Day/Night: Auto / Color / B/W Wide Dynamic Range: Digital WDR Peningkatan Gambar: BLC Noise Reduction: 2D DNR |
| Interface | Video Output: Switchable TVI / AHD / CVI / CVBS |
| Umum | Daya: 12 VDC ± 25%, Max. 2.7 W Material: Plastik Dimensi: Ø 84.6 mm × 78.9 mm (Ø 3.33″ × 3.11″) Berat: ± 140.5 g (0.31 lb) Suhu Operasi: −40°C hingga 60°C Kelembapan: ≤ 90% (non-condensing) Bahasa: English |
