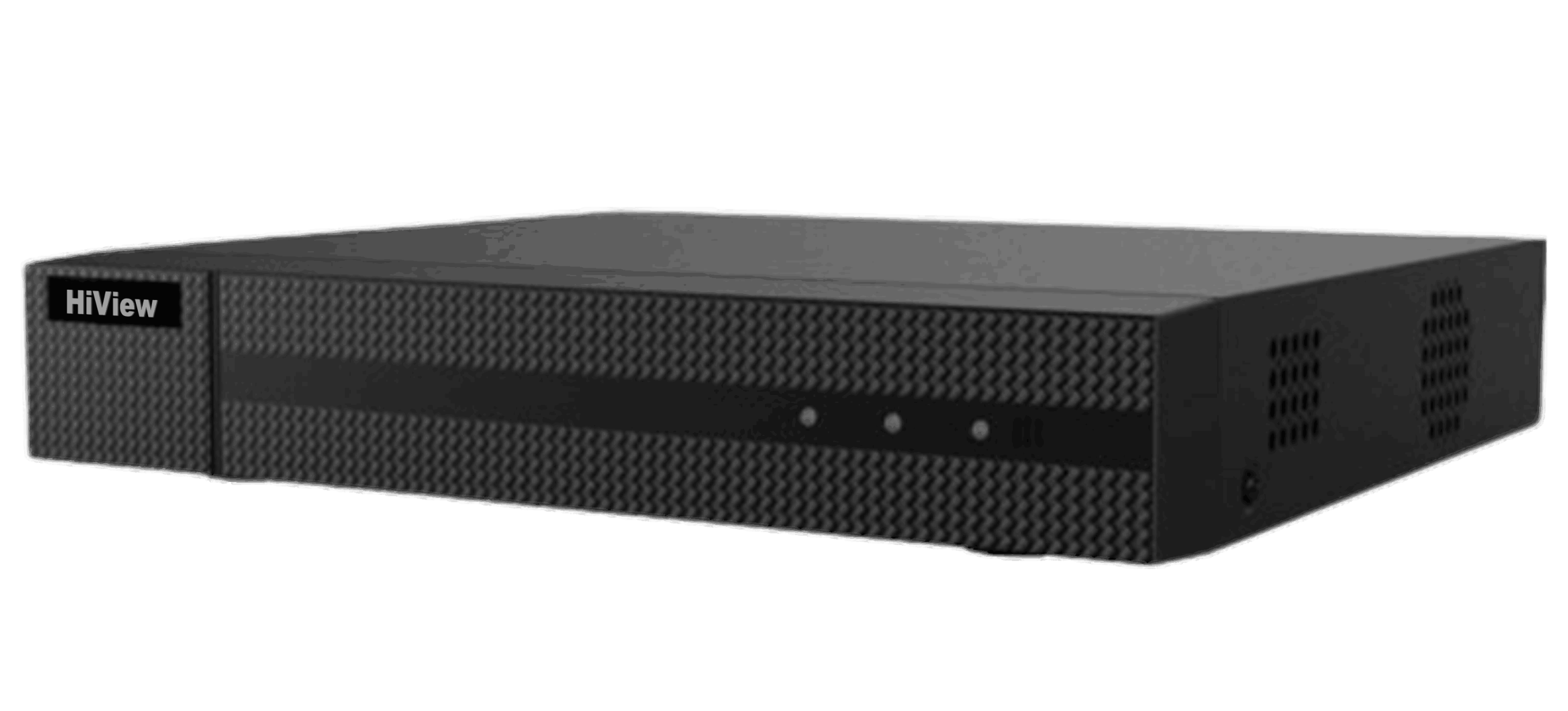

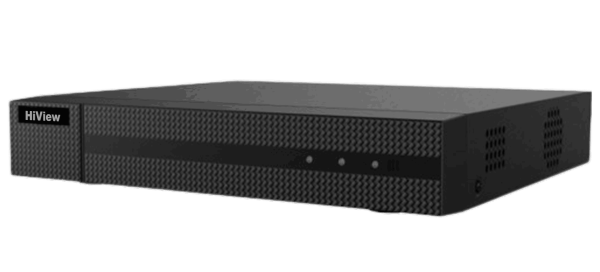

HiView XVR204-M1H
4-Channel 1080p-Lite Digital Video Recorder
| Kategori | Detail |
|---|---|
| Smart Function | Motion Detection 2.0 (aktif default di semua kanal analog) dengan klasifikasi manusia/kendaraan & pengurangan false alarm; quick search menurut objek/jenis event. |
| Compression & Recording | Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution (main stream): • akses 1080p: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF • akses 720p: 720p / WD1 / 4CIF / VGA / CIF Sub-stream: 4CIF@15 fps; CIF/QVGA@25/30 fps Frame Rate: hingga 25 fps (PAL) / 30 fps (NTSC) sesuai resolusi di atas Bitrate Video: 32 Kbps – 4 Mbps • Stream Type: Video / Video+Audio Audio Codec: G.711u • Audio Bitrate: 64 Kbps |
| Video & Audio I/O | IP Video Input: 1-ch (hingga 5-ch), resolusi hingga 1080p; mendukung H.265+/H.265/H.264+/H.264 IP camera Analog Video Input: 4-ch BNC (1.0 Vp-p, 75 Ω), coaxitron HDTVI/AHD/HDCVI: 1080p25/30, 720p25/30 CVBS Input: Support HDMI Output: 1-ch, hingga 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz VGA Output: 1-ch, hingga 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz Video Output Mode: HDMI/VGA simultan Audio In: 1-ch RCA (2.0 Vp-p, 1 kΩ) • Audio via Coax: 4-ch Audio Out: 1-ch RCA (Linear, 1 kΩ) • Two-Way Audio: reuse audio input pertama Synchronous Playback: 4-ch |
| Network | Total Bandwidth: 64 Mbps Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS Remote Connection: 32 • Interface: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet |
| Storage & Interfaces | SATA: 1 × SATA • Kapasitas: hingga 4 TB per disk USB: Rear panel 2 × USB 2.0 Alarm In/Out: N/A |
| General | Catu Daya: 12 VDC, 1.5 A • Konsumsi: ≤ 16 W (tanpa HDD) Suhu Operasi: −10°C hingga 55°C • Kelembapan: 10%–90% RH Dimensi (W×D×H): 200 × 200 × 45 mm • Berat: ≤ 0.8 kg (tanpa HDD) |
| Antarmuka Fisik | 1) Video & coaxial audio in • 2) HDMI • 3) VGA • 4) Audio OUT (RCA) 5) Audio IN (RCA) • 6) LAN & USB • 7) 12 VDC power • 8) GND |
