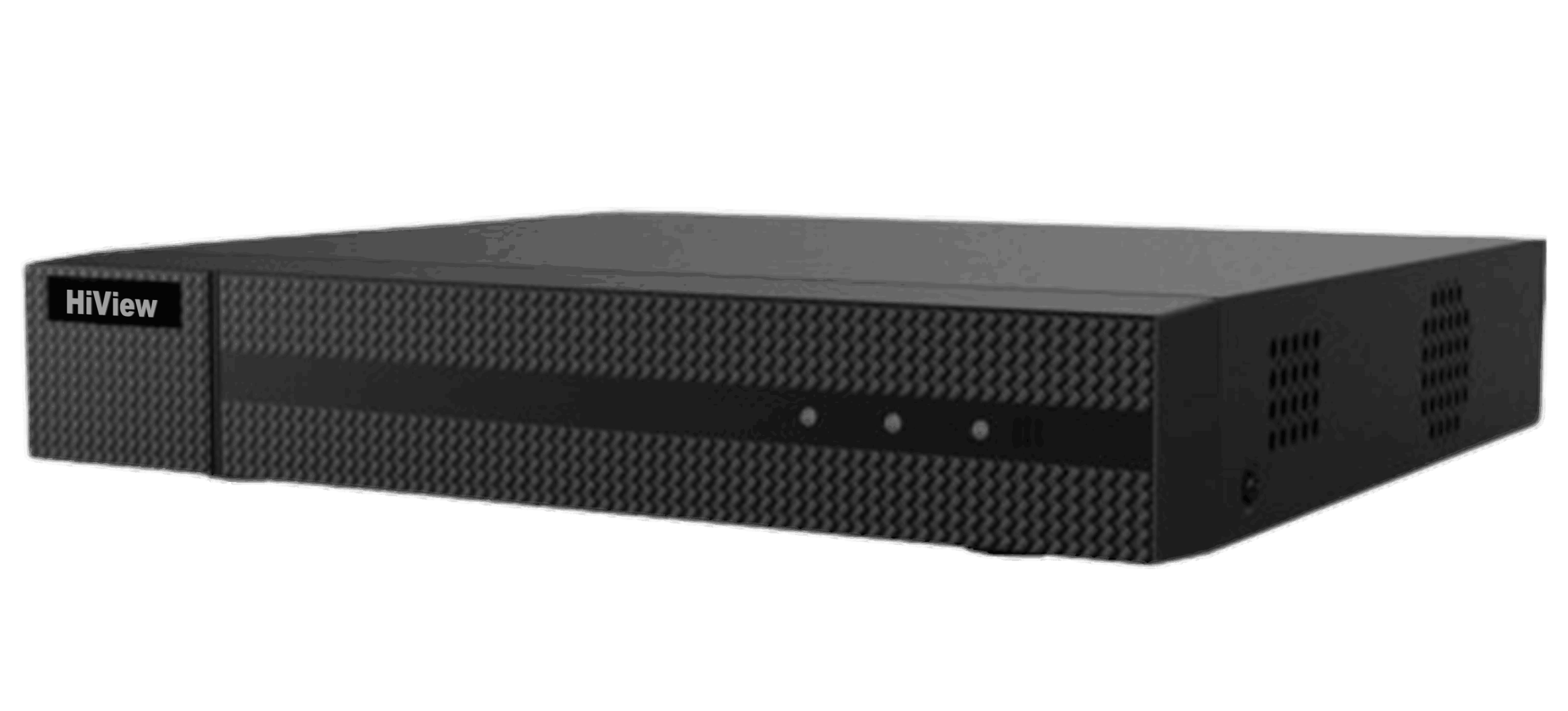

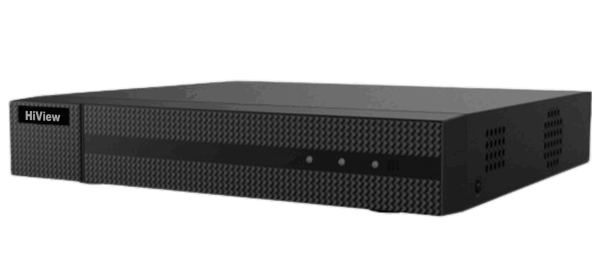

HiView XVR208-M1H
8-Channel 1080p-Lite Digital Video Recorder
| Kategori | Detail |
|---|---|
| Smart Function | Motion Detection 2.0 berbasis deep learning, mampu mengklasifikasikan manusia & kendaraan, mengurangi false alarm, mendukung pencarian cepat berdasarkan objek atau jenis event. |
| Compression & Recording | Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution: • 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF • 720p stream: 720p/WD1/4CIF/VGA/CIF • SD stream: WD1/4CIF/VGA/CIF Frame Rate: hingga 15 fps untuk main stream 1080p/720p; sub-stream 4CIF@15 fps, CIF/QVGA@25/30 fps Video Bitrate: 32 Kbps – 4 Mbps • Stream Type: Video / Video+Audio Audio Compression: G.711u • Audio Bitrate: 64 Kbps |
| Video & Audio I/O | IP Video Input: 2-ch (hingga 10-ch), resolusi hingga 5 MP, mendukung H.265+/H.265/H.264+/H.264 IP camera Analog Video Input: 8-ch BNC (1.0 Vp-p, 75 Ω), coaxitron HDTVI/AHD/HDCVI: 1080p25/30, 720p25/30 CVBS Input: Support HDMI Output: 1-ch, hingga 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz VGA Output: 1-ch, hingga 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz Video Output Mode: HDMI/VGA simultan Audio In: 1-ch RCA (2.0 Vp-p, 1 kΩ) + 8-ch via coaxial Audio Out: 1-ch RCA (Linear, 1 kΩ) • Two-Way Audio: reuse input audio pertama Synchronous Playback: 8-ch |
| Network | Total Bandwidth: 72 Mbps Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS Remote Connection: hingga 64 • Interface: 1 × RJ-45 10/100 Mbps Ethernet |
| Storage & Interfaces | SATA: 1 × interface, kapasitas hingga 4 TB per disk USB: 2 × USB 2.0 (rear panel) Alarm In/Out: N/A |
| General | Catu Daya: 12 VDC, 1.5 A • Konsumsi: ≤ 16 W (tanpa HDD) Suhu Operasi: −10°C hingga 55°C • Kelembapan: 10%–90% RH Dimensi (W×D×H): 200 × 200 × 45 mm • Berat: ≤ 1 kg (tanpa HDD) |
| Antarmuka Fisik | 1) Video & coaxial audio in • 2) HDMI • 3) VGA • 4) Audio OUT (RCA) 5) Audio IN (RCA) • 6) LAN & USB • 7) 12 VDC power • 8) GND |
