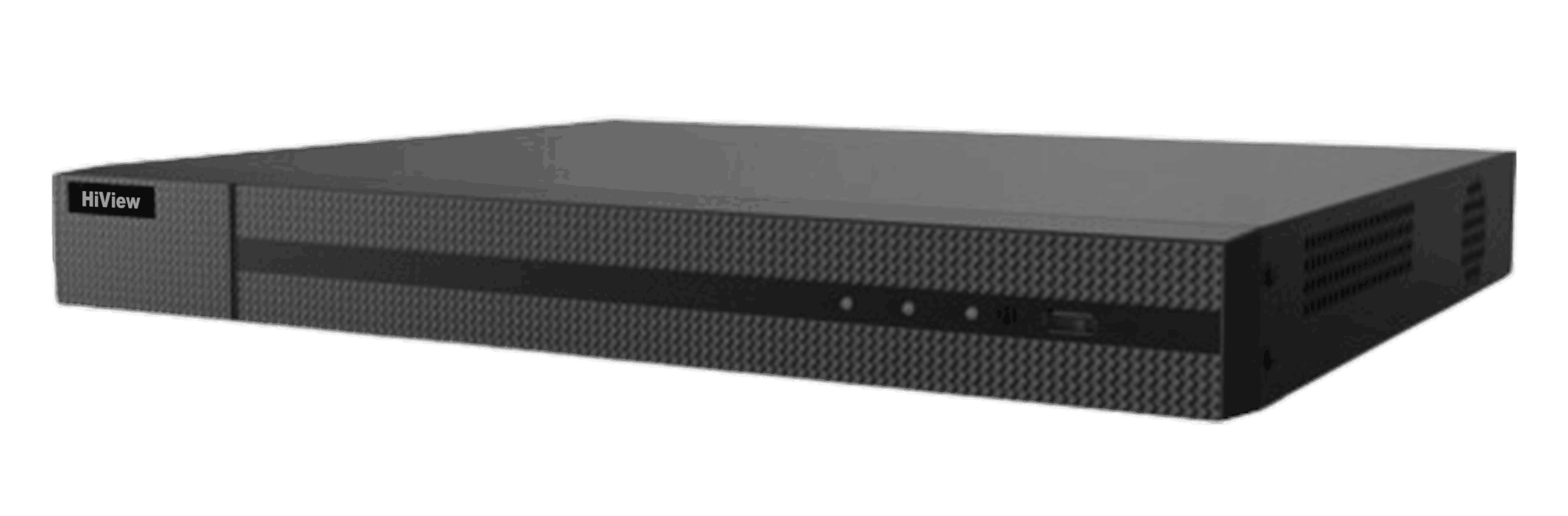

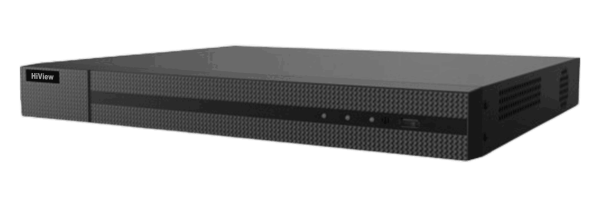

HiView XVR216-M1H
16-Channel 1080p-Lite Digital Video Recorder
| Kategori | Detail |
|---|---|
| Smart Function | Motion Detection 2.0 berbasis deep learning, aktif default untuk kanal analog; klasifikasi manusia & kendaraan, mengurangi false alarm; pencarian cepat berdasarkan objek/jenis event. |
| Compression & Recording | Video: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution (main stream): • akses 1080p: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF • akses 720p: 720p / WD1 / 4CIF / VGA / CIF • akses SD: WD1 / 4CIF / VGA / CIF Frame Rate (main stream): 1080p & 720p hingga 15 fps; SD hingga 25 fps (P)/30 fps (N) Sub-stream: CIF/QVGA @ 25/30 fps; 4CIF @ 15 fps Video Bitrate: 32 Kbps – 4 Mbps • Stream Type: Video / Video+Audio Audio: G.711u @ 64 Kbps |
| Video & Audio I/O | IP Video Input: 2-ch (hingga 18-ch), resolusi IP hingga 5 MP Analog Video Input: 16-ch BNC (1.0 Vp-p, 75 Ω), mendukung coaxitron HDTVI/AHD/HDCVI: 1080p25/30, 720p25/30 • CVBS: PAL/NTSC HDMI Output: 1-ch, hingga 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz VGA Output: 1-ch, hingga 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz Video Output Mode: HDMI/VGA simultan Audio In: 1-ch RCA (2.0 Vp-p, 1 kΩ) + 16-ch via coaxial Audio Out: 1-ch RCA (Linear, 1 kΩ) • Two-Way Audio: memakai audio input pertama Synchronous Playback: 16-ch |
| Network | Total Bandwidth: 96 Mbps Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS Remote Connection: hingga 128 Interface: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet |
| Storage & Interfaces | SATA: 1 × interface • Kapasitas hingga 10 TB per disk USB: Rear panel 2 × USB 2.0 |
| General | Catu Daya: 12 VDC, 1.6 A • Konsumsi: ≤ 10 W (tanpa HDD) Suhu Operasi: −10°C hingga 55°C • Kelembapan: 10%–90% RH Dimensi (W×D×H): 260 × 222 × 45 mm • Berat: ≤ 1.1 kg (tanpa HDD) |
| Antarmuka Fisik | 1) Video & coaxial audio in • 2) HDMI • 3) VGA • 4) AUDIO OUT (RCA) 5) AUDIO IN (RCA) • 6) USB • 7) LAN • 8) 12 VDC power • 9) GND |
