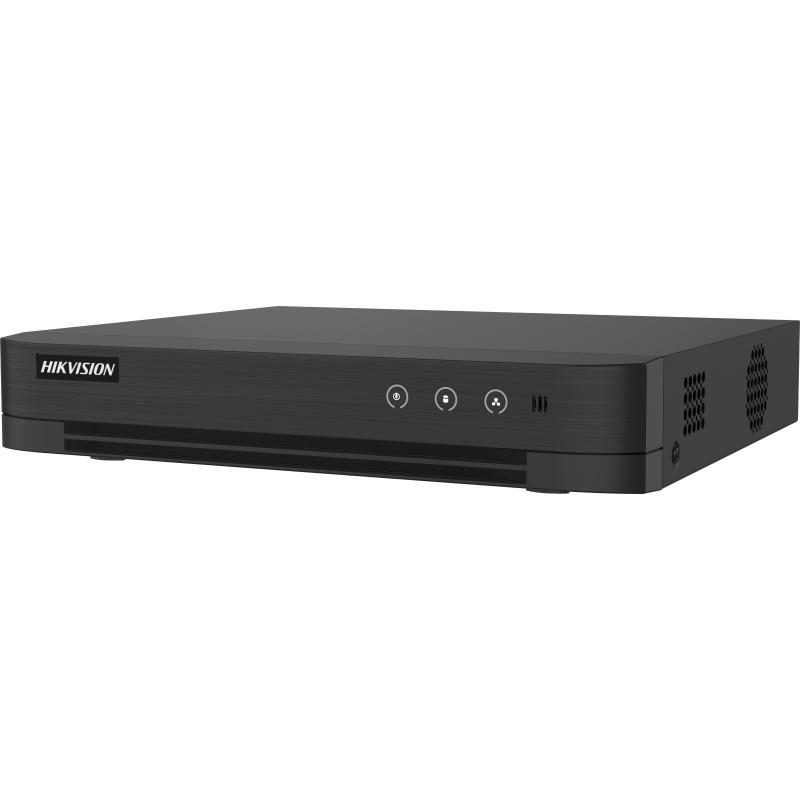

Hikvision DVR AcuSense AI Human & Motion Detection (iDS-7204HTHI-M1/S)

Name: Hikvision DVR AcuSense AI Human & Motion Detection (iDS-7204HTHI-M1/S) - SHAM CCTV
Price: 2550800 IDR
Availability: InStock

Rp2.550.800

Hikvision iDS-7204HTHI-M1/S

4-ch 4K 1U H.265 AcuSense DVR

AcuSense: Motion Detection 2.0 (klasifikasi manusia/kendaraan) + Perimeter Protection hingga 4-ch
Kompresi: H.265 Pro+/H.265/H.264+ — hemat bandwidth & storage
Input: 4-ch analog (HDTVI/AHD/HDCVI/CVBS) + IP 4-ch (hingga 8-ch) hingga 8 MP
Output: HDMI 4K@30Hz + VGA 1080p + CVBS; playback sinkron 4-ch
Audio: audio via coax + RCA in/out, dukung two-way audio
Penyimpanan & I/O: 1× SATA (maks 10 TB), 2× USB 2.0, RS-485
Jaringan: Gigabit LAN, total bandwidth 96 Mbps, Hik-Connect ready
Daya & fisik: 12 VDC, konsumsi ≤ 10 W, 1U (315×242×45 mm)

*Motion Detection 2.0 dan Perimeter Protection tidak bisa aktif bersamaan.

4-Channel
AcuSense
H.265 Pro+
HDMI 4K
SATA 10 TB
Hik-Connect

Hubungi Admin

Kategori: Hikvision Tag: DVR AcuSense Brand: Hikvision

Deskripsi
Informasi Tambahan

Post Views: 16

Hikvision iDS-7204HTHI-M1/S

4-ch 4K 1U H.265 AcuSense DVR

Spesifikasi Lengkap Hikvision iDS-7204HTHI-M1/S
Kategori	Spesifikasi
Fitur AI (AcuSense)	Motion Detection 2.0 berbasis deep learning aktif default di semua kanal analog (klasifikasi manusia/kendaraan, reduksi false alarm) + pencarian cepat per objek/event. Perimeter Protection (Line Crossing/Intrusion): hingga 4-ch. Facial Detection & Capture: deteksi & pencarian gambar wajah.
Input Video	Analog: 4-ch BNC (1.0 Vp-p, 75 Ω), dukung coaxitron (HDTVI/AHD/HDCVI/CVBS). IP: 4-ch (hingga 8-ch), resolusi IP hingga 8 MP; dukung kamera IP H.265+/H.265/H.264+/H.264. Total bandwidth sistem: 96 Mbps.
Format & Frame Rate Analog	HDTVI: 8 MP@15/12.5 fps • 3K@20 fps • 5 MP@20/12 fps • 4 MP@30/25 fps • 3 MP@18 fps • 1080p/720p@30/25 fps. AHD: 5 MP@20/12 fps • 4 MP@30/25 fps • 1080p/720p@30/25 fps. HDCVI: 8 MP@15/12.5 fps • 5 MP@20 fps • 4 MP@30/25 fps • 1080p/720p@30/25 fps.
Perekaman & Kompresi	Kompresi: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264. Resolusi encoding: 8 MP / 5 MP / 3K / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF. Frame rate utama: 8 MP@15/12 fps • 3K@20 fps • 5 MP@20/12 fps • 3 MP@18 fps • 4 MP/1080p/720p–CIF @ 25/30 fps; Sub-stream: WD1/4CIF/CIF @ 25/30 fps.
Output & Playback	HDMI: hingga 4K (3840×2160)@30Hz, 2K(2560×1440)@60Hz, 1920×1080/1280×1024/1280×720@60Hz. VGA: hingga 1920×1080@60Hz; CVBS: 1-ch BNC (PAL 704×576 / NTSC 704×480). Mode output: HDMI/VGA independent; Playback sinkron: 4-ch.
Audio	Input: 1-ch RCA (2.0 Vp-p, 1 kΩ) + 4-ch audio via coax pada kanal video. Output: 1-ch RCA (Linear, 1 kΩ). Two-way audio: 1-ch (memakai input audio pertama).
Jaringan	Antarmuka: 1× RJ45 10/100/1000 Mbps self-adaptive; koneksi jarak jauh: hingga 32 klien. Protokol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF; dukung Wi-Fi dongle via USB.
Penyimpanan & Interface	HDD: 1× SATA (hingga 10 TB). USB: Depan 1× USB 2.0, Belakang 1× USB 2.0; Serial: RS-485 (half-duplex). Alarm In/Out: N/A (opsional pada beberapa varian paket—cek label).
Daya & Lingkungan	Catu daya: 12 VDC, 2 A; konsumsi: ≤ 10 W (tanpa HDD). Suhu kerja: −10 °C s.d. +55 °C; Kelembapan: 10%–90%.
Fisik	Dimensi (W×D×H): 315 × 242 × 45 mm; Berat: ≤ 1.8 kg; rangka 1U.
Catatan	Motion Detection 2.0 dan Perimeter Protection tidak bisa aktif bersamaan (pilih salah satu). Paket tertentu dapat menyertakan variasi I/O audio/alarm — rujuk label paket unit.
