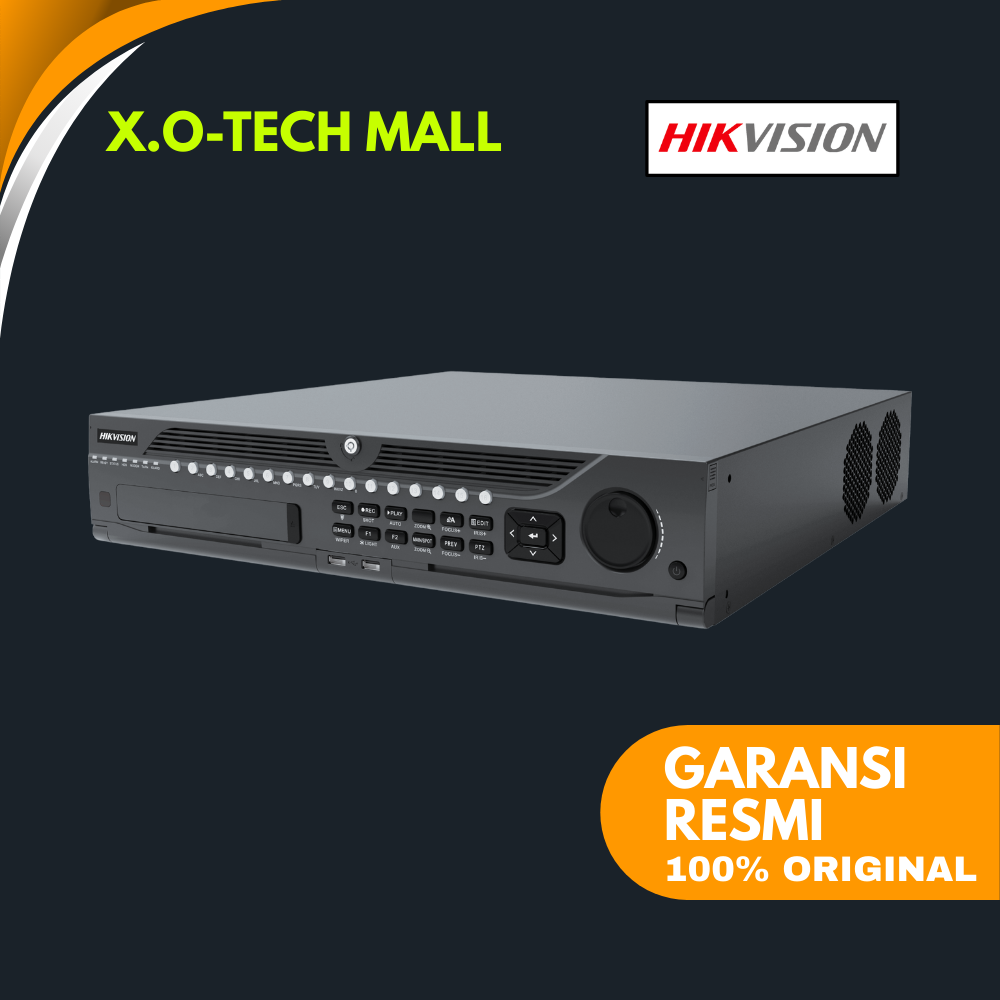

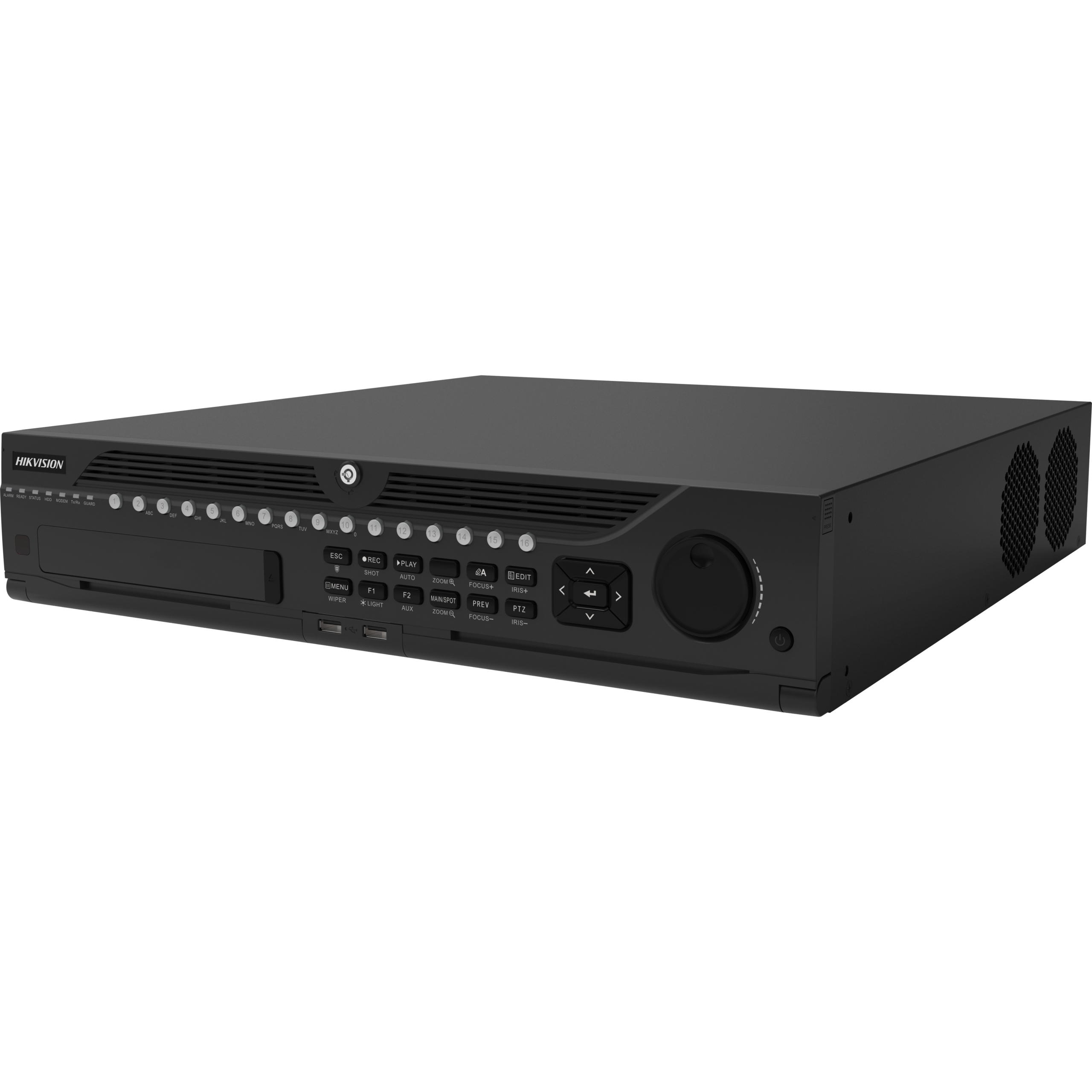

Hikvision Turbo HD DVR HQHI/HUHI Series (iDS-9032HQHI-M8/S)
Hikvision Turbo HD DVR HQHI/HUHI Series (iDS-9032HQHI-M8/S) - Gambar 2

Hikvision Turbo HD DVR HQHI/HUHI Series (iDS-9032HQHI-M8/S)

Rp18.854.100

Hikvision iDS-9032HQHI-M8/S

32-ch 1080p 2U H.265 AcuSense DVR (8×SATA + eSATA)

  • AcuSense: Motion Detection 2.0 (klasifikasi manusia/kendaraan) + Perimeter Protection
  • Kompresi: H.265 Pro+/H.265/H.264+ — hemat bandwidth & storage
  • Input: 32-ch analog (HDTVI/AHD/HDCVI/CVBS) + IP default 16-ch (hingga 48-ch) s.d. 6 MP
  • Output: HDMI2 4K@30Hz + HDMI1 1080p + VGA + CVBS; playback sinkron 16-ch
  • Perekaman: hingga 4 MP Lite (mode 1080p Lite tersedia); decoding 16-ch 1080p@30 fps
  • Audio & Alarm: 16-in/2-out RCA + two-way 1-ch; Alarm 16/8
  • Penyimpanan & I/O: 8× SATA (maks 12 TB/disk) + eSATA, USB 2.0×2 (depan) + USB 3.0 (belakang), RS-232/RS-485
  • Jaringan: Dual Gigabit LAN, bandwidth 200/160 Mbps (in/out), hingga 128 koneksi; Hik-Connect ready
  • Daya & fisik: 100–240 VAC, ≤ 40 W, rangka 2U (445×465×88 mm)

32-Channel
AcuSense
H.265 Pro+
HDMI 4K
8×SATA + eSATA
Dual GbE

Hubungi Admin
Kategori: Tag: Brand:
Post Views: 13

Hikvision iDS-9032HQHI-M8/S

32-ch 1080p 2U H.265 AcuSense DVR (8×SATA + eSATA)

Spesifikasi Lengkap Hikvision iDS-9032HQHI-M8/S
Kategori Spesifikasi
Fitur AI (AcuSense) Motion Detection 2.0 (deep learning) aktif default di semua kanal analog — klasifikasi manusia/kendaraan, reduksi false alarm, quick search per objek/event.
Perimeter Protection (Line Crossing/Intrusion).
Input Video Analog: 32-ch BNC (1.0 Vp-p, 75 Ω), dukung coaxitron; sinyal: HDTVI/AHD/HDCVI/CVBS.
IP (default): 16-ch (dapat diperluas hingga 48-ch) s.d. 6 MP (H.265+/H.265/H.264+/H.264).
Bandwidth masuk/keluar: 200 Mbps / 160 Mbps.
Format & Frame Rate Analog HDTVI: 3K • 4 MP • 1080p@25/30 • 720p@25/30 fps.
AHD: 4 MP • 1080p@25/30 • 720p@25/30 fps; HDCVI: 1080p@25/30 • 720p@25/30 fps; CVBS: PAL/NTSC.
Perekaman & Kompresi Video: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264.
Resolusi encoding (1080p Lite OFF): 3K Lite / 4 MP Lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF.
Resolusi encoding (1080p Lite ON): 3K Lite / 4 MP Lite / 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF.
Frame rate utama contoh: 3K Lite@12 fps • 4 MP Lite/1080p@15 fps • 720p/WD1/4CIF/VGA/CIF@20 fps; Sub-stream: WD1/4CIF@12 fps, CIF@25/30 fps; Bit rate video: 32 Kbps – 6 Mbps.
Output & Playback HDMI 2: hingga 4K (3840×2160)@30Hz • 2K@60Hz • 1080p/1280×1024/1280×720/1024×768@60Hz.
HDMI 1: hingga 1080p@60Hz • VGA: hingga 1080p@60Hz • CVBS: 1-ch BNC (PAL 704×576 / NTSC 704×480).
Mode: HDMI1/VGA simultan, HDMI2 independent • Playback sinkron: 16-ch • Decoding: 16-ch 1080p@30 fps.
Audio Input: 16-ch RCA (2.0 Vp-p, 1 kΩ) • Output: 2-ch RCA (Linear, 1 kΩ) • Two-way audio: 1-ch (RCA independen).
Jaringan Antarmuka: 2× RJ45 Gigabit (10/100/1000 Mbps) • Koneksi jarak jauh: hingga 128 klien.
Protokol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP.
Penyimpanan & Interface HDD: 8× SATA (hingga 12 TB/disk) + eSATA (hot-swap didukung).
USB: Depan 2× USB 2.0 • Belakang 1× USB 3.0 • Serial: RS-232, RS-485 (full-duplex), keyboard • Alarm In/Out: 16/8.
Daya & Lingkungan Catu daya: 100–240 VAC, 50/60 Hz • Konsumsi: ≤ 40 W (tanpa HDD).
Suhu kerja: −10 °C s.d. +55 °C • Kelembapan: 10%–90%.
Fisik Dimensi (W×D×H): 445 × 465 × 88 mm (rackmount 2U) • Berat: ≤ 10 kg (tanpa HDD).
Lainnya POS overlay & triggered recording • Smart search untuk playback efisien.

Informasi Tambahan

Berat 10000 gram
Dimensi 44,5 × 46,5 × 8,8 cm
