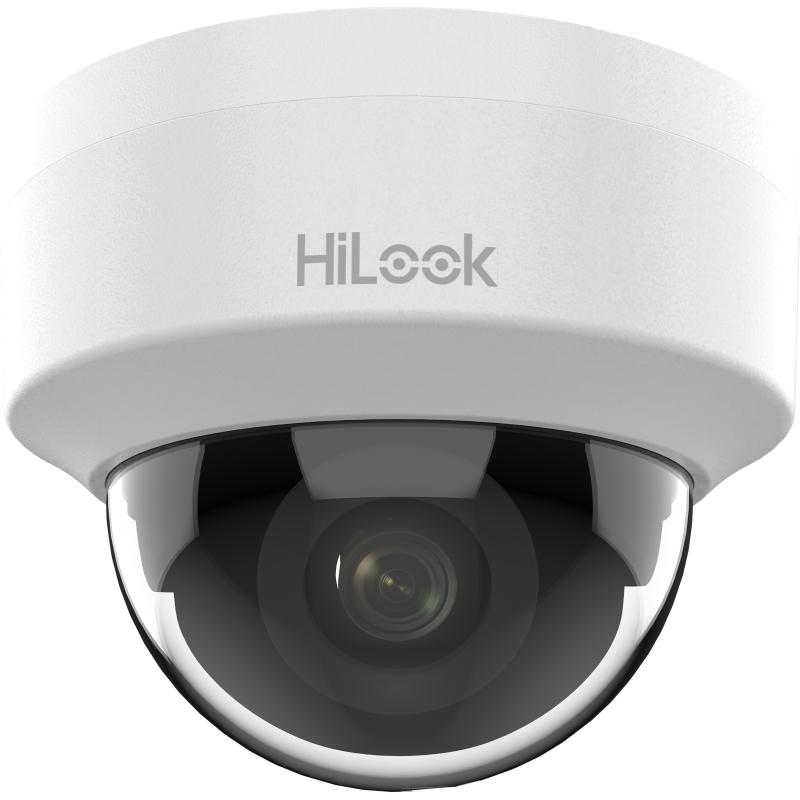

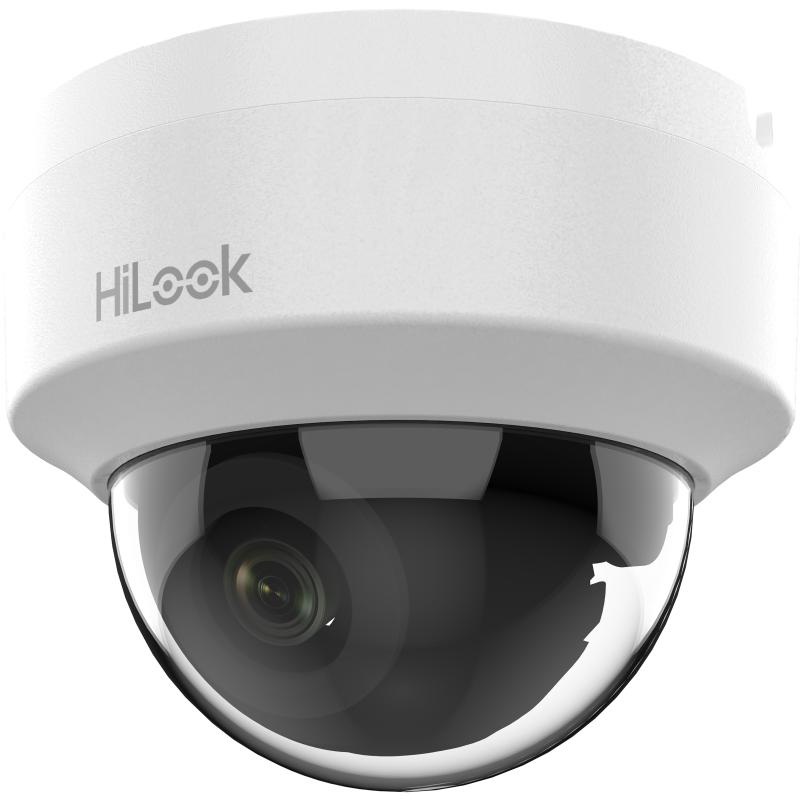

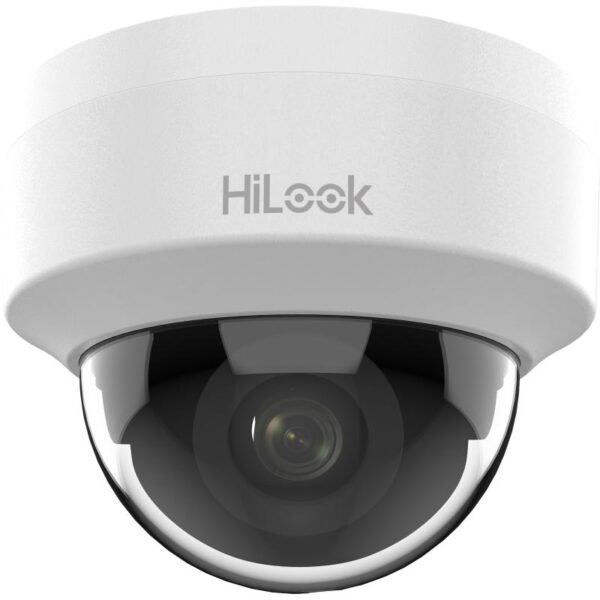

HiLook IPC-D121H-C
2 MP Fixed Dome Network Camera
| Kategori | Spesifikasi |
|---|---|
| Kamera | Sensor: 1/2.9″ Progressive Scan CMOS Maks. resolusi: 1920 × 1080 (2 MP) Min. iluminasi: Warna 0.01 Lux @ (F2.2, AGC ON); B/W 0 Lux (IR ON) Shutter: 1/3 s – 1/100,000 s Day/Night: IR cut filter (ICR) Penyesuaian sudut: Pan 0°–355°, Tilt 0°–75° |
| Lensa | Jenis: Lensa tetap, opsi 2.8 mm / 4 mm (M12, F2.2) Sudut pandang (FOV): • 2.8 mm — Hor 101°, Ver 56°, Diag 118° • 4 mm — Hor 80°, Ver 44°, Diag 94° DoF: 2.8 mm (0.8 m – ∞), 4 mm (1 m – ∞) |
| DORI | 2.8 mm: D 44 m, O 17 m, R 8 m, I 4 m 4 mm: D 55 m, O 22 m, R 11 m, I 5 m |
| IR & Pencahayaan | Tipe lampu bantu: IR 850 nm Jarak IR: hingga 20 m Smart IR: Ya |
| Video | Main stream: 25 fps (50 Hz) / 30 fps (60 Hz) @ 1920×1080, 1280×720 Sub stream: 25/30 fps @ 640×480, 640×360 Kompresi: H.265+/H.265/H.264+/H.264 (main); H.265/H.264 (sub) Bitrate: 32 Kbps – 8 Mbps H.264: Baseline/Main/High Profile; H.265: Main Profile BRC: CBR/VBR |
| Gambar | WDR: Digital WDR SNR: ≥ 52 dB Day/Night switch: Day/Night/Auto/Schedule Peningkatan: BLC, HLC, 3D DNR Pengaturan: Saturation, Brightness, Contrast, Sharpness, Gain, White Balance (via klien/web) |
| Jaringan | Protokol: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS Live view simultan: hingga 6 channel API/SDK: ISAPI, SDK Keamanan: proteksi sandi, watermark, auth HTTP (basic/digest), audit log, host auth (MAC) |
| Antarmuka | 1× RJ45 10/100 Mbps self-adaptive Ethernet |
| Event | Basic event: Motion detection, Exception Linkage: Notify surveillance center |
| Daya | 12 VDC ±25% (Ø5.5 mm, reverse polarity protection), 0.4 A, maks. 4.8 W PoE: IEEE 802.3af Class 3, maks. 6.5 W |
| Fisik | Material: Plastik Dimensi: Ø110.8 × 85.2 mm Berat: ±240 g (±380 g dengan kemasan) Kondisi penyimpanan: −10 °C hingga 40 °C; RH ≤95% (non-condensing) |
