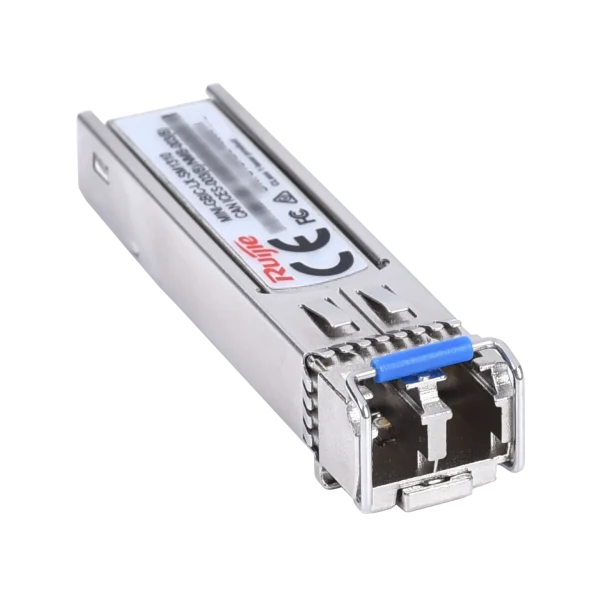

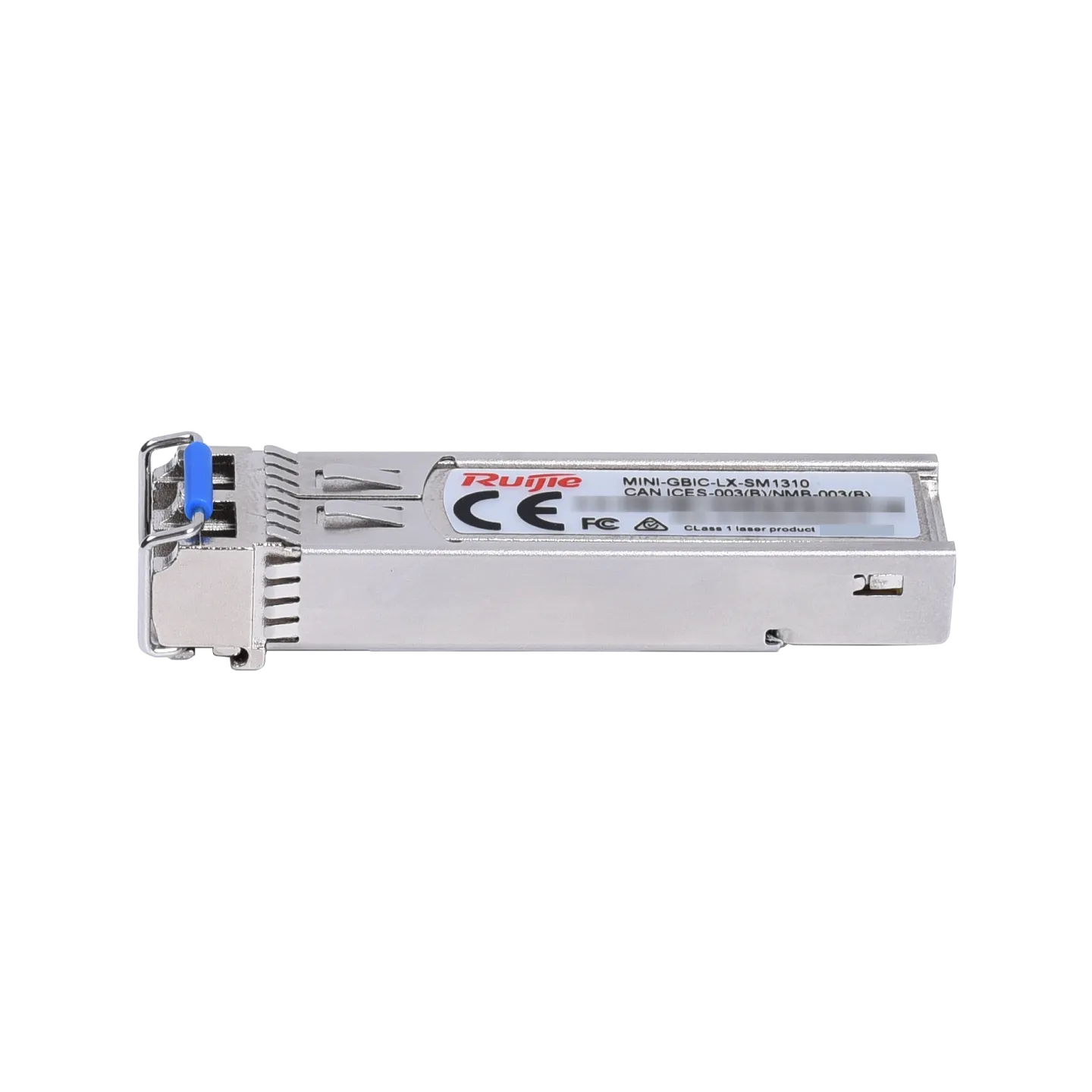

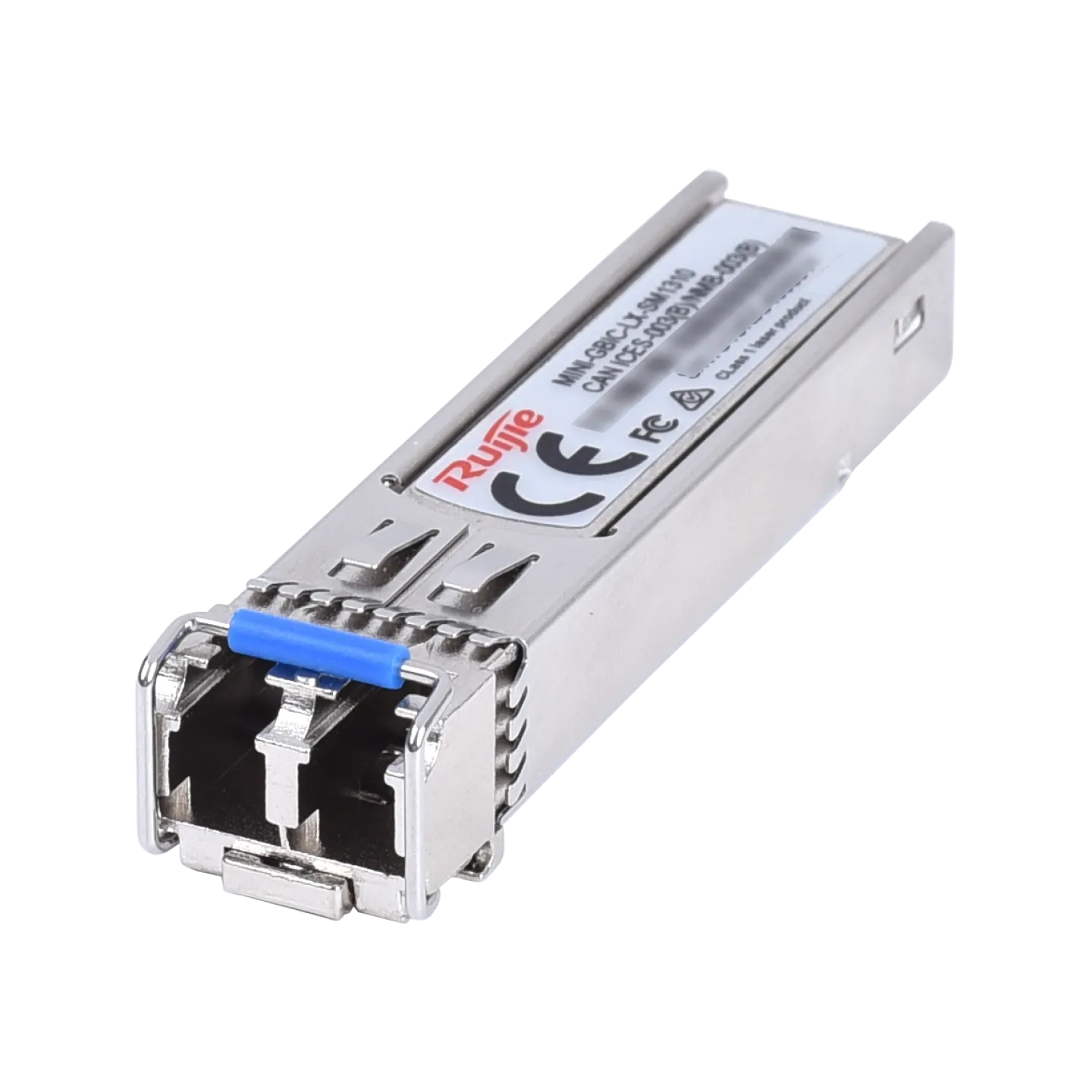

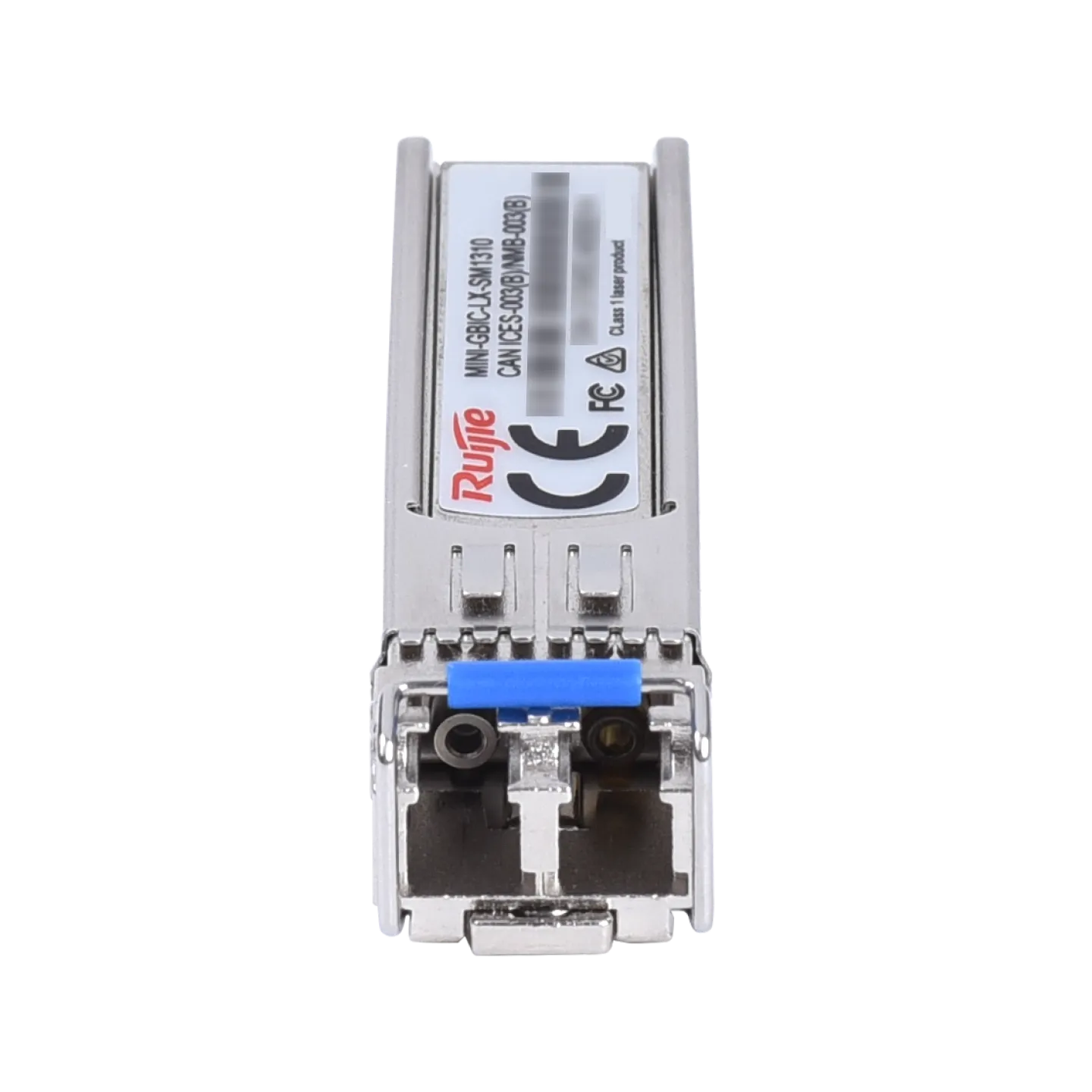

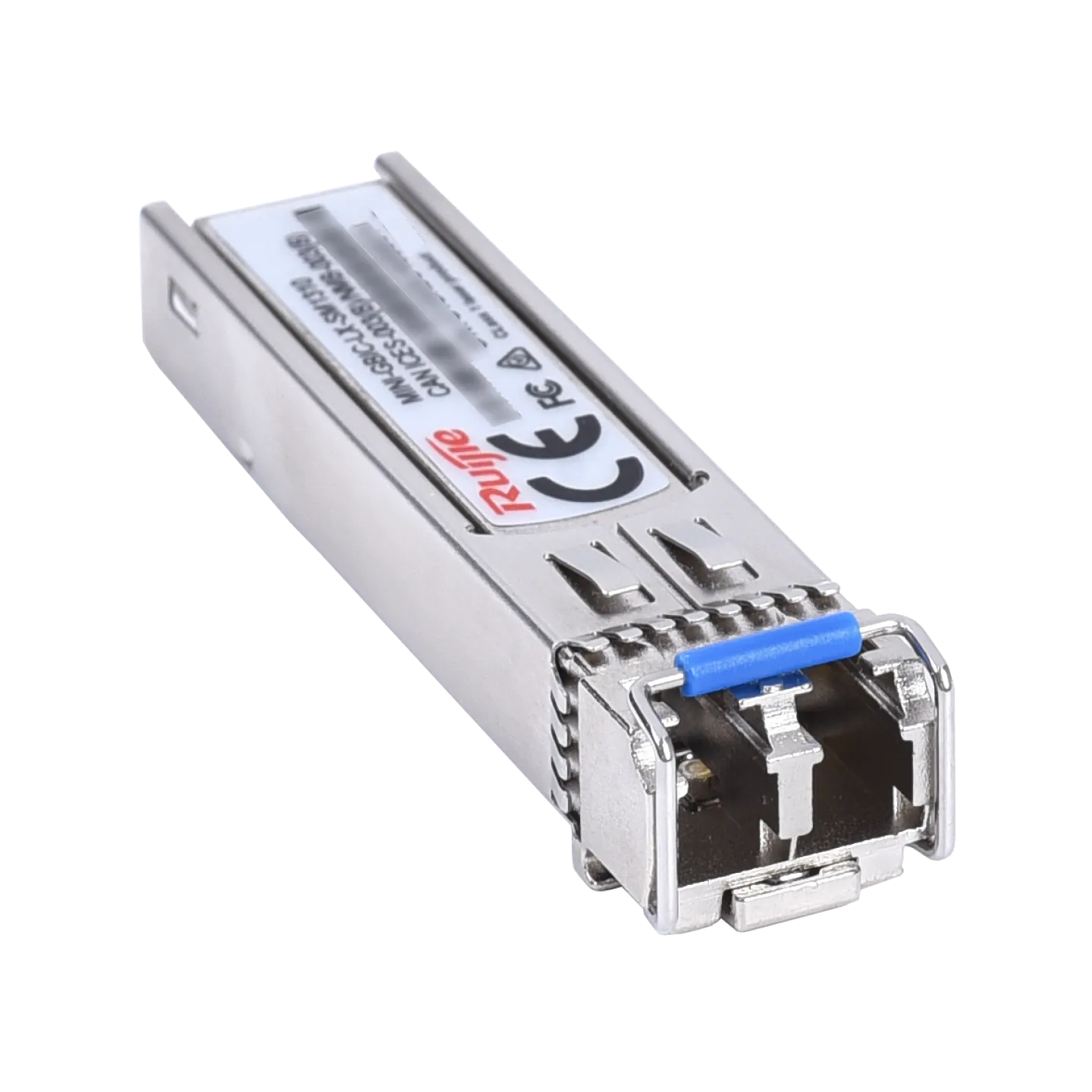

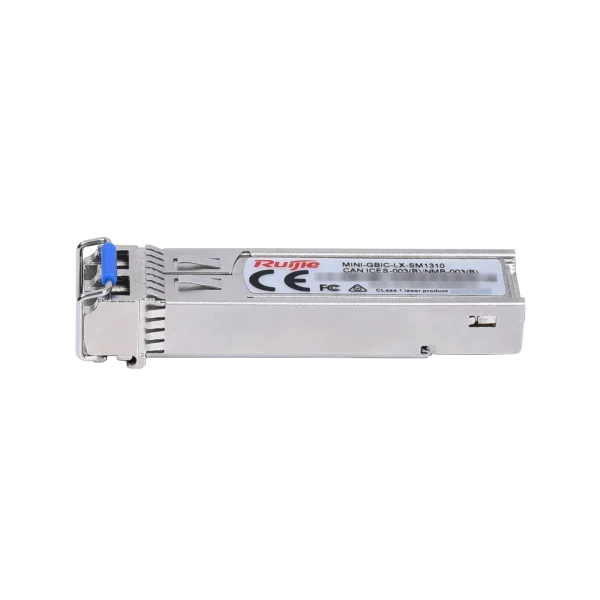

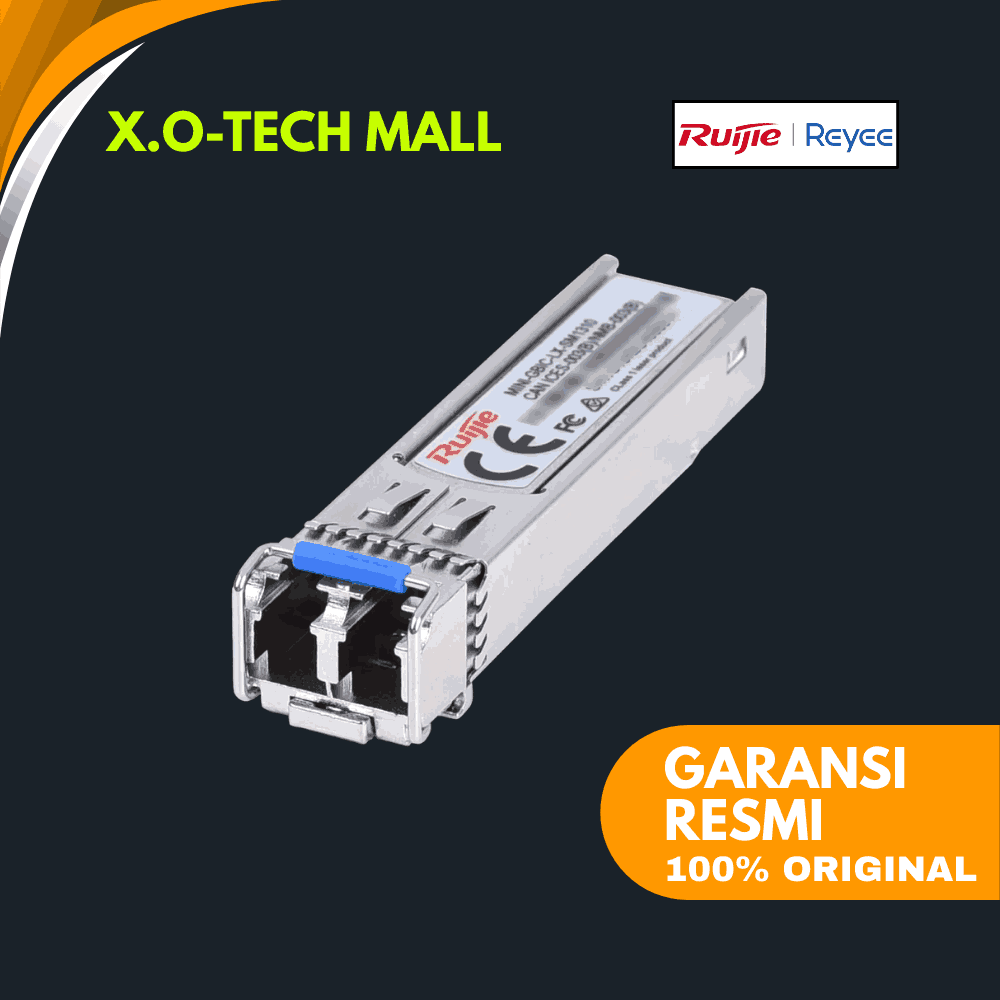

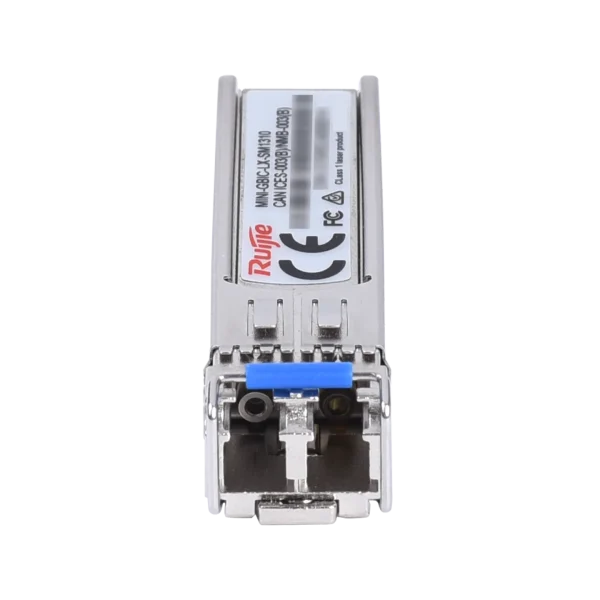

MINI-GBIC-LX-SM1310
SFP Gigabit Optical Transceiver – 1000BASE-LX, 1310 nm, 10 km
| Kategori | Detail |
|---|---|
| Standar & Form Factor | 1000BASE-LX (Gigabit Ethernet, long wavelength) SFP (mini-GBIC), hot-swappable |
| Kecepatan & Wavelength | Data rate: 1000 Mbps Panjang gelombang: 1310 nm |
| Fiber & Jarak | Fiber: Single-Mode Fiber (SMF) Core Size: 9/125 µm Jarak Maksimal: 10 km |

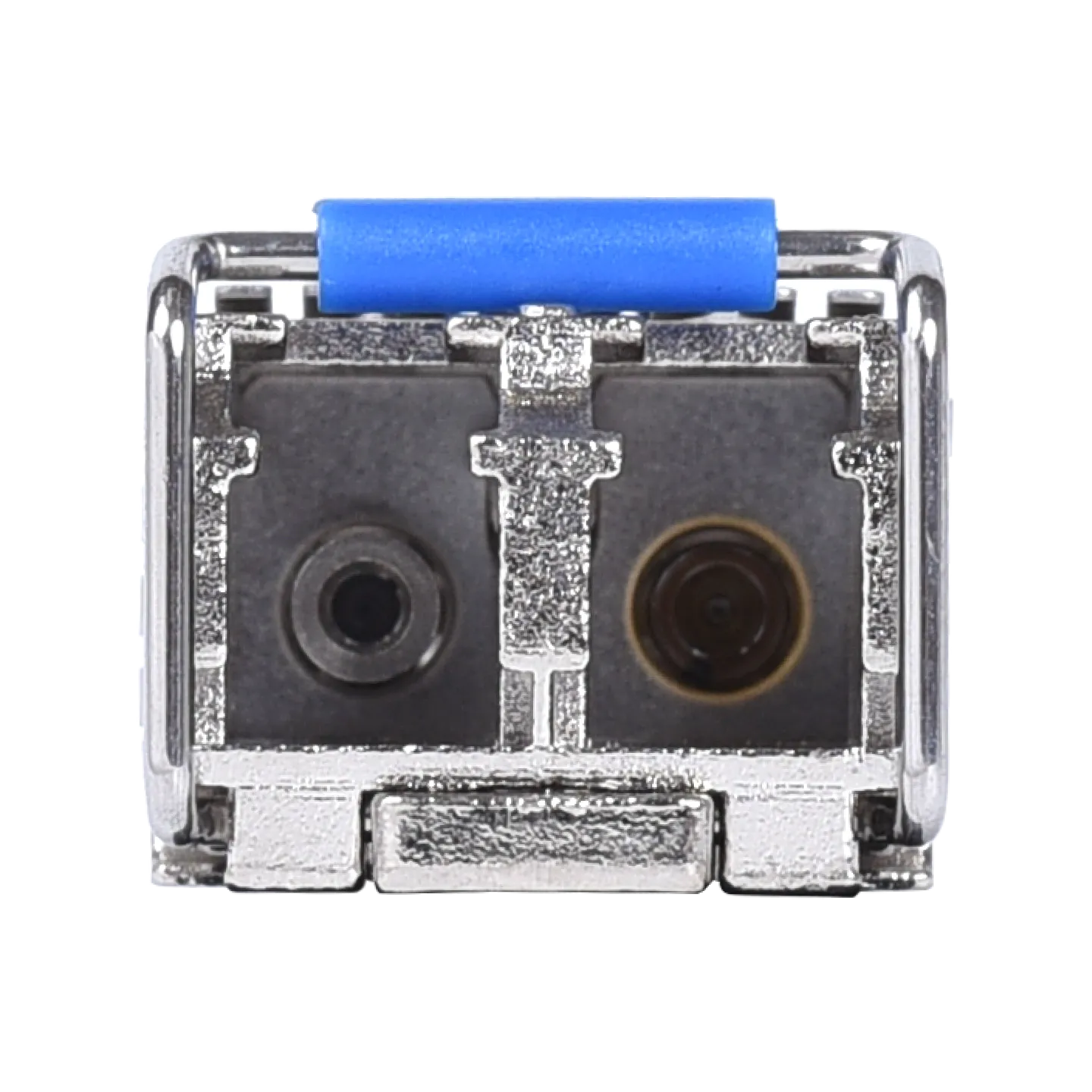

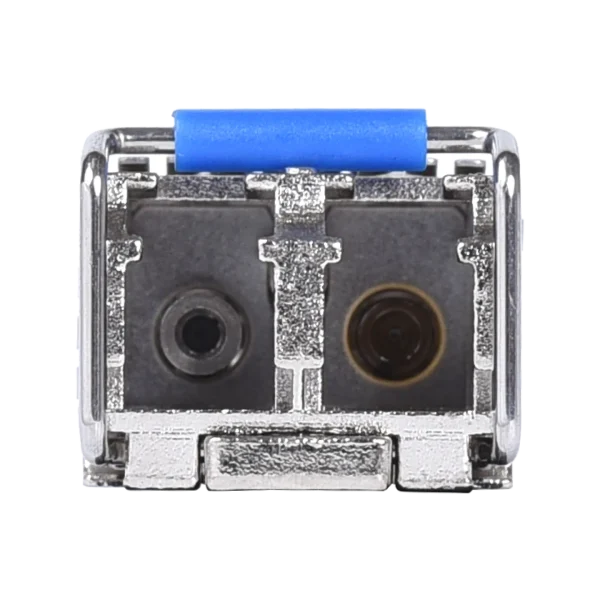

| Optik | Transmitter Power: –9.5 dBm (min) ~ –3 dBm (max) Receiver Sensitivity: –20 dBm (min), –3 dBm (max) Connector: LC Duplex |
| Fitur | Mendukung DDM (Digital Diagnostic Monitoring) Konsumsi daya ≤1.5 W Hot-swappable |
| Lingkungan Operasional | Suhu Operasional: 0 °C ~ +70 °C Suhu Penyimpanan: –40 °C ~ +85 °C Kelembaban: 10% – 90% RH (non-condensing) |
| Dimensi & Berat* | Dimensi: 56.5 × 13.5 × 8.5 mm (P × L × T) Berat: ±20–25 g |
| Garansi | Garansi produk hingga 3 Tahun |
