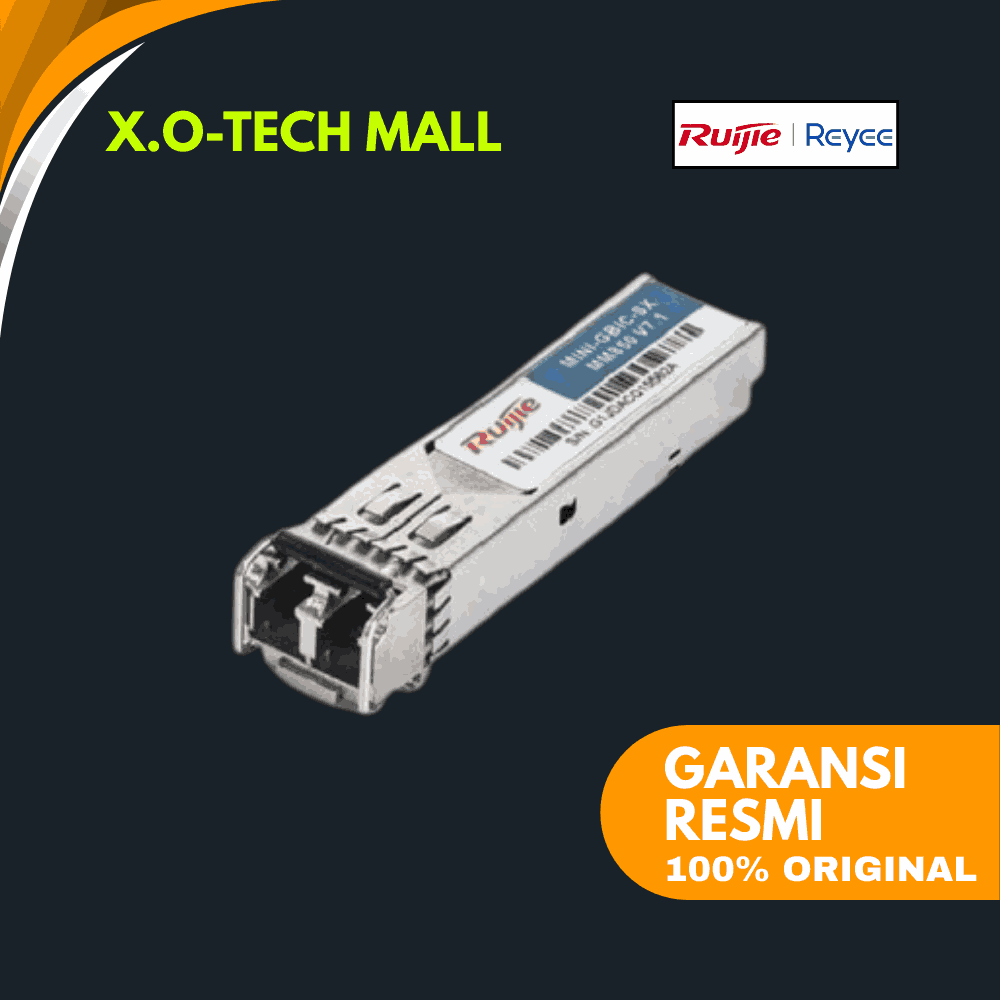

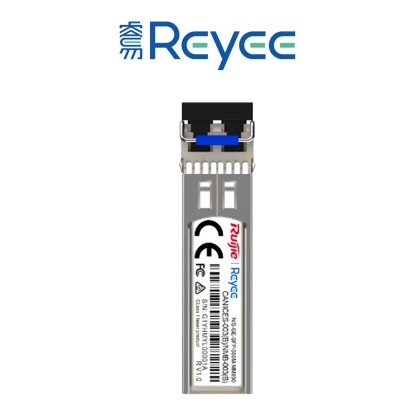

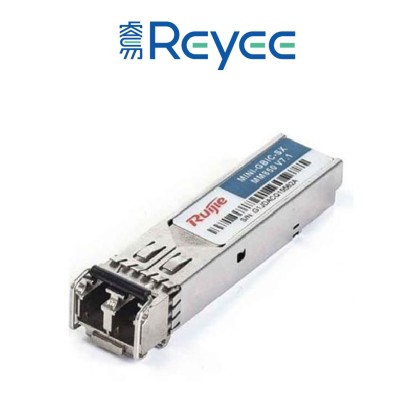

NIS-GE-SFP-550M-MM850
1000BASE-SX Industrial Mini GBIC Transceiver (850nm, 550m)
| Kategori | Detail |
|---|---|
| Standar | 1000BASE-SX (Gigabit Ethernet, short wavelength) SFP form factor (mini-GBIC), hot-swappable |
| Kecepatan & Wavelength | Data Rate: 1000 Mbps Panjang Gelombang: 850 nm |
| Fiber & Jarak | Tipe Fiber: MMF (Multi-Mode Fiber) Core Size: 50/125 µm Jarak Maksimal: 550 m (≈1640 kaki) |
| Optik | Transmitter Power: –9.5 dBm (min) hingga –3 dBm (max) Receiver Sensitivity: –17 dBm (min), 0 dBm (max) Connector: LC duplex |
| Fitur Tambahan | Mendukung DDM (Digital Diagnostic Monitoring) Hot-swappable untuk fleksibilitas Desain industrial-grade |
| Lingkungan Operasional | Suhu Operasional: –40 °C ~ +85 °C Suhu Penyimpanan: –40 °C ~ +85 °C Kelembaban Relatif: 10% ~ 90% (non-condensing) |
| Garansi | Garansi pabrik hingga 5 Tahun |
